AT200L-BLPSKA (1993)
Toyota Celica
(9309-9712)7AFE..ATM
12V 70A

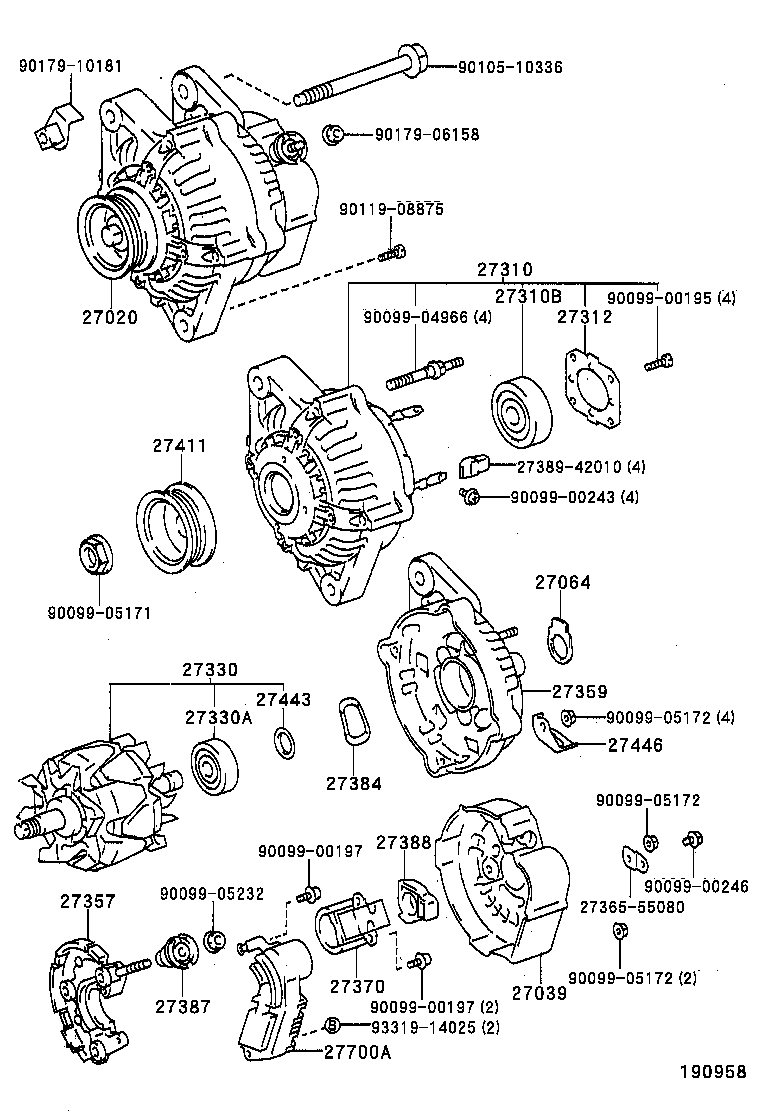

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-15140 |
7AFE..AT200..ATM 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
7AFE..AT200..ATM |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15180 |
7AFE..AT200..ATM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
7AFE..AT200..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-15180 |
7AFE..AT200..ATM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
7AFE..AT200..ATM |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-15170 |
7AFE..AT200 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
5SFE..ST204;7AFE..AT200..ATM |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10336 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10181 | ||||
| 93319-14025 | ||||
(9311- )7AFE
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-15140 |
7AFE..AT200..ATM 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
7AFE..AT200..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15180 |
7AFE..AT200..ATM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
7AFE..AT200..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-15180 |
7AFE..AT200..ATM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
7AFE..AT200..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
7AFE,5SFE..AT200,ST204..ATM |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-15170 |
7AFE..AT200 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
5SFE..ST204;7AFE..AT200..ATM |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 27389-63020 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10336 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10181 | ||||
