AT200L-BLPSKA (1993)
Toyota Celica
Production
Sep 1993
-
Dec 1997
Engine
7AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

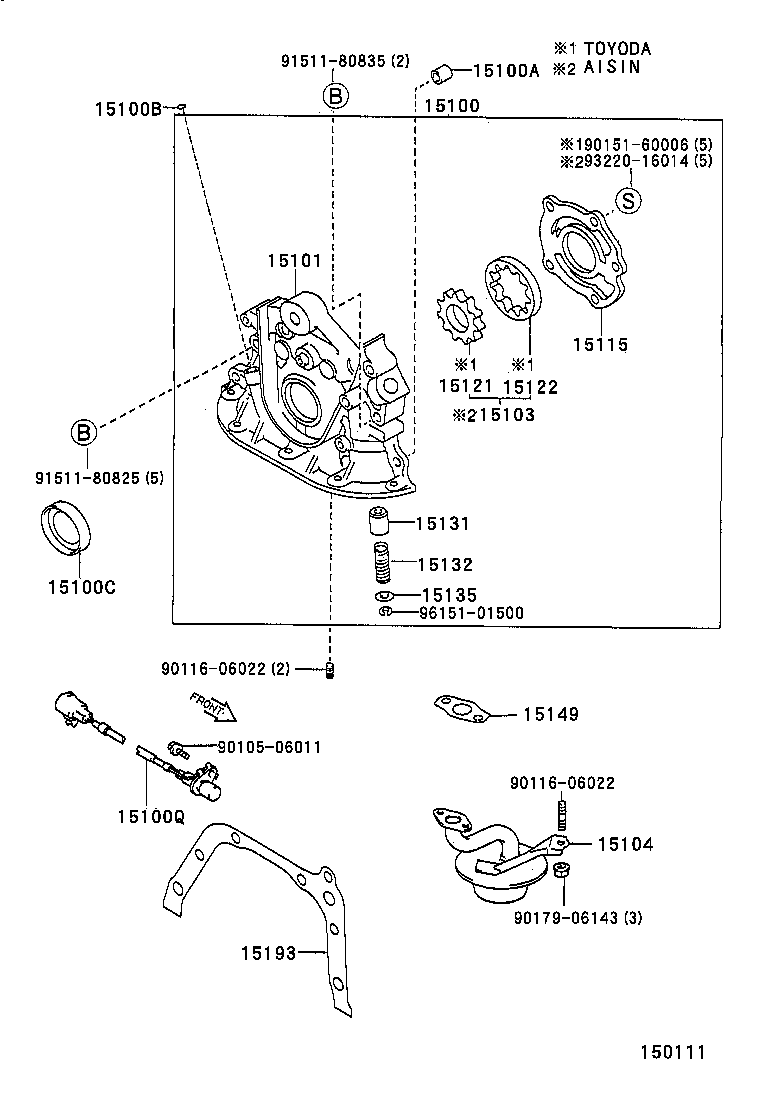

(9309-9712)7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-16040 |
7AFE..AT200 |
1 | ||
| 15100-16070 |
7AFE..AT200 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-11021 |
7AFE..AT200 |
2 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 96721-19010 |
7AFE..AT200 |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90311-32020 |
7AFE..AT200 |
1 | ||
| 90311-32018 |
7AFE..AT200 |
1 | ||
| 15100Q - SENSOR, CRANK POSITION | ||||
| 90919-05011 |
7AFE..AT200 |
1 | ||
| 15101 - BODY SUB-ASSY, OIL PUMP | ||||
| 15101-16050 |
7AFE..AT200 TOYODA KOUKI |
1 | ||
| 15011-16070 |
7AFE..AT200 |
1 | ||
| 15011-16040 |
7AFE..AT200 AISIN SEIKI |
1 | ||
| 15103 - GEAR SET, OIL PUMP | ||||
| 15103-15020 |
7AFE..AT200 |
1 | ||
| 15103-16040 |
7AFE..AT200 |
1 | ||
| 15103 - GEAR SET, OIL PUMP | ||||
| 15103-15020 |
7AFE..AT200 |
1 | ||
| 15103-16040 |
7AFE..AT200 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-16060 |
7AFE..AT200 |
1 | ||
| 15104-16040 |
7AFE..AT200 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-15020 |
7AFE..AT200 |
1 | ||
| 15115-16060 |
7AFE..AT200 TOYODA KOUKI |
1 | ||
| 15115-15020 |
7AFE..AT200 AISIN SEIKI |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-16050 |
7AFE..AT200 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-16050 |
7AFE..AT200 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
7AFE..AT200 AISIN SEIKI |
1 | ||
| 15131-15030 |
7AFE..AT200 TOYODA KOUKI |
1 | ||
| 15131-24010 |
7AFE..AT200 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
7AFE..AT200 |
1 | ||
| 15132-15030 |
7AFE..AT200 TOYODA KOUKI |
1 | ||
| 15132-40010 |
7AFE..AT200 AISIN SEIKI |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-15010 |
7AFE..AT200 AISIN SEIKI |
1 | ||
| 15135-15010 |
7AFE..AT200 |
1 | ||
| 15135-15030 |
7AFE..AT200 TOYODA KOUKI |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-16010 |
7AFE..AT200 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15197-16010 |
7AFE..AT200 |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90116-06022 | ||||
| 90151-60006 | ||||
| 90179-06143 | ||||
| 91511-80825 | ||||
| 91511-80835 | ||||
| 93220-16014 | ||||
| 96151-01500 | ||||

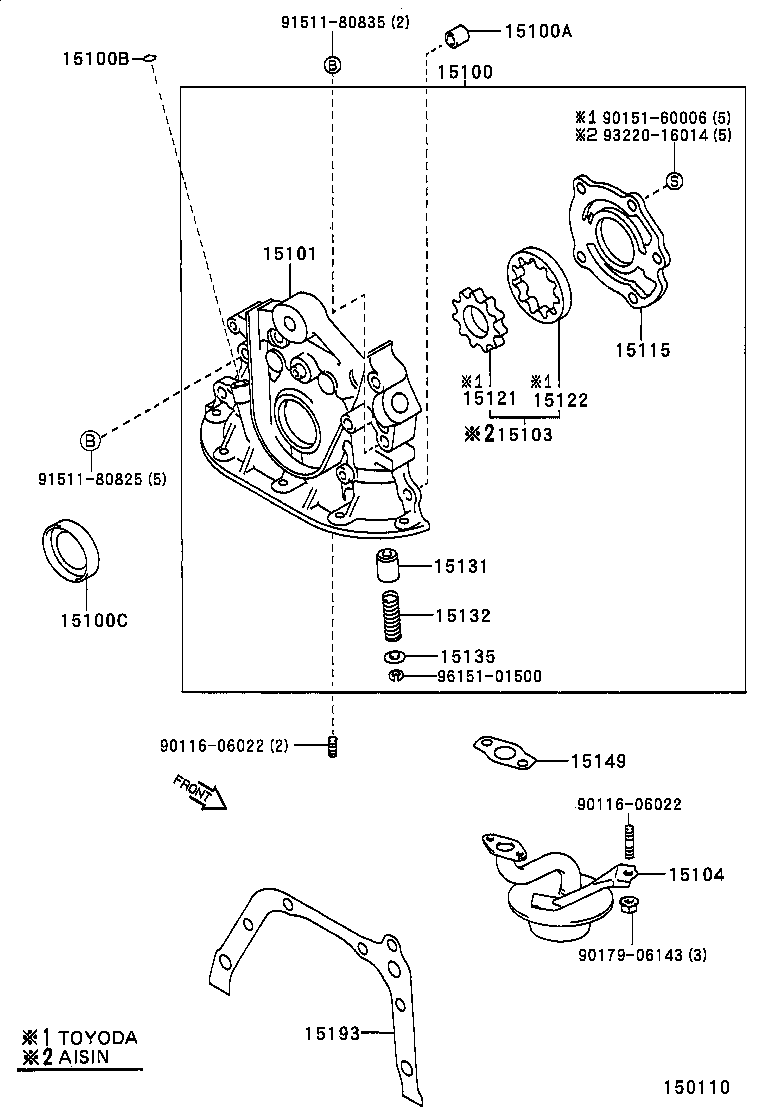

(9311- )7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-06022 | ||||
| 90151-60006 | ||||
| 90179-06143 | ||||
| 91511-80825 | ||||
| 91511-80835 | ||||
| 93220-16014 | ||||
| 96151-01500 | ||||
