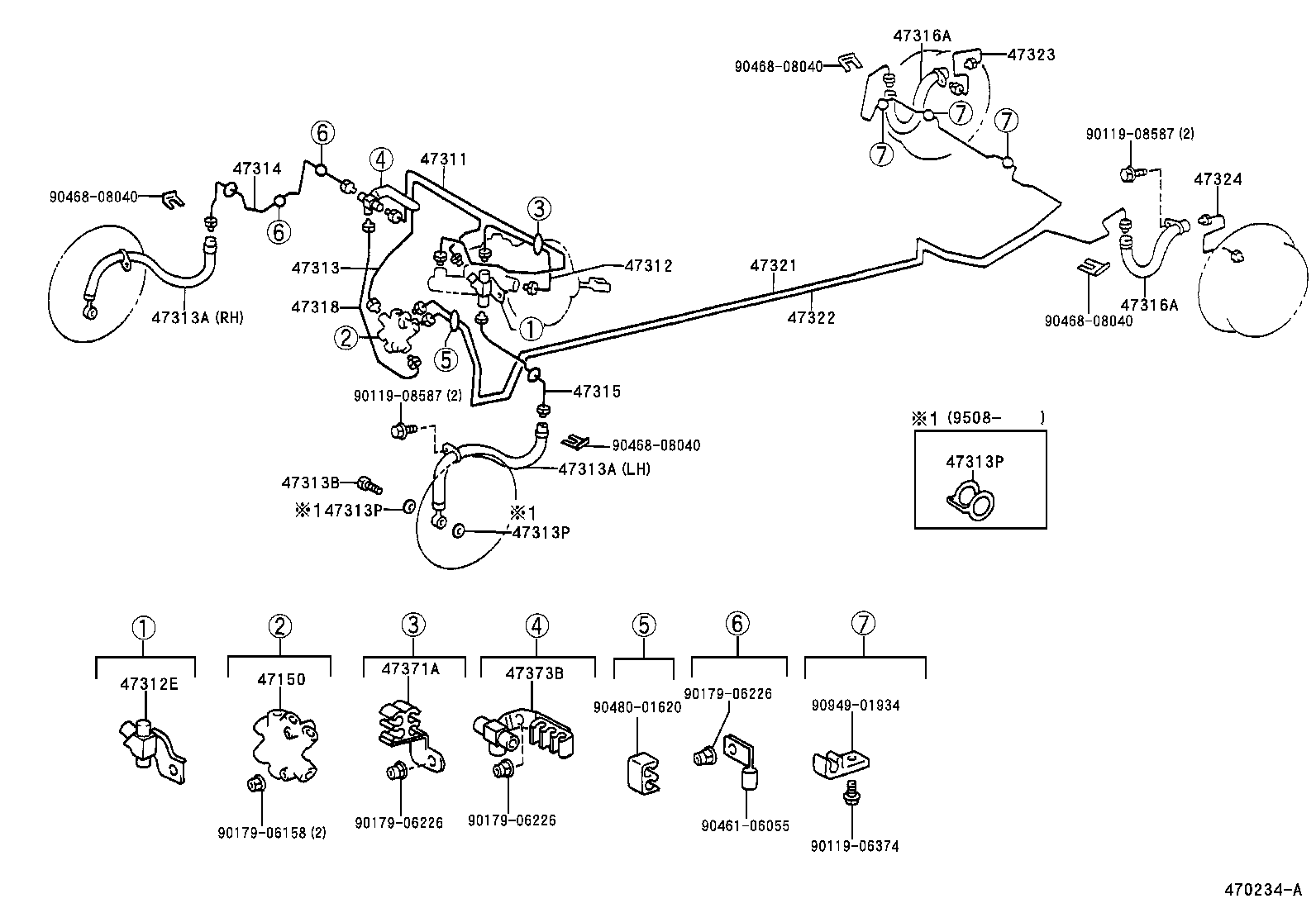

AT200L-BLMSKK (1993)
Toyota Celica
(9309-9712)AT200
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20310 |
AT200 |
1 | ||
| 47150-20370 |
AT200 W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-2B110 |
AT200,ST204 W(ABS) |
1 | ||
| 47311-2B090 |
AT200,ST204 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47311-2B120 |
AT200,ST204 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12015 |
AT200,ST204 W(ABS) |
1 | ||
| 90904-13009 |
AT200,ST204 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20700 |
AT200,ST204 |
1 | ||
| 47313-20720 |
AT200,ST204 W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
AT200,ST204 RH |
1 | ||
| 90947-02847 |
AT200,ST204..CP,LB RH |
1 | ||
| 90947-02848 |
AT200,ST204 LH |
1 | ||
| 90947-02762 |
AT200,ST204 LH |
1 | ||
| 90947-02848 |
AT200,ST204..CP,LB LH |
1 | ||
| 90947-02847 |
AT200,ST204 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
AT200,ST204 RH |
1 | ||
| 90947-02847 |
AT200,ST204..CP,LB RH |
1 | ||
| 90947-02848 |
AT200,ST204 LH |
1 | ||
| 90947-02762 |
AT200,ST204 LH |
1 | ||
| 90947-02848 |
AT200,ST204..CP,LB LH |
1 | ||
| 90947-02847 |
AT200,ST204 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AT200,ST204 |
2 | ||
| 90401-10015 |
AT200,ST204 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT200,ST204 |
2 | ||
| 47389-30010 |
AT200,ST204 |
4 | ||
| 47389-50020 |
AT200,ST204..CP,LB |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT200,ST204 |
2 | ||
| 47389-30010 |
AT200,ST204 |
4 | ||
| 47389-50020 |
AT200,ST204..CP,LB |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT200,ST204 |
2 | ||
| 47389-30010 |
AT200,ST204 |
4 | ||
| 47389-50020 |
AT200,ST204..CP,LB |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20590 |
AT200,ST204 |
1 | ||
| 47314-20610 |
AT200,ST204 W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20640 |
AT200,ST204 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02770 |
AT200 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02770 |
AT200 |
2 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20350 |
AT200,ST204 |
1 | ||
| 47318-20340 |
AT200,ST204 W(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20380 |
AT200,ST204 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20490 |
AT200,ST204 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-20150 |
AT200 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-20150 |
AT200 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20530 |
AT200,ST204 |
1 | ||
| 47371-20440 |
AT200,ST204 W(ABS) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20540 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-08587 | ||||
| 90179-06158 | ||||
| 90179-06226 | ||||
| 90461-06055 | ||||
| 90468-08040 | ||||
| 90480-01620 | ||||
| 90949-01934 | ||||

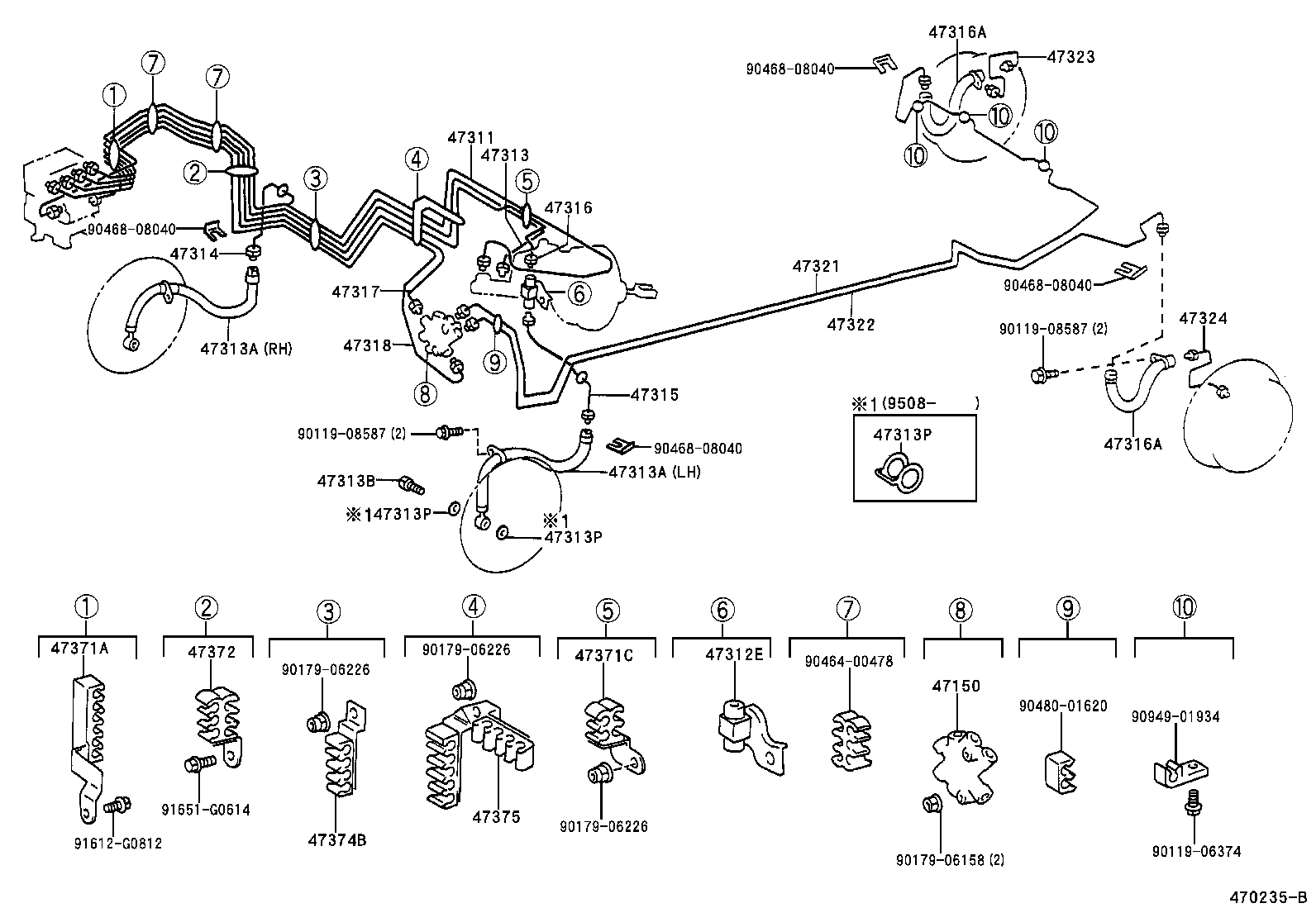

ILLUST NO. 1 OF 2(9309-9606)AT200
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-20310 |
AT200 |
1 | ||
| 47150-20370 |
AT200 W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-2B110 |
AT200,ST204 W(ABS) |
1 | ||
| 47311-2B090 |
AT200,ST204 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12015 |
AT200,ST204 W(ABS) |
1 | ||
| 90904-13009 |
AT200,ST204 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20700 |
AT200,ST204 |
1 | ||
| 47313-20720 |
AT200,ST204 W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
AT200,ST204 RH |
1 | ||
| 90947-02847 |
AT200,ST204..CP,LB RH |
1 | ||
| 90947-02848 |
AT200,ST204 LH |
1 | ||
| 90947-02762 |
AT200,ST204 LH |
1 | ||
| 90947-02848 |
AT200,ST204..CP,LB LH |
1 | ||
| 90947-02847 |
AT200,ST204 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02761 |
AT200,ST204 RH |
1 | ||
| 90947-02847 |
AT200,ST204..CP,LB RH |
1 | ||
| 90947-02848 |
AT200,ST204 LH |
1 | ||
| 90947-02762 |
AT200,ST204 LH |
1 | ||
| 90947-02848 |
AT200,ST204..CP,LB LH |
1 | ||
| 90947-02847 |
AT200,ST204 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AT200,ST204 |
2 | ||
| 90401-10015 |
AT200,ST204 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT200,ST204 |
2 | ||
| 47389-30010 |
AT200,ST204 |
4 | ||
| 47389-50020 |
AT200,ST204..CP,LB |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT200,ST204 |
2 | ||
| 47389-30010 |
AT200,ST204 |
4 | ||
| 47389-50020 |
AT200,ST204..CP,LB |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT200,ST204 |
2 | ||
| 47389-30010 |
AT200,ST204 |
4 | ||
| 47389-50020 |
AT200,ST204..CP,LB |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20590 |
AT200,ST204 |
1 | ||
| 47314-20610 |
AT200,ST204 W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20640 |
AT200,ST204 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20560 |
AT200,ST204 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02770 |
AT200 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02770 |
AT200 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20210 |
AT200,ST204 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20350 |
AT200,ST204 |
1 | ||
| 47318-20340 |
AT200,ST204 W(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20380 |
AT200,ST204 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-20490 |
AT200,ST204 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-20150 |
AT200 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-20150 |
AT200 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20530 |
AT200,ST204 |
1 | ||
| 47371-20440 |
AT200,ST204 W(ABS) |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-20530 |
AT200,ST204 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20550 |
AT200,ST204 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20430 |
AT200,ST204 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20580 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90119-08587 | ||||
| 90179-06158 | ||||
| 90179-06226 | ||||
| 90464-00478 | ||||
| 90468-08040 | ||||
| 90480-01620 | ||||
| 90949-01934 | ||||
| 91612-G0812 | ||||
| 91651-G0614 | ||||
ILLUST NO. 2 OF 2(9309-9606)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-20180 |
AT200 |
1 | ||
| 44510-20140 |
AT200 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AT200,ST204 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AT200,ST204 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AT200,ST204 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
AT200,ST204 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
AT200,ST204 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
AT200,ST204 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-20010 |
AT200,ST204 |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-20080 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08224 | ||||
| 91611-60814 | ||||
ILLUST NO. 2 OF 2(9311-9606)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-20180 |
AT200 |
1 | ||
| 44510-20140 |
AT200 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AT200,ST204 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AT200,ST204 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AT200,ST204 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
AT200,ST204 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
AT200,ST204 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12090 |
AT200,ST204 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-20010 |
AT200,ST204 |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-20080 |
AT200,ST204 |
1 | ||
| Common parts | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08224 | ||||
| 91611-60814 | ||||
