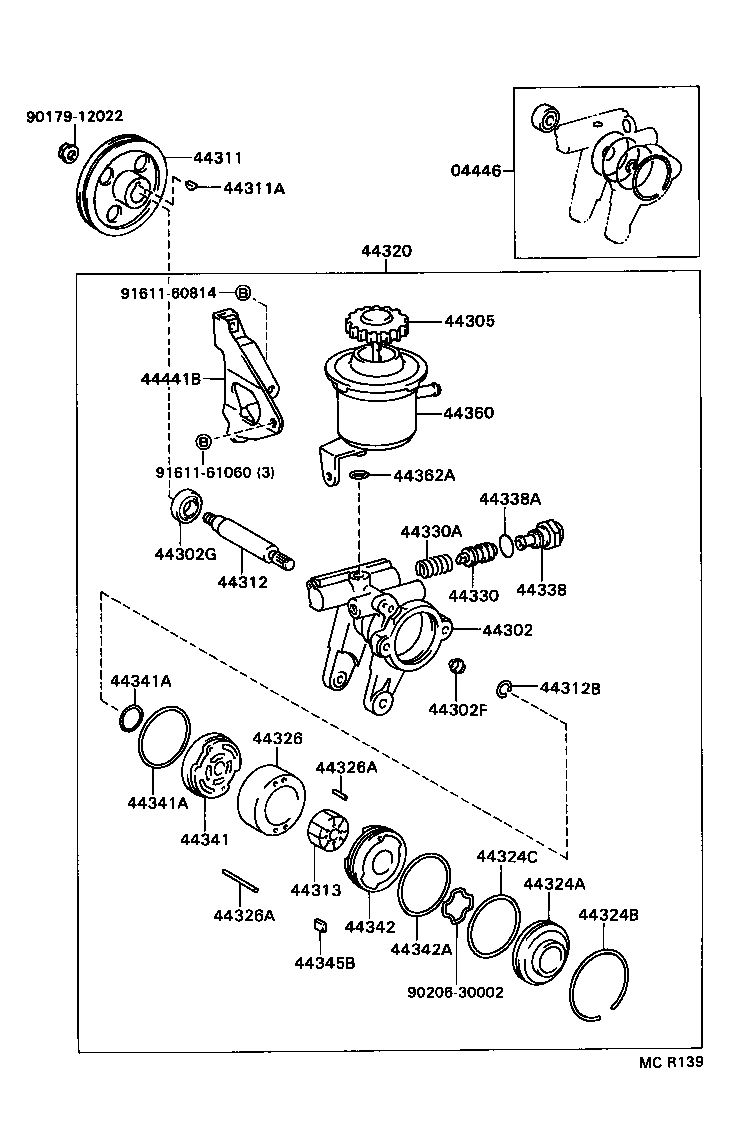

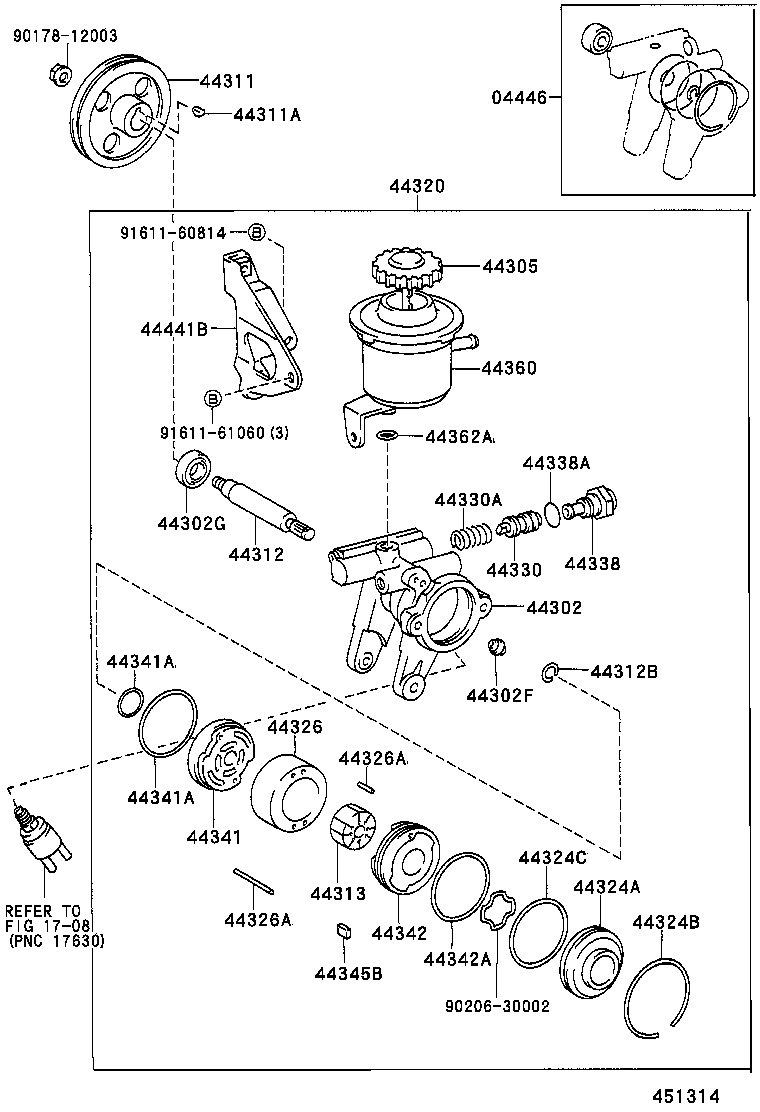

Toyota Celica AT200 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-20030	AT200	09/1993 - 02/1995	1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-12090	AT200	09/1993 - 12/1997	1
44302F - SEAT, UNION(FOR VANE PUMP HOUSING)
90410-05035	AT200,ST204	09/1993 - 12/2999	1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18007	AT200,ST204	09/1993 - 12/2999	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-22040	AT200	09/1993 - 12/1997	1
44311 - PULLEY, VANE PUMP
44311-12040	AT200	09/1993 - 12/1997	1
44311A - KEY, VANE PUMP PULLEY
90280-05008	AT200,ST204	09/1993 - 12/2999	1
44312 - SHAFT, VANE PUMP
44312-12030	AT200,ST204	09/1993 - 12/2999	1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003	AT200,ST204	09/1993 - 12/2999	1
44313 - ROTOR, VANE PUMP
44313-22050	AT200,ST204 MARK 1	09/1993 - 12/2999	1
44313-22070	AT200,ST204 MARK 3	09/1993 - 12/2999	1
44313-22080	AT200,ST204 MARK 4	09/1993 - 12/2999	1
44313-22040	AT200,ST204 NO MARK	09/1993 - 12/2999	1
44313-22060	AT200,ST204 MARK 2	09/1993 - 12/2999	1
44320 - PUMP ASSY, VANE
44320-20430	AT200	09/1993 - 12/1997	1
44324A - HOUSING, PUMP, REAR
44324-12031	AT200	09/1993 - 12/1997	1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90521-62002	AT200,ST204	09/1993 - 12/2999	1
44324C - RING, O(FOR PUMP HOUSING REAR)
90301-52001	AT200	09/1993 - 02/1995	1
90301-53006	AT200,ST204	02/1995 - 12/2999	1
44326 - RING, CAM(FOR VANE PUMP)
44325-12110	AT200,ST204 NO MARK	09/1993 - 12/2999	1
44325-12140	AT200,ST204 MARK 3	09/1993 - 12/2999	1
44325-12130	AT200,ST204 MARK 2	09/1993 - 12/2999	1
44325-12150	AT200,ST204 MARK 4	09/1993 - 12/2999	1
44325-12120	AT200,ST204 MARK 1	09/1993 - 12/2999	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04049	AT200,ST204 L=43,OD=4.0	09/1993 - 12/2999	1
90250-04047	AT200,ST204 L=28,OD=4.0	09/1993 - 12/2999	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04049	AT200,ST204 L=43,OD=4.0	09/1993 - 12/2999	1
90250-04047	AT200,ST204 L=28,OD=4.0	09/1993 - 12/2999	1
44330 - VALVE ASSY, FLOW CONTROL
44330-20260	AT200 MARK B	09/1993 - 12/1997	1
44330-20250	AT200 MARK A	09/1993 - 12/1997	1
44330-20270	AT200 MARK C	09/1993 - 12/1997	1
44330-20300	AT200 MARK F	09/1993 - 12/1997	1
44330-20280	AT200 MARK D	09/1993 - 12/1997	1
44330-20290	AT200 MARK E	09/1993 - 12/1997	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103	AT200,ST204	09/1993 - 12/2999	1
44338 - UNION, PRESSURE PORT
44308-20080	AT200,ST204	09/1993 - 12/2999	1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19003	AT200,ST204 ID=19.5,OD=22.5	09/1993 - 09/1996	1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-32010	AT200	09/1993 - 12/1997	1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-52001	AT200 OUTER	09/1993 - 12/1997	1
90301-25001	AT200 INNER	09/1993 - 12/1997	1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-52001	AT200 OUTER	09/1993 - 12/1997	1
90301-25001	AT200 INNER	09/1993 - 12/1997	1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-32010	AT200	09/1993 - 12/1997	1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-52001	AT200	09/1993 - 12/1997	1
44345B - PLATE, VANE PUMP
44345-12020	AT200,ST204 L=14.995	09/1993 - 12/2999	1
44345-12030	AT200,ST204 L=14.993	09/1993 - 12/2999	1
44345-12010	AT200,ST204 L=14.997	09/1993 - 12/2999	1
44345-12050	AT200,ST204 L=14.989	09/1993 - 12/2999	1
44345-12040	AT200,ST204 L=14.991	09/1993 - 12/2999	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44306-20071	AT200	09/1993 - 12/1997	1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
90301-12003	AT200	09/1993 - 09/1996	1
44441B - BRACKET, PUMP, FRONT
44441-12040	AT200	09/1993 - 12/1997	1
Common parts
90179-12022
90206-30002
91611-60814
91611-61060

AT200L-BLMSKK (1993)

(9309-9712)AT200

(9311- )AT200

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90178-12003
90206-30002
91611-60814
91611-61060
Linked diagrams
1708
