AT200L-BLMSKK (1993)
Toyota Celica
Production
Sep 1993
-
Jun 1996
Engine
7AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9309-9508)7AFE

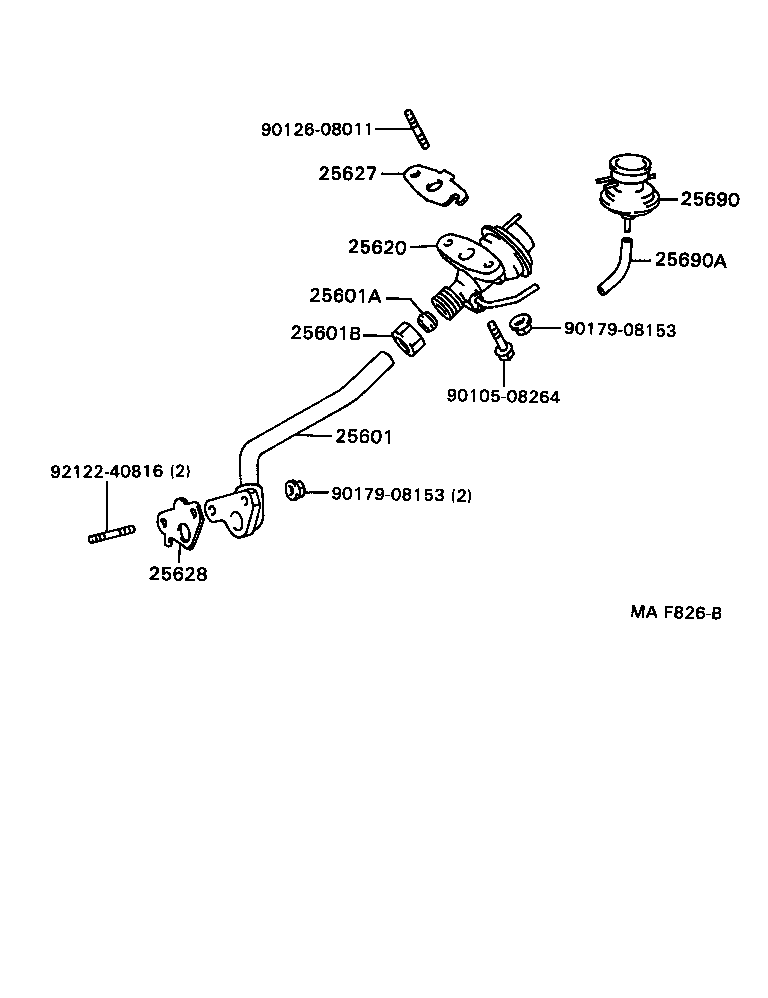

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-16050 |
7AFE..AT200 |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-16001 |
7AFE..AT200 |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-22005 |
7AFE..AT200 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-16210 |
7AFE..AT200..MTM |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-16040 |
7AFE..AT200 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-16030 |
7AFE..AT200 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-16230 |
7AFE..AT200..MTM |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 25695-16070 |
7AFE..AT200 |
1 | ||
| Common parts | ||||
| 90105-08264 | ||||
| 90126-08011 | ||||
| 90179-08153 | ||||
| 92122-40816 | ||||
