AT200L-BLMSKK (1993)
Toyota Celica
(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
7AFE..AT200 |
1 | ||

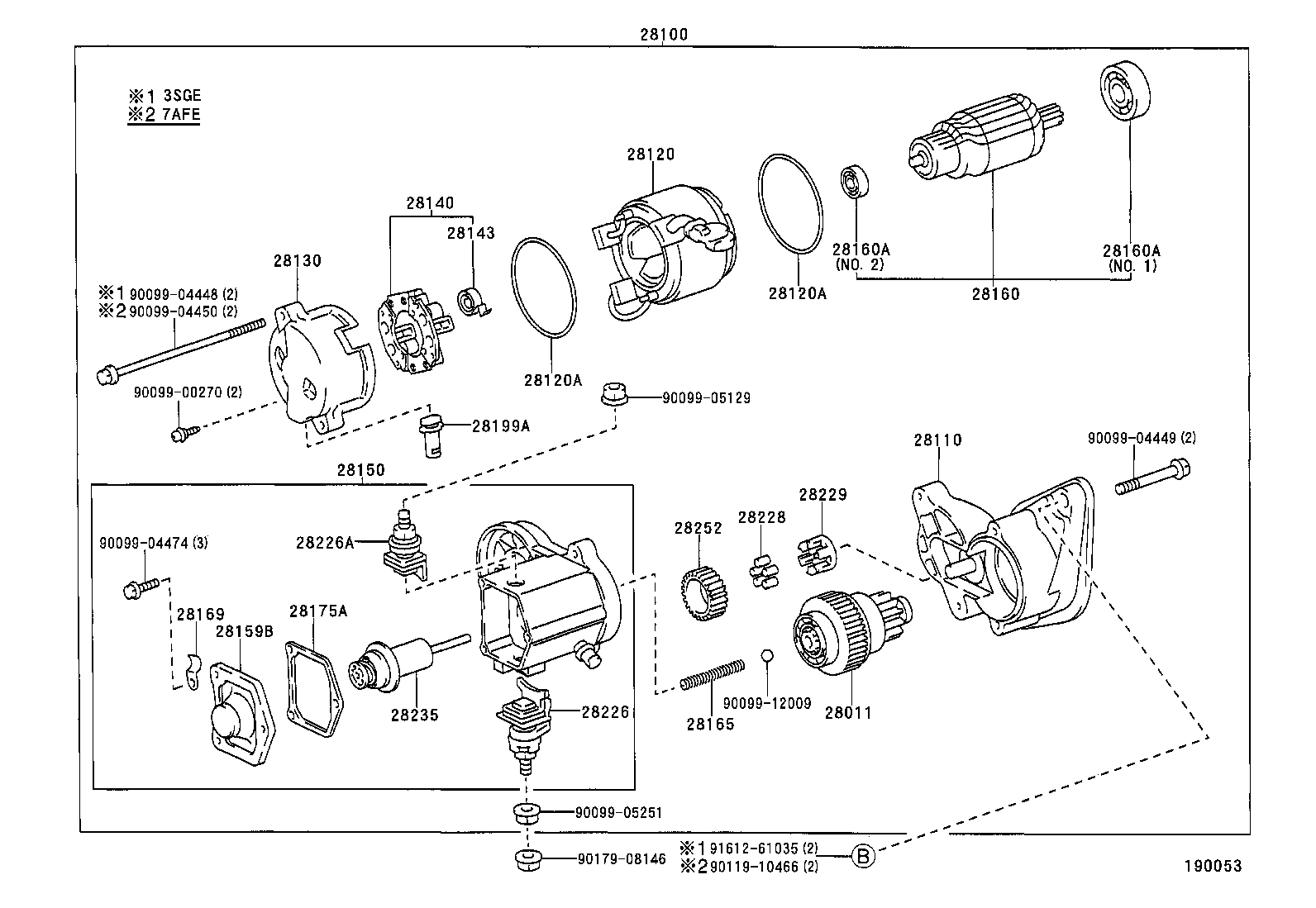

| 28100 - STARTER ASSY | ||||
| 28100-16240 |
7AFE..AT200 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-16130 |
7AFE..AT200 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-74070 |
7AFE,5SFE..AT200,ST204 12V 1.4KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
7AFE,5SFE..AT200,ST204 |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
7AFE,5SFE..AT200,ST204 |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-16130 |
7AFE..AT200 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76070 |
7AFE..AT200 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-76060 |
7AFE..AT200 12V 1.2KW |
4 | ||
| 90099-17112 |
7AFE..AT200;5SFE..ST204..GT 12V 1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-16270 |
7AFE..AT200 12V 1.4KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
7AFE..AT200;5SFE..ST204..GT 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
7AFE,5SFE..AT200,ST204 NO.1 |
1 | ||
| 90099-10196 |
7AFE,5SFE..AT200,ST204 NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
7AFE,5SFE..AT200,ST204 NO.1 |
1 | ||
| 90099-10196 |
7AFE,5SFE..AT200,ST204 NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
7AFE..AT200 |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-55050 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-74110 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-55050 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-74070 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
7AFE,5SFE..AT200,ST204 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-55050 |
7AFE..AT200 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-74070 |
7AFE,5SFE..AT200,ST204 |
1 | ||
| Common parts | ||||
| 90099-00270 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04450 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||
| 91612-61035 | ||||
(9311- )7AFE
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90096-90030 | ||||
| 90099-00270 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04373 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(9311- )7AFE,3SGE
12V 1.2KW,1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00270 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04450 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||
| 91612-61035 | ||||
