AT200L-BLMSKK (1993)
Toyota Celica
Production
Sep 1993
-
Jun 1996
Engine
7AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9309- )7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|

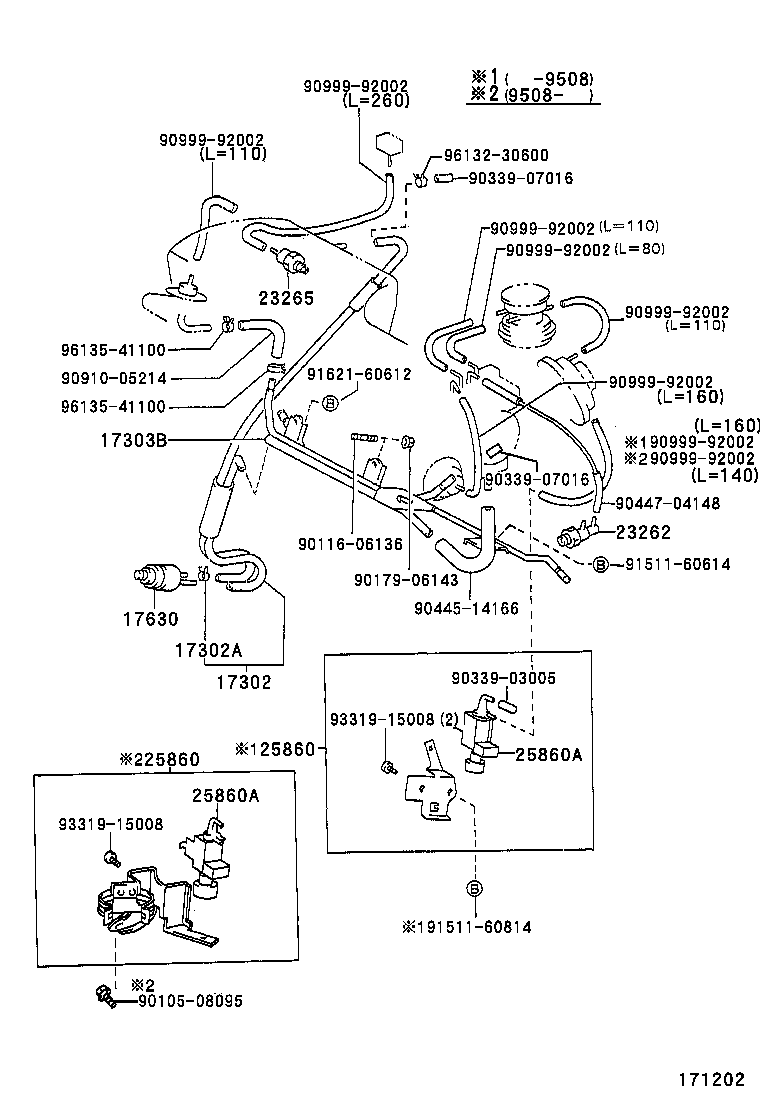

(9309-9712)7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-15010 |
7AFE..AT200 |
1 | ||
| 17302A - CLIP, HOSE | ||||
| 96132-51000 |
7AFE..AT200 |
2 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-15060 |
7AFE..AT200 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15080 |
7AFE..AT200 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05068 |
7AFE..AT200 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
7AFE..AT200 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-16160 |
7AFE..AT200 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-16160 |
7AFE..AT200 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12141 |
7AFE..AT200 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12141 |
7AFE..AT200 |
1 | ||
| Common parts | ||||
| 90105-08095 | ||||
| 90116-06136 | ||||
| 90179-06143 | ||||
| 90339-03005 | ||||
| 90339-07016 | ||||
| 90445-14166 | ||||
| 90447-04148 | ||||
| 90910-05214 | ||||
| 90999-92002 | ||||
| 91511-60614 | ||||
| 91511-60814 | ||||
| 91621-60612 | ||||
| 93319-15008 | ||||
| 96132-30600 | ||||
| 96135-41100 | ||||

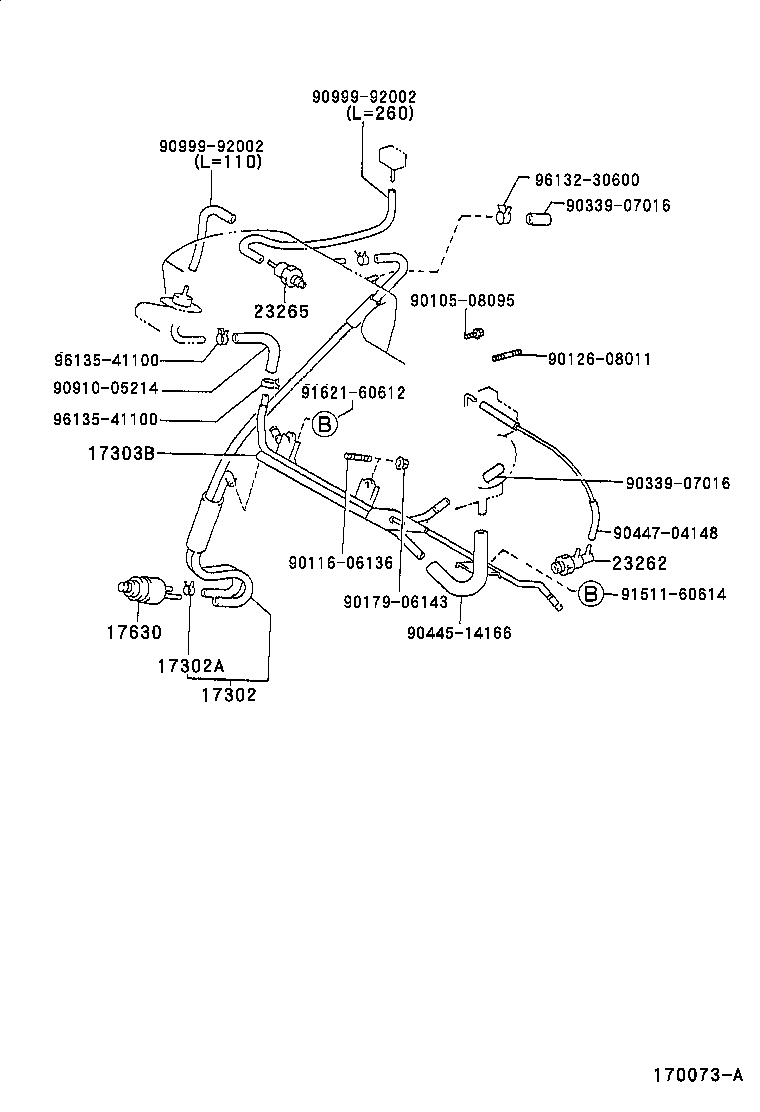

(9311- )7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(9311- )7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08095 | ||||
| 90116-06136 | ||||
| 90126-08011 | ||||
| 90179-06143 | ||||
| 90339-07016 | ||||
| 90445-14166 | ||||
| 90447-04148 | ||||
| 90910-05214 | ||||
| 90999-92002 | ||||
| 91511-60614 | ||||
| 91621-60612 | ||||
| 96132-30600 | ||||
| 96135-41100 | ||||
