AT200L-BLMSKA (1993)
Toyota Celica

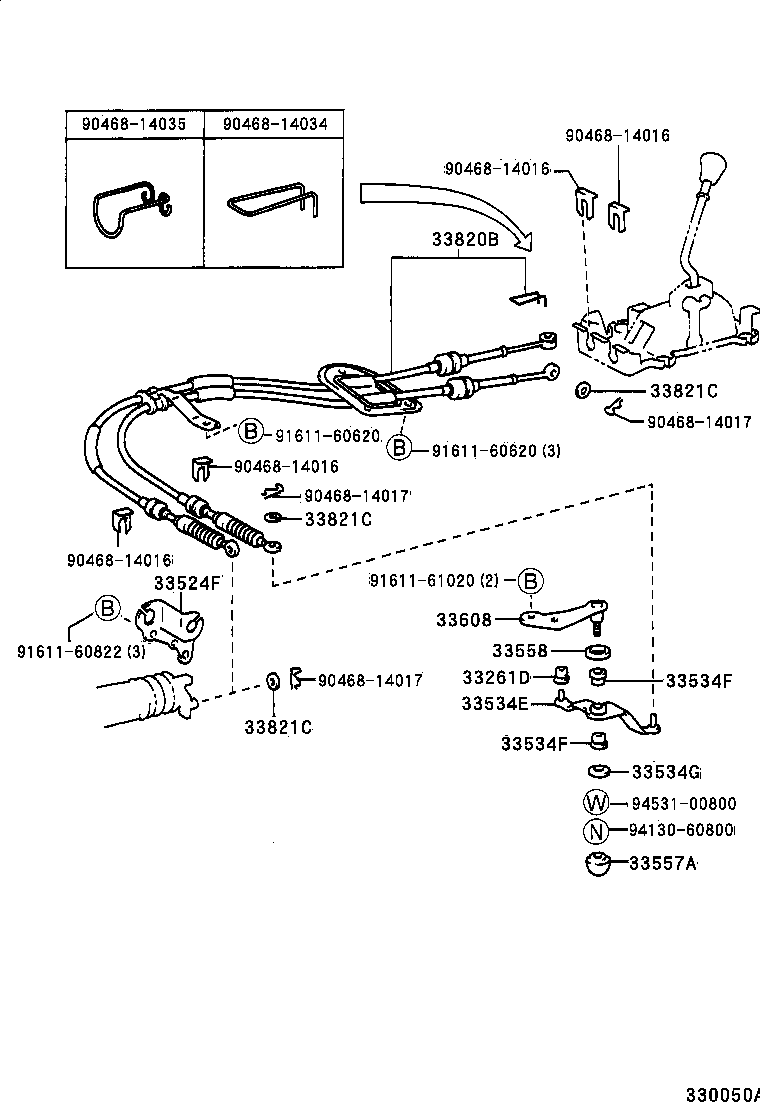

ILLUST NO. 2 OF 2(9309-9712)AT200..MTM
C56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
AT200..MTM |
1 | ||
| 33557-33010 |
AT200..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-12011 |
AT200..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16051 |
AT200..MTM |
1 | ||
| 33534-16050 |
AT200..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT200,ST204..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT200,ST204..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT200,ST204..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AT200,ST204..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AT200,ST204..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AT200..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-16020 |
AT200..MTM |
1 | ||
| 33608-16021 |
AT200..MTM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-2B310 |
AT200..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10113 |
AT200,ST204..MTM OD=18,SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
AT200,ST204..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-08267 |
AT200,ST204..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10113 |
AT200,ST204..MTM OD=18,SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
AT200,ST204..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-08267 |
AT200,ST204..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10113 |
AT200,ST204..MTM OD=18,SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
AT200,ST204..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-08267 |
AT200,ST204..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14034 | ||||
| 90468-14035 | ||||
| 91611-60620 | ||||
| 91611-60822 | ||||
| 91611-61020 | ||||
| 94110-40800 | ||||
| 94130-60800 | ||||
| 94511-00800 | ||||
| 94531-00800 | ||||
ILLUST NO. 1 OF 2(9309- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-17071C0 |
AT200,ST204..(CP,LB)..MTM LEATHER,BLACK,TRIM0#,2# |
1 | ||
| 33504-17061C0 |
AT200,ST204..(CP,LB)..MTM BLACK,TRIM0#,2# |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-20651 |
AT200,ST204..MTM |
1 | ||
| 33530-20650 |
AT200,ST204..MTM |
1 | ||
| Common parts | ||||
| 91635-60835 | ||||
ILLUST NO. 2 OF 2(9311- )AT200
C52
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
AT200..MTM |
1 | ||
| 33557-33010 |
AT200..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-12011 |
AT200..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16051 |
AT200..MTM |
1 | ||
| 33534-16050 |
AT200..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT200,ST204..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT200,ST204..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AT200,ST204..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AT200,ST204..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AT200,ST204..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AT200..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-16020 |
AT200..MTM |
1 | ||
| 33608-16021 |
AT200..MTM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-2B310 |
AT200..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10113 |
AT200,ST204..MTM OD=18,SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
AT200,ST204..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-08267 |
AT200,ST204..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10113 |
AT200,ST204..MTM OD=18,SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
AT200,ST204..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-08267 |
AT200,ST204..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10113 |
AT200,ST204..MTM OD=18,SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
AT200,ST204..MTM OD=30,TRANSAXLE SIDE |
2 | ||
| 90201-08267 |
AT200,ST204..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14034 | ||||
| 90468-14035 | ||||
| 91611-60620 | ||||
| 91611-60822 | ||||
| 91611-61020 | ||||
| 94110-40800 | ||||
| 94130-60800 | ||||
| 94511-00800 | ||||
| 94531-00800 | ||||
ILLUST NO. 1 OF 2(9311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-17071C0 |
AT200,ST204..(CP,LB)..MTM LEATHER,BLACK,TRIM0#,2# |
1 | ||
| 33504-17061C0 |
AT200,ST204..(CP,LB)..MTM BLACK,TRIM0#,2# |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-20651 |
AT200,ST204..MTM |
1 | ||
| 33530-20650 |
AT200,ST204..MTM |
1 | ||
| Common parts | ||||
| 91635-60835 | ||||
