AT200L-BCPSKA (1993)
Toyota Celica
Production
Sep 1993
-
Dec 1997
Engine
7AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9309-9712)AT200

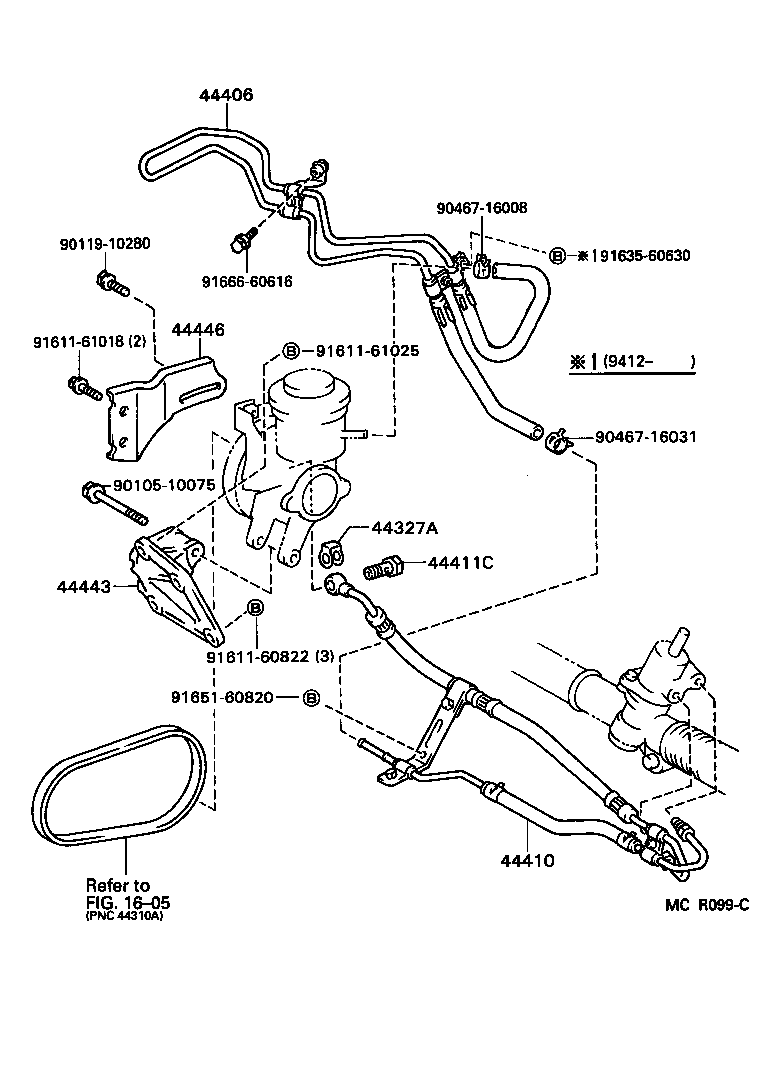

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
AT200,ST204 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-20620 |
AT200 |
1 | ||
| 44406-20621 |
AT200 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-2B020 |
AT200 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
AT200,ST204 |
1 | ||
| 96341-41603 |
AT200,ST204 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12050 |
AT200 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-12090 |
AT200 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-10280 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 91611-60822 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91635-60630 | ||||
| 91651-60820 | ||||
| 91666-60616 | ||||
| Linked diagrams | ||||
| 1605 | ||||
