AT200L-BCMSKA (1993)
Toyota Celica

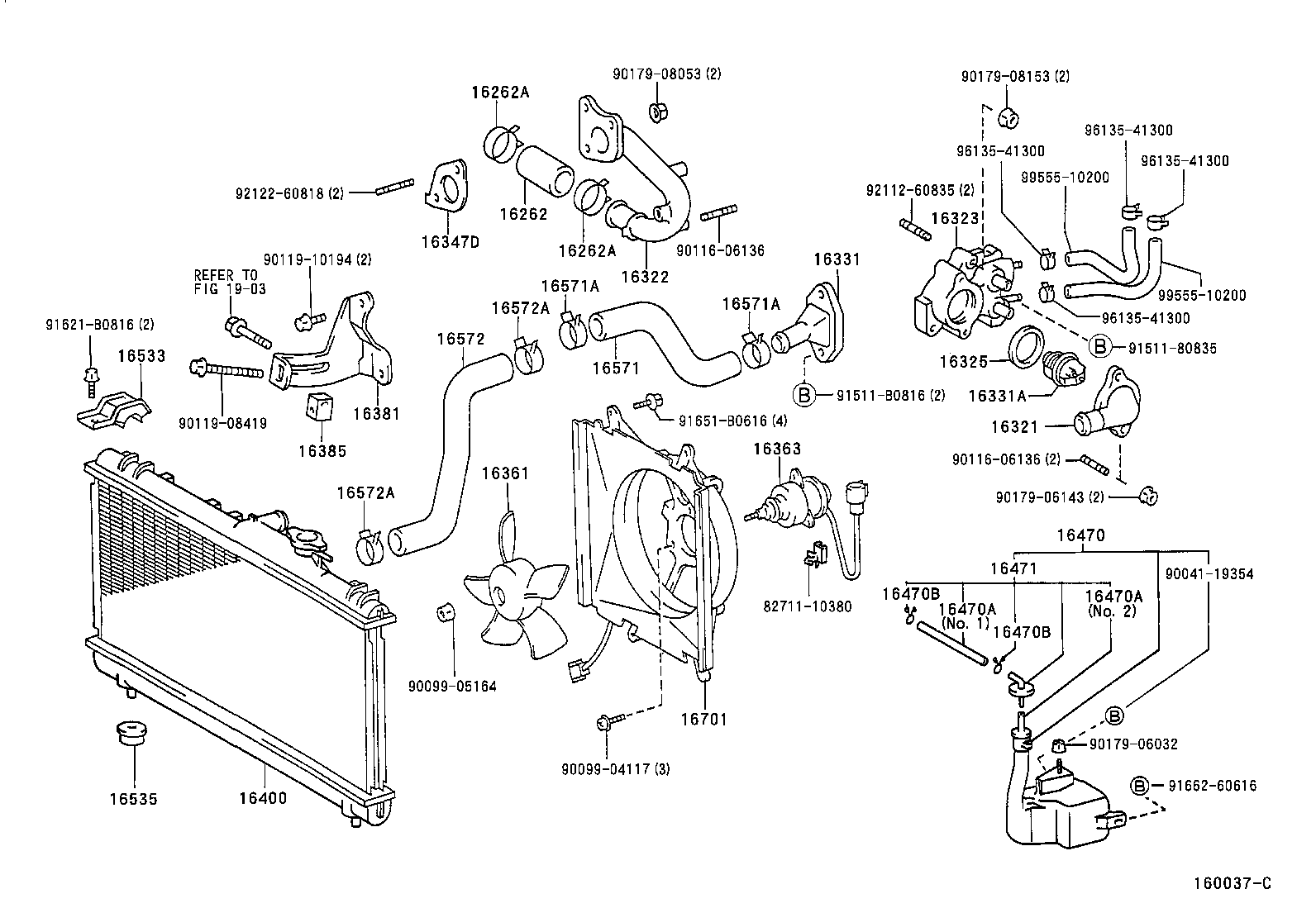

ILLUST NO. 1 OF 2(9309-9712)7AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-15040 |
7AFE..AT200 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
7AFE..AT200 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
7AFE..AT200 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-15040 |
7AFE..AT200 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-16060 |
7AFE..AT200 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-16420 |
7AFE..AT200 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
7AFE..AT200 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
7AFE..AT200 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
7AFE..AT200 *WAX 82-95 |
1 | ||
| 90916-03109 |
7AFE..AT200 *WAX 82-95 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-15010 |
7AFE..AT200 |
1 | ||
| 16361 - FAN | ||||
| 16361-74060 |
7AFE..AT200 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-11020 |
7AFE..AT200 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15080 |
7AFE..AT200 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-15020 |
7AFE..AT200 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-16530 |
7AFE..AT200..MTM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74260 |
7AFE..AT200 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12066 |
7AFE..AT200 *H,L=300,NO.2 |
1 | ||
| 90445-12078 |
7AFE..AT200 *H,L=210,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12066 |
7AFE..AT200 *H,L=300,NO.2 |
1 | ||
| 90445-12078 |
7AFE..AT200 *H,L=210,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
7AFE..AT200 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
7AFE..AT200 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74250 |
7AFE..AT200 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74260 |
7AFE..AT200 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90916-04002 |
7AFE..AT200 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-16240 |
7AFE..AT200 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
7AFE..AT200 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
7AFE..AT200 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-16200 |
7AFE..AT200 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
7AFE..AT200 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
7AFE..AT200 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74500 |
7AFE..AT200 |
1 | ||
| 16711-74501 |
7AFE..AT200 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90041-19354 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90116-06136 | ||||
| 90119-08419 | ||||
| 90119-10194 | ||||
| 90179-06032 | ||||
| 90179-06143 | ||||
| 90179-08053 | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91511-B0816 | ||||
| 91621-B0816 | ||||
| 91651-B0616 | ||||
| 91662-60616 | ||||
| 92112-60835 | ||||
| 92122-B0820 | ||||
| 96135-41300 | ||||
| 99555-10200 | ||||
| Linked diagrams | ||||
| 1903 | ||||

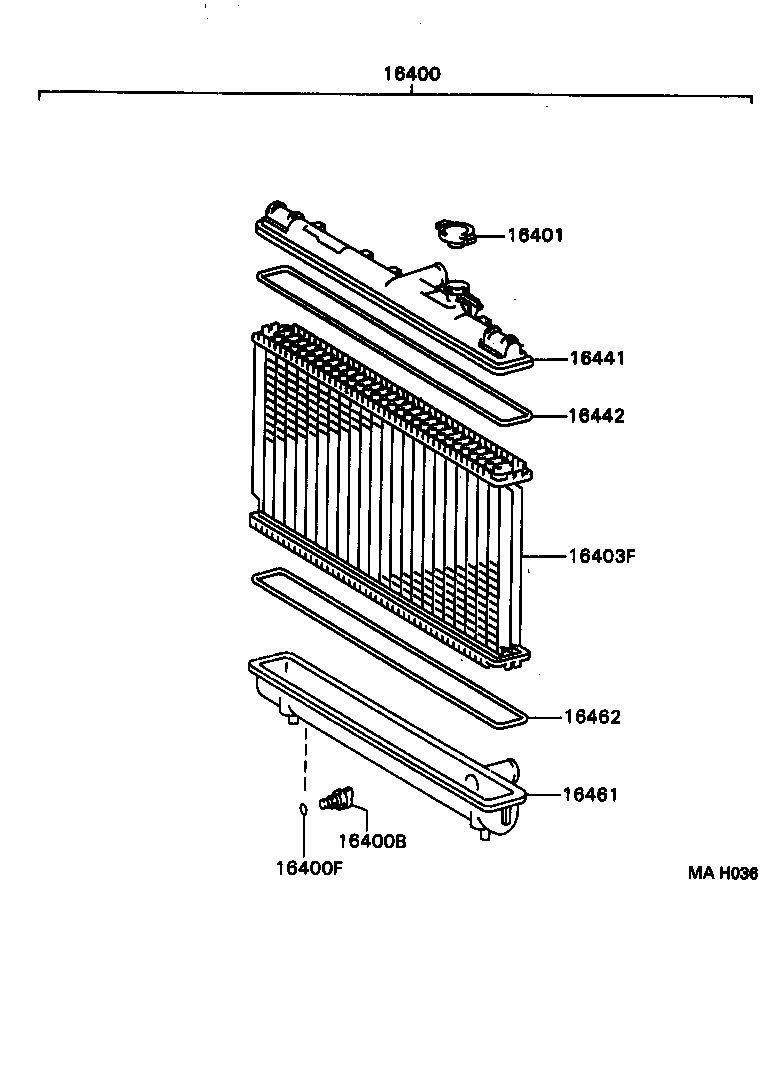

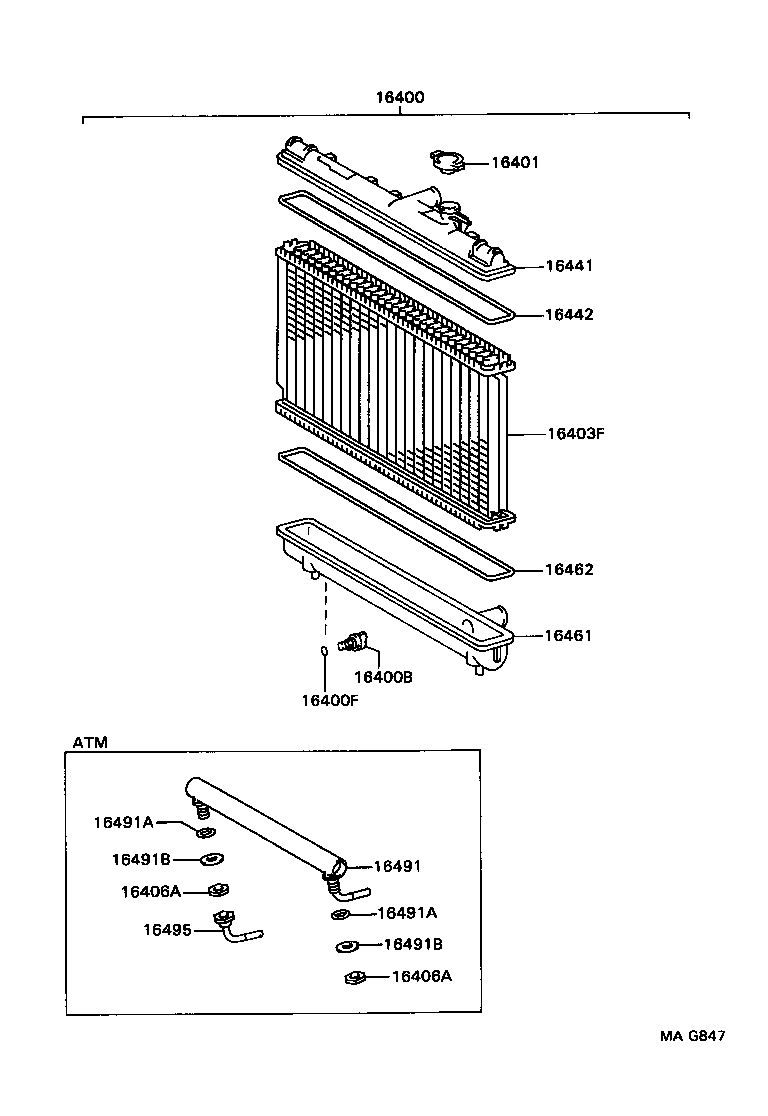

ILLUST NO. 2 OF 2(9309-9712)7AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-16530 |
7AFE..AT200..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
7AFE..AT200 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
7AFE..AT200 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
7AFE..AT200 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-7A061 |
7AFE..AT200..MTM |
1 | ||
| 16403-7A060 |
7AFE..AT200..MTM |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-7A060 |
7AFE..AT200..MTM |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-11380 |
7AFE..AT200..MTM |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-16530 |
7AFE..AT200..MTM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-42240 |
7AFE..AT200 |
1 | ||
ILLUST NO. 1 OF 2(9311- )7AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10380 | ||||
| 90041-19354 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90116-06136 | ||||
| 90119-08419 | ||||
| 90119-10194 | ||||
| 90179-06032 | ||||
| 90179-06143 | ||||
| 90179-08053 | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91511-B0816 | ||||
| 91621-B0816 | ||||
| 91651-B0616 | ||||
| 91662-60616 | ||||
| 92112-60835 | ||||
| 92122-60818 | ||||
| 96135-41300 | ||||
| 99555-10200 | ||||
| Linked diagrams | ||||
| 1903 | ||||
ILLUST NO. 2 OF 2(9311- )7AFE
| Part # | Description | Qty | Price |
|---|
