AT200L-BCMSKA (1993)
Toyota Celica
Production
Sep 1993
-
Dec 1997
Engine
7AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

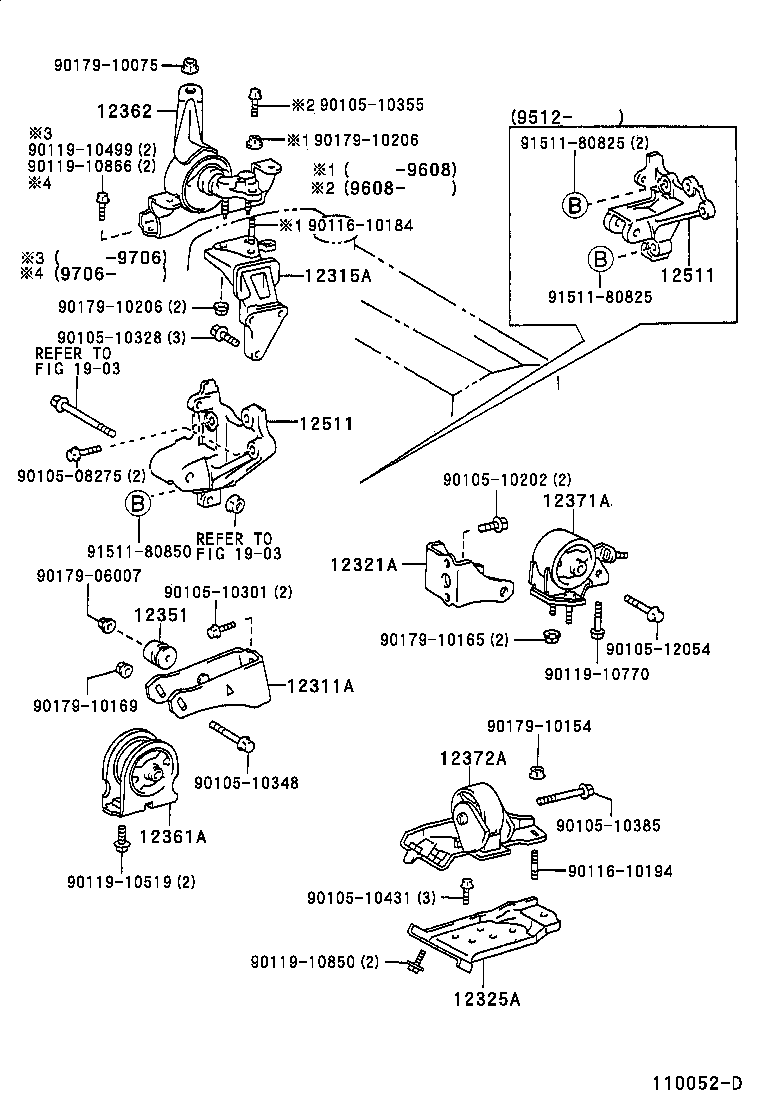

(9309-9712)7AFE..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-16160 |
7AFE..AT200 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-16061 |
7AFE..AT200 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-16320 |
7AFE..AT200..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-16120 |
7AFE..AT200..MTM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
7AFE..AT200 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74400 |
7AFE..AT200..MTM |
1 | ||
| 12361-74340 |
7AFE..AT200..MTM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12305-16090 |
7AFE..AT200 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74410 |
7AFE..AT200..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-16330 |
7AFE..AT200..MTM |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-16110 |
7AFE..AT200 |
1 | ||
| 12511-16100 |
7AFE..AT200 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-16110 |
7AFE..AT200 |
1 | ||
| 12511-16100 |
7AFE..AT200 |
1 | ||
| Common parts | ||||
| 90105-08275 | ||||
| 90105-10202 | ||||
| 90105-10301 | ||||
| 90105-10328 | ||||
| 90105-10348 | ||||
| 90105-10355 | ||||
| 90105-10385 | ||||
| 90105-10431 | ||||
| 90105-12054 | ||||
| 90116-10184 | ||||
| 90116-10194 | ||||
| 90119-10499 | ||||
| 90119-10519 | ||||
| 90119-10770 | ||||
| 90119-10850 | ||||
| 90119-10866 | ||||
| 90179-06007 | ||||
| 90179-10075 | ||||
| 90179-10154 | ||||
| 90179-10165 | ||||
| 90179-10169 | ||||
| 90179-10206 | ||||
| 91511-80825 | ||||
| 91511-80850 | ||||
| Linked diagrams | ||||
| 1903 | ||||
(9311- )7AFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08275 | ||||
| 90105-10202 | ||||
| 90105-10301 | ||||
| 90105-10328 | ||||
| 90105-10348 | ||||
| 90105-10355 | ||||
| 90105-10385 | ||||
| 90105-10431 | ||||
| 90105-12054 | ||||
| 90116-10184 | ||||
| 90116-10194 | ||||
| 90119-10499 | ||||
| 90119-10519 | ||||
| 90119-10770 | ||||
| 90119-10850 | ||||
| 90119-10866 | ||||
| 90119-10875 | ||||
| 90179-06007 | ||||
| 90179-10075 | ||||
| 90179-10154 | ||||
| 90179-10165 | ||||
| 90179-10169 | ||||
| 90179-10206 | ||||
| 90182-10003 | ||||
| 91511-80825 | ||||
| 91511-80850 | ||||
| Linked diagrams | ||||
| 1903 | ||||
