AT180L-BCPSKK (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
4AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

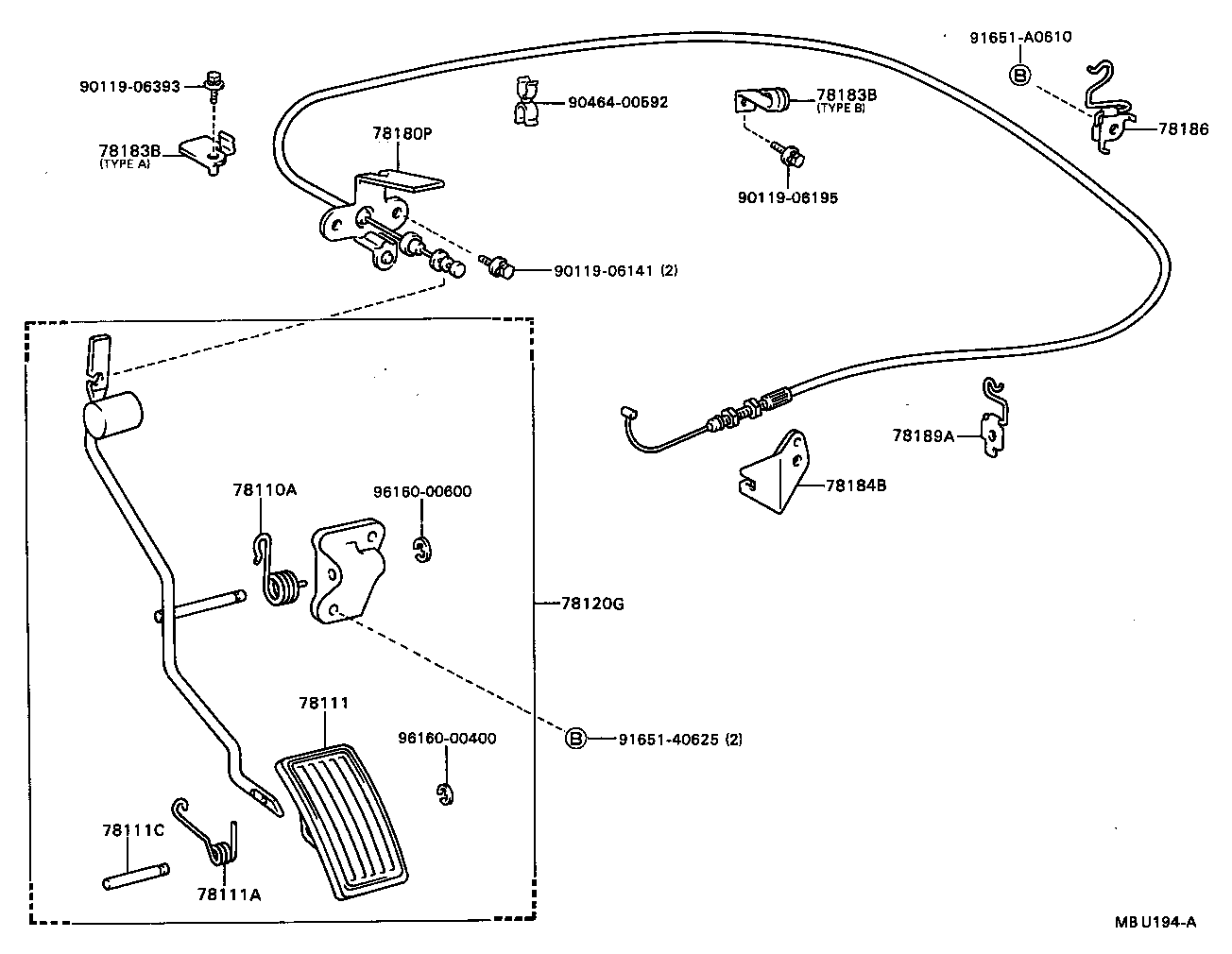

(8909- )AT180
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-20060 |
AT180,ST184 |
1 | ||
| 78100-20060 |
AT180;ST184..(CVT,LB)..GT |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18054 |
AT180,ST184..ATM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
AT180,ST18# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AT180,ST18# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT180,ST18# |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-20170 |
AT180,ST184 |
1 | ||
| 78113-20170 |
AT180;ST184..(CVT,LB)..GT |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-12010 |
AT180;ST184..(CVT,LB)..GT |
1 | ||
| 78118-12010 |
AT180,ST184 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20430 |
AT180,ST184..ATM |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-20160 |
AT180 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2B470 |
AT180 |
1 | ||
| 78180-2B490 |
AT180 W(CRUISE CONTROL) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2B470 |
AT180 |
1 | ||
| 78180-2B490 |
AT180 W(CRUISE CONTROL) |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20040 |
AT180 TYPE A |
1 | ||
| 78183-20140 |
AT180 TYPE B |
1 | ||
| 78183-20160 |
AT180 W(CRUISE CONTROL) |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20040 |
AT180 TYPE A |
1 | ||
| 78183-20140 |
AT180 TYPE B |
1 | ||
| 78183-20160 |
AT180 W(CRUISE CONTROL) |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20040 |
AT180 TYPE A |
1 | ||
| 78183-20140 |
AT180 TYPE B |
1 | ||
| 78183-20160 |
AT180 W(CRUISE CONTROL) |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12260 |
AT180 |
1 | ||
| 78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78185-20090 |
AT180 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-20130 |
AT180 |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78186-12260 |
AT180 |
1 | ||
| Common parts | ||||
| 90119-06141 | ||||
| 90119-06195 | ||||
| 90119-06393 | ||||
| 90159-50263 | ||||
| 90205-05002 | ||||
| 90464-00592 | ||||
| 91651-40625 | ||||
| 91651-A0610 | ||||
| 91651-A0612 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||

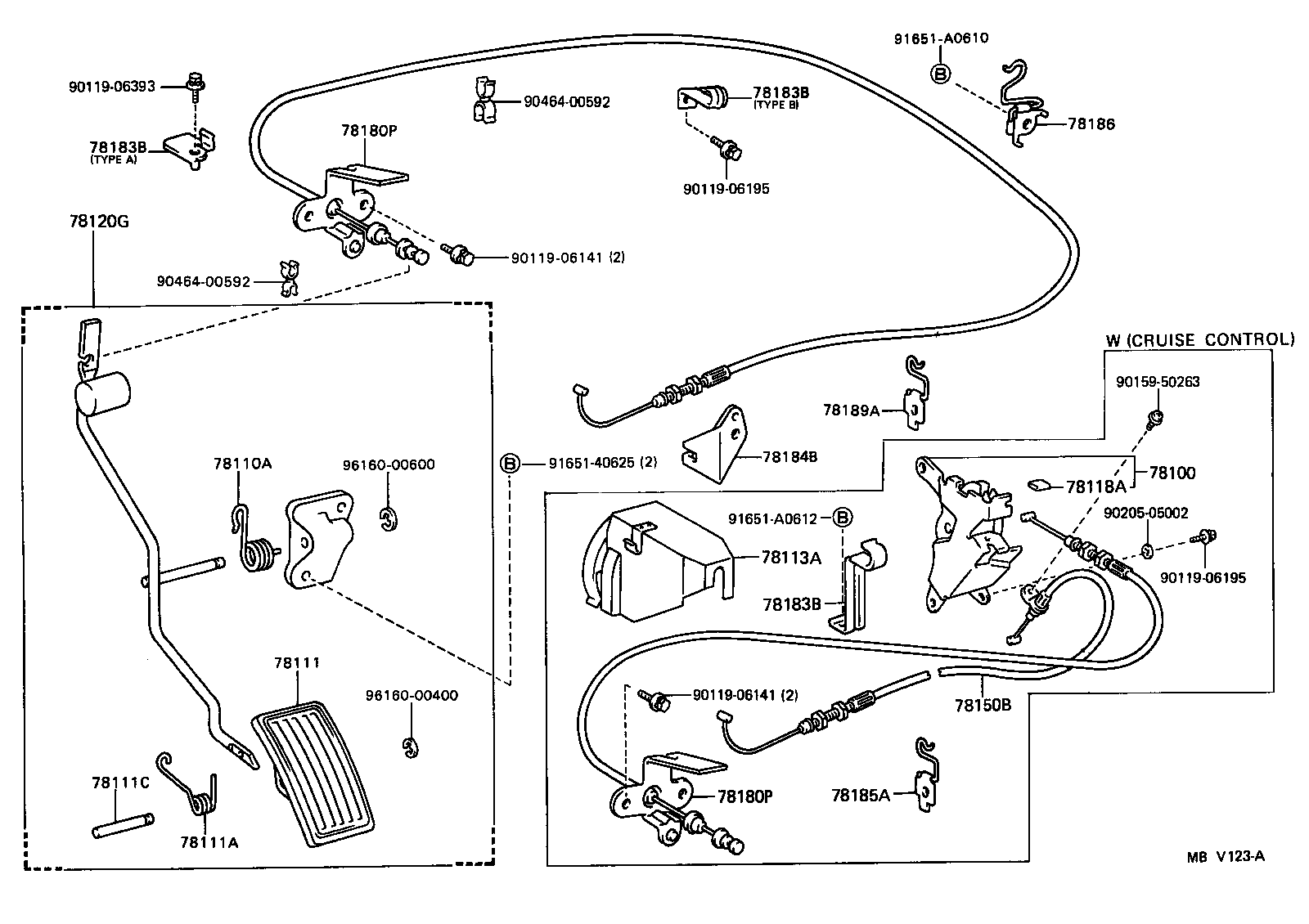

(8910- )AT180
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06141 | ||||
| 90119-06195 | ||||
| 90119-06393 | ||||
| 90464-00592 | ||||
| 91651-40625 | ||||
| 91651-A0610 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
