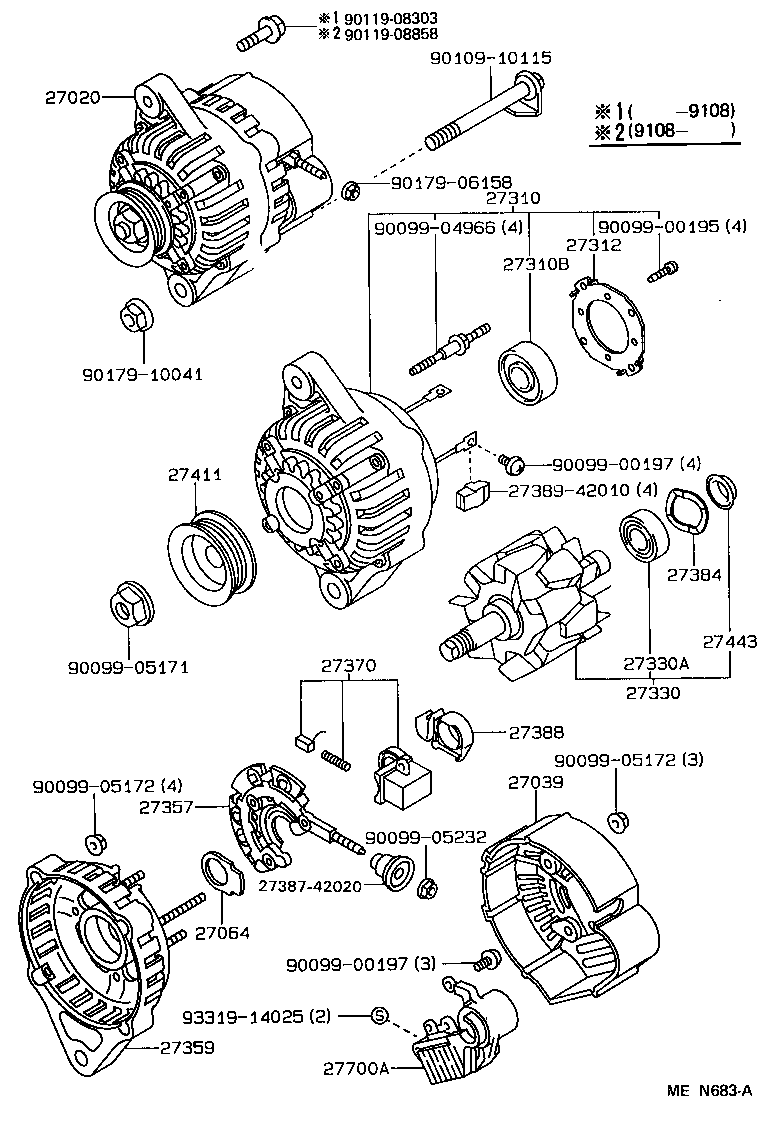

AT180L-BCPSKA (1989)
Toyota Celica
(8909- )4AFE..ATM
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16230 |
4AFE..AT180..ATM 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
4AFE..AT180..ATM |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16260 |
4AFE..AT180..ATM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3SGTE..ST185;4AFE..AT180..ATM |
1 | ||
| 90099-10192 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 90099-10192 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..(CP,LB)..ATM |
1 | ||
| 90099-10160 |
4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42010 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27330-76030 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4AFE,3SGTE,5SFE..AT180,ST18# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-62040 |
4AFE..AT180..ATM |
1 | ||
| 27357-74050 |
4AFE..AT180..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16260 |
4AFE..AT180..ATM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..(CP,LB)..ATM |
1 | ||
| 27370-75060 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27370-42010 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27370-75060 |
4AFE..AT180..ATM |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
4AFE..AT180..ATM |
1 | ||
| 27384-42010 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27384-50030 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..(CP,LB)..ATM |
1 | ||
| 27384-50030 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16270 |
4AFE..AT180..ATM |
1 | ||
| 27411-16260 |
4AFE..AT180..ATM |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4AFE,3SGTE,5SFE..AT180,ST18# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
4AFE..AT180 |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90109-10115 | ||||
| 90119-08303 | ||||
| 90119-08858 | ||||
| 90179-06158 | ||||
| 90179-10041 | ||||
| 93319-14025 | ||||

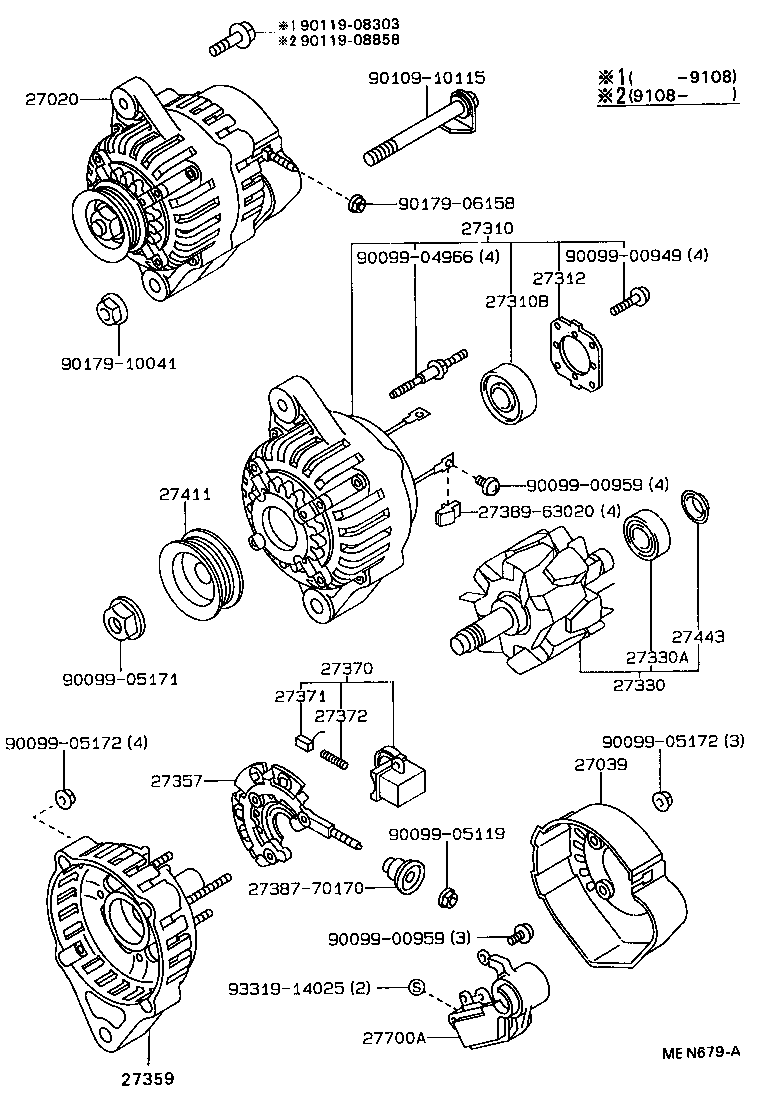

(8910- )4AFE
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16230 |
4AFE..AT180..ATM 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
4AFE..AT180..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16260 |
4AFE..AT180..ATM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3SGTE..ST185;4AFE..AT180..ATM |
1 | ||
| 90099-10192 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 90099-10192 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..(CP,LB)..ATM |
1 | ||
| 90099-10160 |
4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42010 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27330-76030 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4AFE,3SGTE,5SFE..AT180,ST18# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-62040 |
4AFE..AT180..ATM |
1 | ||
| 27357-74050 |
4AFE..AT180..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16260 |
4AFE..AT180..ATM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..(CP,LB)..ATM |
1 | ||
| 27370-75060 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27370-42010 |
3SGTE..ST185;4AFE,5SFE..AT180,ST184..ATM |
1 | ||
| 27370-75060 |
4AFE..AT180..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16270 |
4AFE..AT180..ATM |
1 | ||
| 27411-16260 |
4AFE..AT180..ATM |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4AFE,3SGTE,5SFE..AT180,ST18# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
4AFE..AT180 |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90109-10115 | ||||
| 90119-08303 | ||||
| 90119-08858 | ||||
| 90179-06158 | ||||
| 90179-10041 | ||||
| 93319-14025 | ||||
