AT180L-BCPSKA (1989)

Toyota Celica

Production Sep 1989 - Sep 1993
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

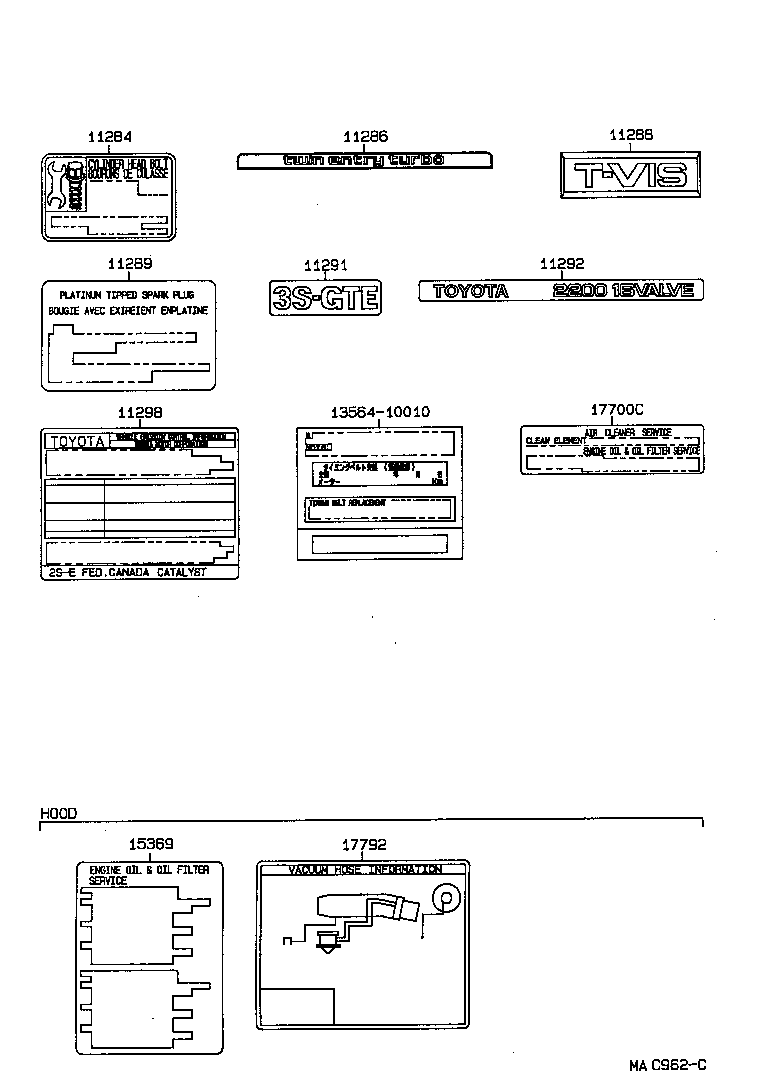

Click highlighted areas on diagram

diagram 11284 11286 11288 11289 11291 11292 11298 1356410010 15369 17700C 17792
Part # Description Qty Price
11284 - PLATE, ENGINE BOLT INFORMATION
11284-15010

4AFE..AT180

 1
11291 - PLATE, ENGINE NAME
11291-15140

4AFE..AT180

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-1A080

4AFE..AT180

 1
11298-1A090

4AFE..AT180..USA

CALIFORNIA SPEC

 1
11298-1A200

4AFE..AT180

 1
11298-1A210

4AFE..AT180..USA

CALIFORNIA SPEC

 1
11298-1A290

4AFE..AT180

 1
11298-1A300

4AFE..AT180..USA

CALIFORNIA SPEC

 1
11298-1A301

4AFE..AT180..USA

CALIFORNIA SPEC

 1
11298-1A291

4AFE..AT180

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-16500

4AFE..AT180

 1
17792-16501

4AFE..AT180

 1
17792-16502

4AFE..AT180

 1
Common parts
13564-10010

(8910- )

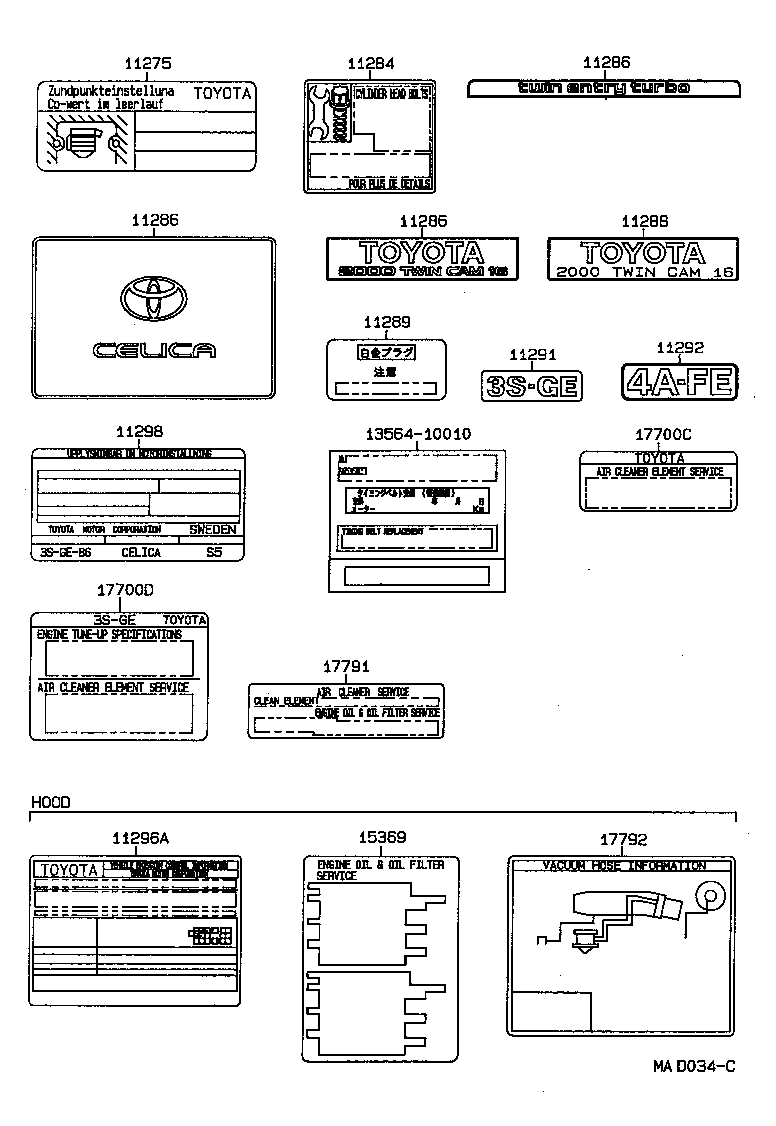

Click highlighted areas on diagram

diagram 11275 11284 11286 11286 11286 11288 11289 11291 11292 11296A 11298 1356410010 15369 17700C 17700D 17791 17792
Part # Description Qty Price
Common parts
13564-10010
