AT180L-BCMSKA (1989)
Toyota Celica

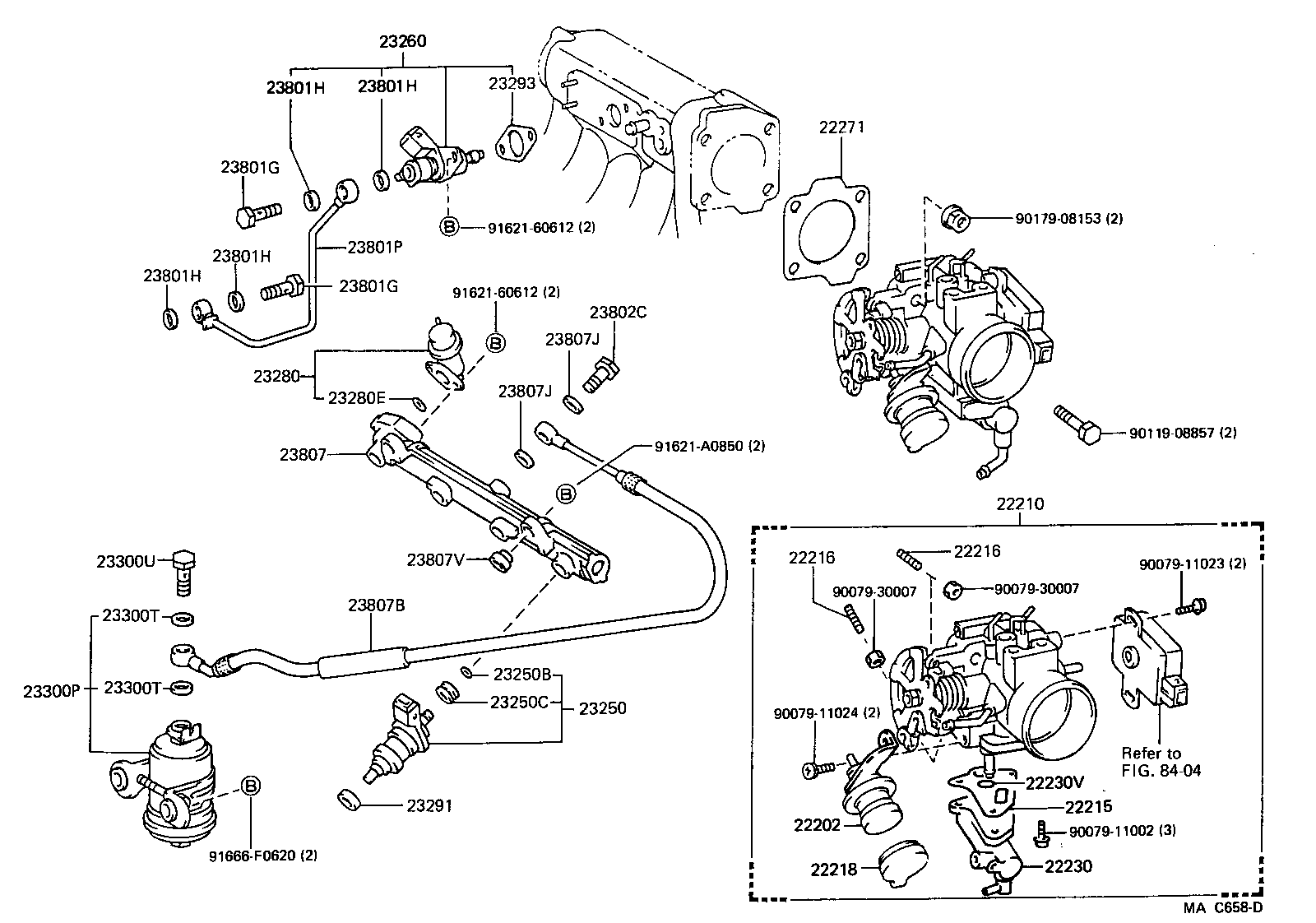

ILLUST NO. 1 OF 2(8909- )4AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22202 - DASH POT SUB-ASSY | ||||
| 22202-15020 |
4AFE..AT180 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16490 |
4AFE..AT180..MTM |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-15010 |
4AFE..AT180 |
1 | ||
| 22215-15011 |
4AFE..AT180 |
1 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
4AFE..AT180 |
2 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
4AFE..AT180 |
2 | ||
| 22218 - COVER(FOR THROTTLE BODY) | ||||
| 22218-16330 |
4AFE..AT180 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-16200 |
4AFE..AT180..MTM |
1 | ||
| 22230V - RING, O(FOR AUXILIARY AIR VALVE) | ||||
| 96711-19009 |
4AFE..AT180 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-15010 |
4AFE..AT180 |
1 | ||
| 22271-15011 |
4AFE..AT180 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-16120 |
4AFE..AT180 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
4AFE..AT180 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
4AFE..AT180 |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-19105 |
4AFE..AT180 |
1 | ||
| 23260-19106 |
4AFE..AT180 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-16120 |
4AFE..AT180 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
4AFE..AT180 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
4AFE..AT180 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-62020 |
4AFE..AT180 |
1 | ||
| 23293-74010 |
4AFE..AT180 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19225 |
4AFE..AT180 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
4AFE..AT180 |
2 | ||
| 90430-12026 |
4AFE..AT180 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
4AFE..AT180 |
2 | ||
| 90430-12026 |
4AFE..AT180 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4AFE..AT180 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
4AFE..AT180 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-08003 |
4AFE..AT180 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AFE..AT180 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AFE..AT180 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AFE..AT180 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-08005 |
4AFE..AT180 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-16040 |
4AFE..AT180 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
4AFE..AT180 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-16110 |
4AFE..AT180 |
1 | ||
| 23814-15030 |
4AFE..AT180 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-16130 |
4AFE..AT180 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
4AFE..AT180 |
2 | ||
| 90201-12109 |
4AFE..AT180 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
4AFE..AT180 |
2 | ||
| 90201-12109 |
4AFE..AT180 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08021 |
4AFE..AT180 |
2 | ||
| Common parts | ||||
| 90079-11002 | ||||
| 90079-11023 | ||||
| 90079-11024 | ||||
| 90079-30007 | ||||
| 90119-08857 | ||||
| 90179-08153 | ||||
| 91621-60612 | ||||
| 91621-A0850 | ||||
| 91666-F0620 | ||||
| Linked diagrams | ||||
| 8404 | ||||

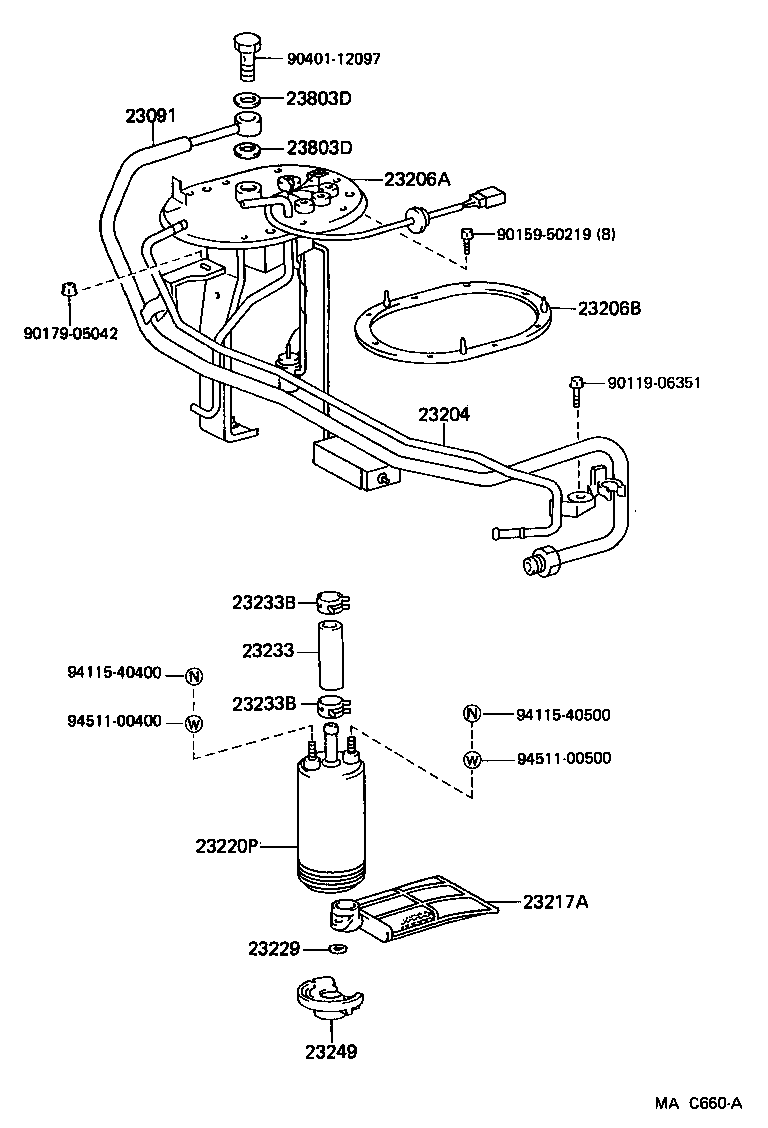

ILLUST NO. 2 OF 2(8909- )4AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74150 |
4AFE..AT180 |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-74501 |
4AFE..AT180 |
1 | ||
| 23204-74510 |
4AFE..AT180 |
1 | ||
| 23204-74501 |
4AFE..AT180 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74510 |
4AFE..AT180 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-20040 |
4AFE..AT180 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74500 |
4AFE..AT180 |
1 | ||
| 23217-74501 |
4AFE..AT180 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-16390 |
4AFE..AT180 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4AFE..AT180 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
4AFE..AT180 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4AFE..AT180 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4AFE..AT180 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
4AFE..AT180 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
4AFE..AT180 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
4AFE..AT180 |
2 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90401-12097 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
ILLUST NO. 2 OF 2(8910- )4AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74150 |
4AFE..AT180 |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-74501 |
4AFE..AT180 |
1 | ||
| 23204-74510 |
4AFE..AT180 |
1 | ||
| 23204-74501 |
4AFE..AT180 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74510 |
4AFE..AT180 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-20040 |
4AFE..AT180 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74500 |
4AFE..AT180 |
1 | ||
| 23217-74501 |
4AFE..AT180 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-16390 |
4AFE..AT180 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4AFE..AT180 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
4AFE..AT180 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4AFE..AT180 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4AFE..AT180 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
4AFE..AT180 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
4AFE..AT180 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-12026 |
4AFE..AT180 |
2 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90159-50219 | ||||
| 90159-60070 | ||||
| 90179-05042 | ||||
| 90401-12097 | ||||
| 90467-12056 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

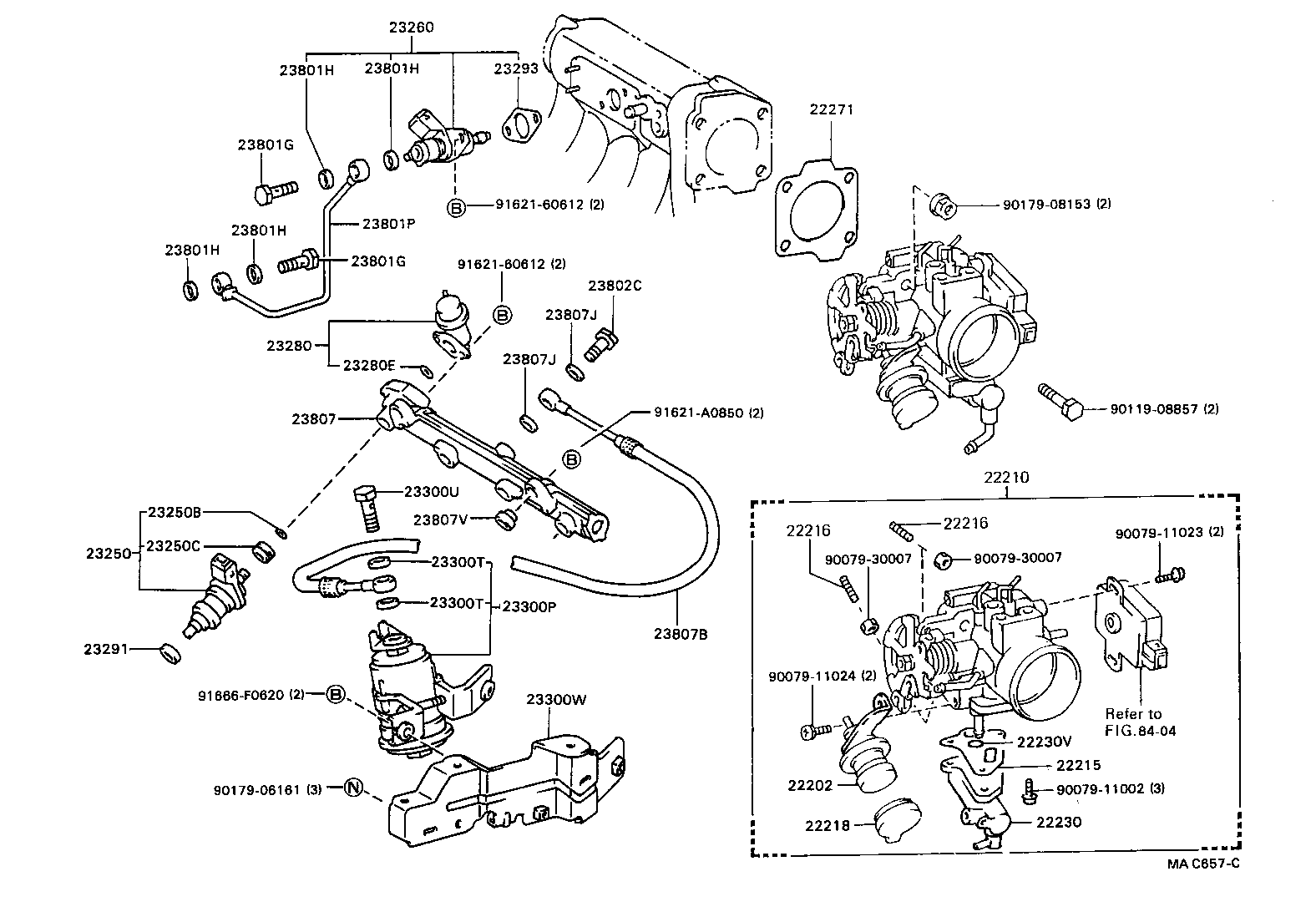

ILLUST NO. 1 OF 2(8910- )4AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90079-11002 | ||||
| 90079-11023 | ||||
| 90079-11024 | ||||
| 90079-30007 | ||||
| 90119-08857 | ||||
| 90179-06161 | ||||
| 90179-08153 | ||||
| 91621-60612 | ||||
| 91621-A0850 | ||||
| 91666-F0620 | ||||
| Linked diagrams | ||||
| 8404 | ||||
