AT160L-BLMSSW (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )AT160

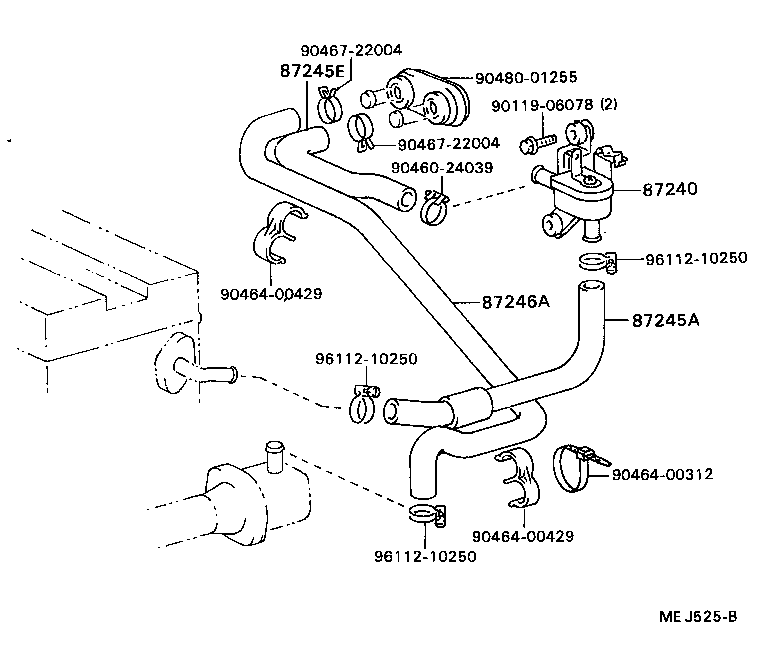

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 9011906078 9046024039 9046400312 9046400429 9046400429 9046722004 9046722004 9048001255 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20300

AT160,ST16#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B100

AT160..CBR

 1
87245E - HOSE, HEATER WATER, INLET E
87245-20820

AT160,ST16#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-20860

AT160

 1
Common parts
90119-06078
90460-24039
90464-00312
90464-00429
90467-22004
90480-01255
96112-10250
