AT160L-BLMSSW (1987)

Toyota Celica

Production Aug 1987 - Aug 1989
Engine 4AL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )AT160,ST162..5F ; (8710- )ST165..LHD

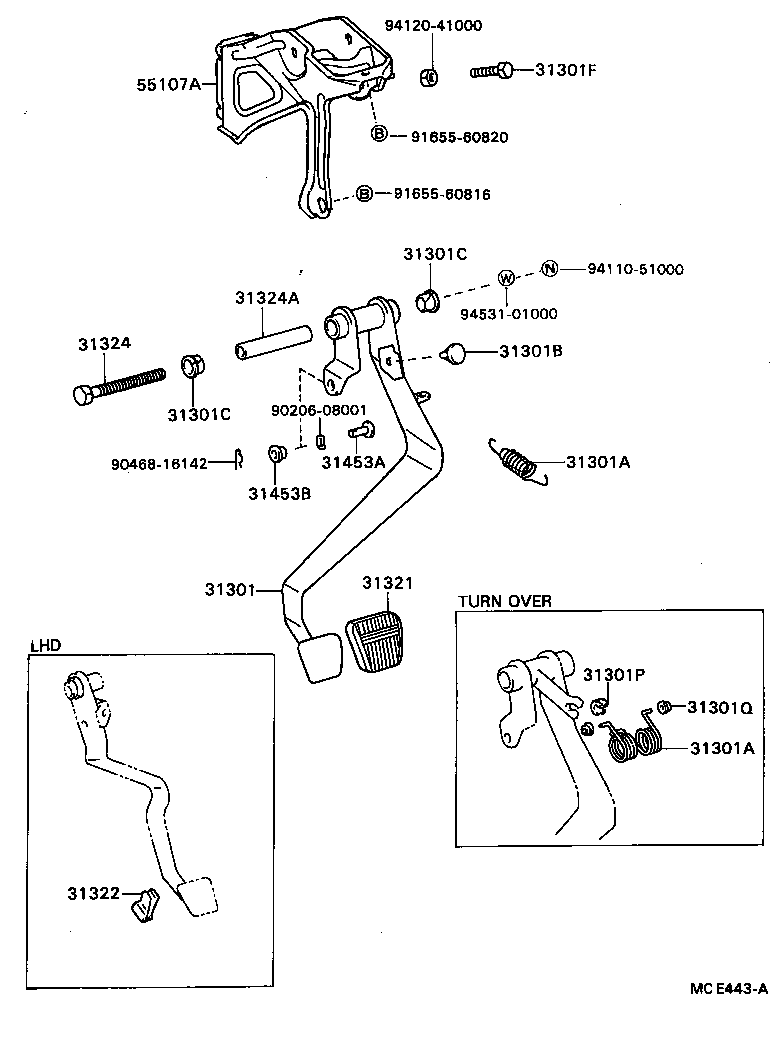

Click highlighted areas on diagram

diagram 31301 31301A 31301A 31301B 31301C 31301C 31301F 31301P 31301Q 31321 31322 31324 31324A 31453A 31453B 55107A 9020608001 9046816142 9165560816 9165560820 9411051000 9412041000 9453101000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-20040

AT160

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14003

AT160

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14003

AT160

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

ST165..LHD;AT160,ST162..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT160;ST165..RHD

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT160;ST165..RHD

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AT160,ST16#..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

AT160,ST16#..5F

 1
31322 - STOPPER, CLUTCH PEDAL
31322-20010

AT160,ST16#..LHD..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

AT160,ST16#..LHD..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

AT160,ST16#..LHD..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AT160,ST16#..5F

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AT160,ST16#..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-20160

AT160

 1
Common parts
90206-08001
90468-16142
91655-60816
91655-60820
94110-51000
94120-41000
94531-01000

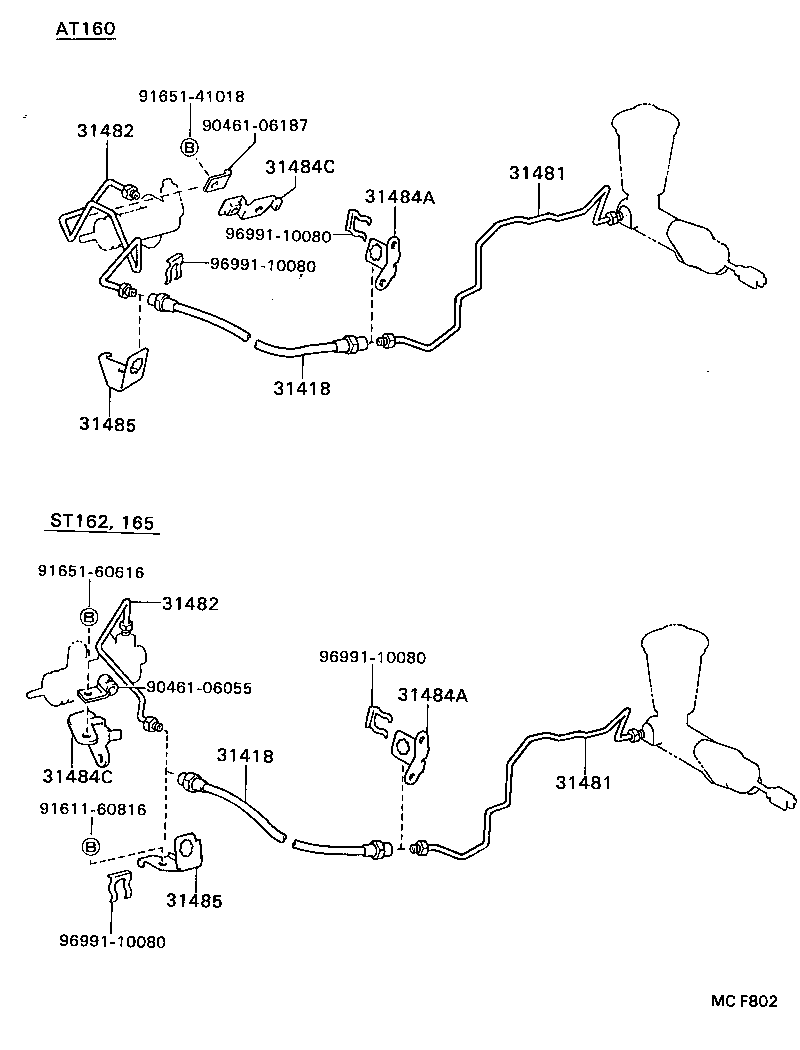

ILLUST NO. 2 OF 2(8708- )5F

Click highlighted areas on diagram

diagram 31418 31418 31481 31481 31482 31482 31484A 31484A 31484C 31484C 31485 31485 9046106055 9046106187 9161160816 9165141018 9165160616 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01028

AT160

 1
31418 - HOSE, CLUTCH
90931-01028

AT160

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20230

AT160,ST16#..LHD..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20230

AT160,ST16#..LHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12010

AT160

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12010

AT160

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20290

AT160,ST16#..LHD..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20290

AT160,ST16#..LHD..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12100

AT160

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12100

AT160

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12090

AT160

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12090

AT160

 1
Common parts
90461-06055
90461-06187
91611-60816
91651-41018
91651-60616
96991-10080
