AT160L-BCMSSW (1987)
Toyota Celica
Production
Aug 1987
-
Aug 1989
Engine
4AL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20260 |
AT160..CBR |
1 | ||
| 88437A - ATTACHMENT, COMPRESSOR | ||||
| 88437-12260 |
AT160..CBR |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12160 |
AT160..CBR |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12160 |
AT160..CBR |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 91511-61030 | ||||
| 91621-61025 | ||||
| 91651-60818 | ||||

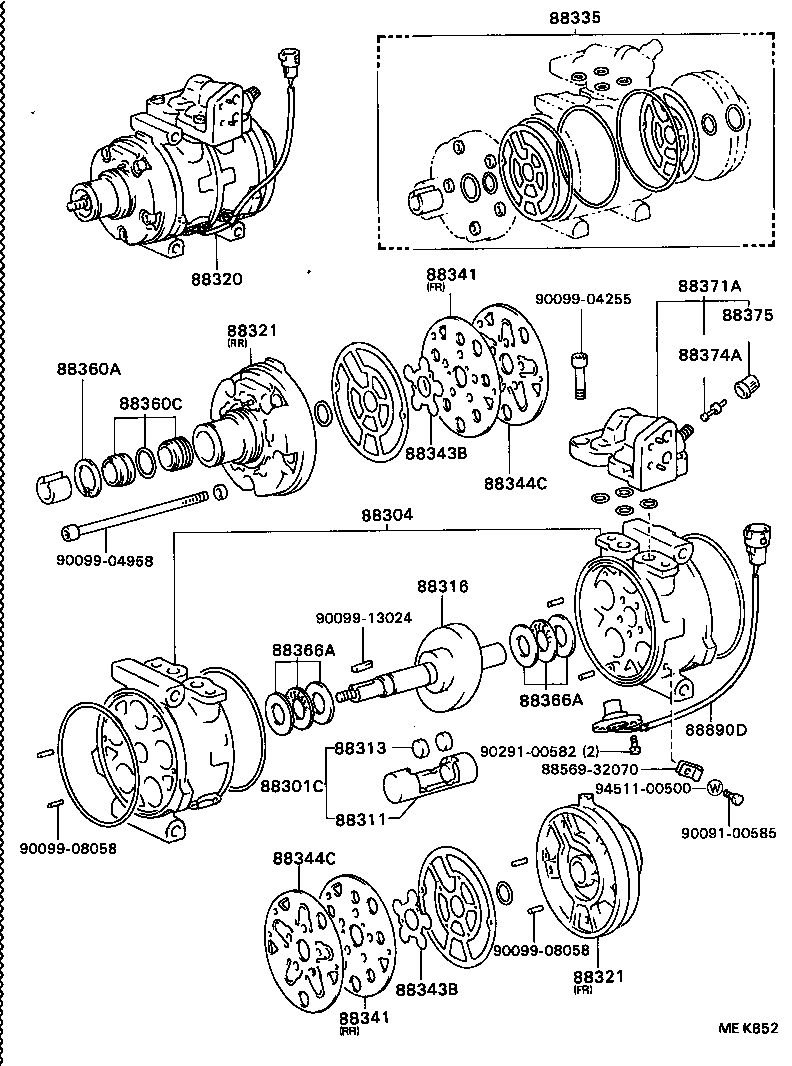

ILLUST NO. 3 OF 3(8708- )CBR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301C - PISTON SUB-ASSY | ||||
| 88301-14020 |
AT160..CBR |
5 | ||
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-20080 |
AT160..CBR |
1 | ||
| 88311 - PISTON | ||||
| 88311-14010 |
AT160..CBR |
25 | ||
| 88313 - SHOE,PISTON | ||||
| 88313-14010 |
AT160..CBR |
50 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20080 |
AT160..CBR |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20430 |
AT160..CBR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
AT160..CBR FR |
1 | ||
| 88322-14011 |
AT160..CBR RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
AT160..CBR FR |
1 | ||
| 88322-14011 |
AT160..CBR RR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12020 |
AT160..CBR |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88342-14010 |
AT160..CBR RR |
1 | ||
| 88341-14010 |
AT160..CBR FR |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88342-14010 |
AT160..CBR RR |
1 | ||
| 88341-14010 |
AT160..CBR FR |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
AT160..CBR |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
AT160..CBR |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
AT160..CBR |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
AT160..CBR |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
ST162;AT160,ST165..LHD..(ST,TBO4W) |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-40010 |
AT160..CBR |
1 | ||
| 88366A - BEARING,COMPRESSOR | ||||
| 88366-14010 |
AT160..CBR |
2 | ||
| 88366A - BEARING,COMPRESSOR | ||||
| 88366-14010 |
AT160..CBR |
2 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-20190 |
AT160..CBR |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
AT160..CBR |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
AT160..CBR |
1 | ||
| 88890D - SENSOR,COMPRESSOR | ||||
| 88890-20030 |
AT160..CBR |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90099-04255 | ||||
| 90099-04958 | ||||
| 90099-08058 | ||||
| 90099-13024 | ||||
| 90291-00582 | ||||
| 94511-00500 | ||||
ILLUST NO. 2 OF 3(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14010 |
AT160..CBR |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-20100 |
AT160..CBR |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20430 |
AT160..CBR |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
AT160..CBR |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
ST162;AT160,ST165..LHD..(ST,TBO4W) |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
AT160..CBR |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-20170 |
AT160..CBR |
1 | ||
| Common parts | ||||
| 88469-32020 | ||||
| 90099-04349 | ||||
| 91651-60820 | ||||
