AA63R-BLMQF (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8507)AA63

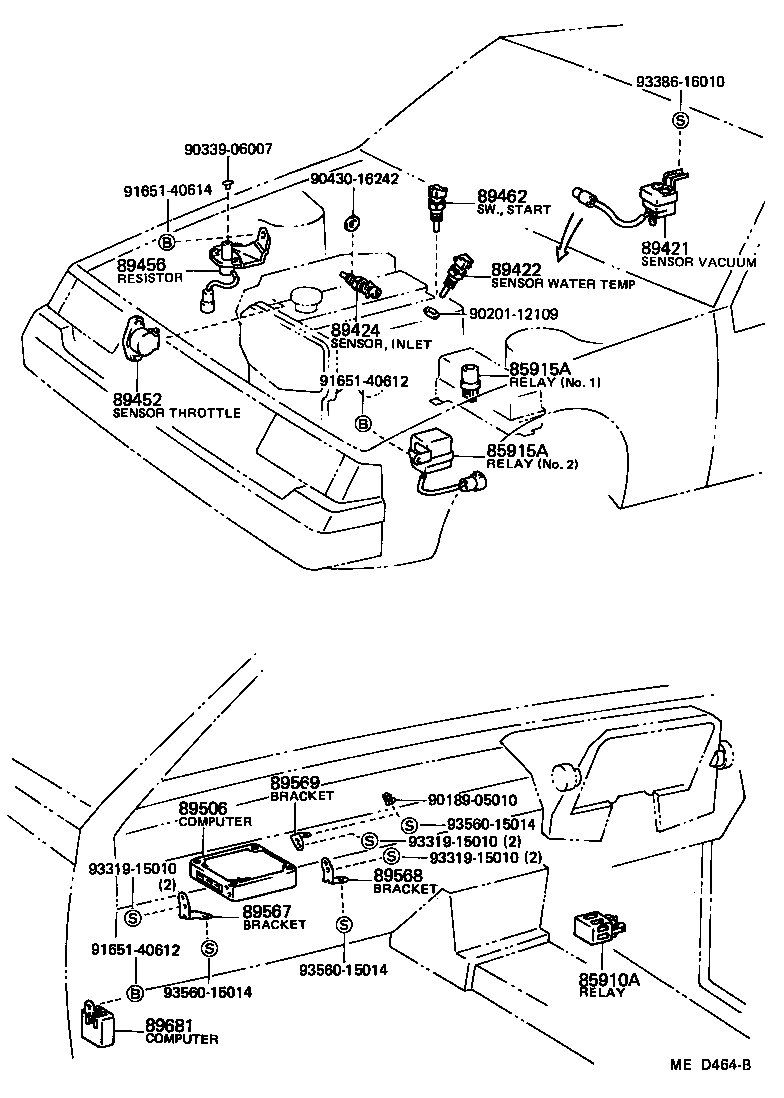

Click highlighted areas on diagram

diagram 85910A 85915A 85915A 89421 89422 89424 89452 89456 89462 89506 89567 89568 89569 89681 9018905010 9020112109 9033906007 9043016242 9165140612 9165140612 9165140614 9331915010 9331915010 9331915010 9338616010 9356015014 9356015014 9356015014
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-14010

AA63..GEN

W/HEATER

 1
89421-14020

AA63..GEN

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

AA63

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-28010

AA63

 1
89456 - RESISTOR, VARIABLE
89456-14010

AA63

 1
89506 - COMPUTER SET, FUEL INJECTION
89661-14080

AA63..GEN

 1
89681 - COMPUTER ASSY, IDLE-UP
89681-14010

AA63

 1
Common parts
90189-05010
90201-12109
90339-06007
90430-16242
91651-40612
91651-40614
93319-15010
93386-16010
93560-15014
