AA63R-BCMQF (1983)
Toyota Celica
Production
Aug 1983
-
Jul 1985
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8507)MA61,RA60,61,63..RHD

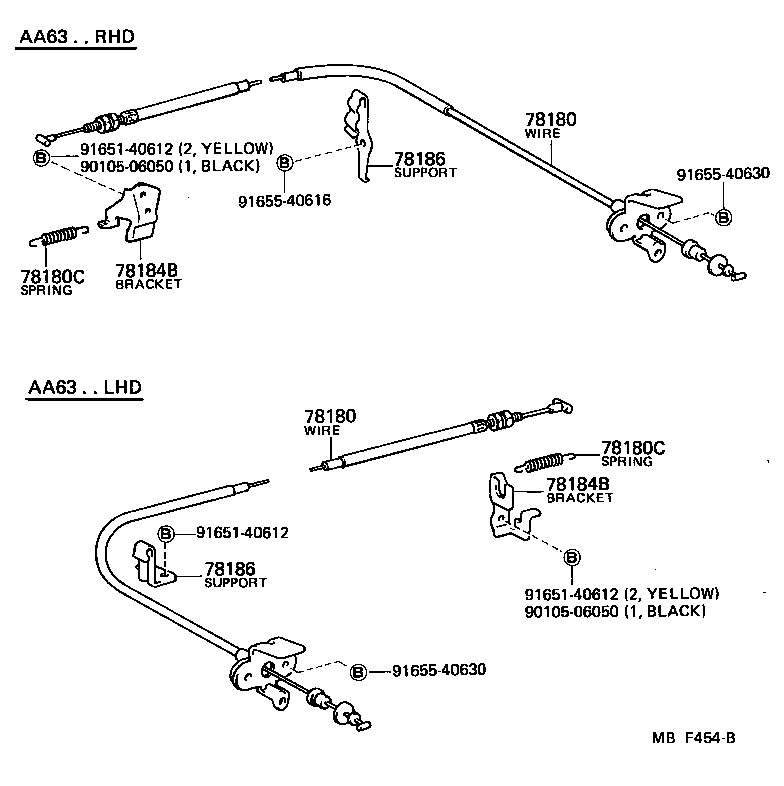

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14630 |
AA63..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14630 |
AA63..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14630 |
AA63..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78024-14040 |
AA63 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78024-14040 |
AA63 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-14080 |
AA63..RHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-14080 |
AA63..RHD |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91615-60820 | ||||
| 91655-40616 | ||||
| 91655-40630 | ||||
(8308-8507)AA63
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14630 |
AA63..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14630 |
AA63..RHD |
1 | ||
| 78180C - SPRING, TENSION (FOR ACCELERATOR WIRE) | ||||
| 90507-10009 |
AA63 |
1 | ||
| 90507-11004 |
AA63 |
1 | ||
| 78180C - SPRING, TENSION (FOR ACCELERATOR WIRE) | ||||
| 90507-11004 |
AA63 |
1 | ||
| 90507-10009 |
AA63 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78024-14040 |
AA63 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78024-14040 |
AA63 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-14080 |
AA63..RHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-14080 |
AA63..RHD |
1 | ||
| Common parts | ||||
| 90105-06050 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 91655-40630 | ||||
