AA63L-BCMXFW (1983)
Toyota Celica
(8108-8507)4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

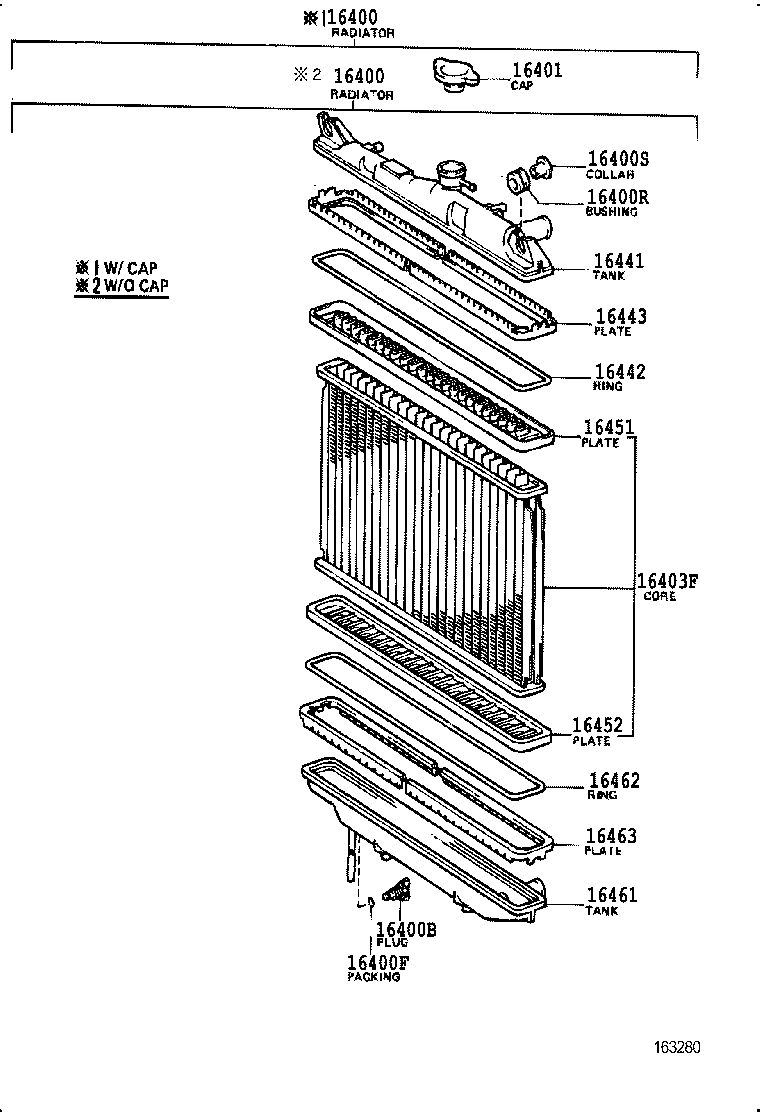

| 16400 - RADIATOR ASSY | ||||
| 16400-15081 |
4AGE..AA63 W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15081 |
4AGE..AA63 W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4AGE..AA63 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4AGE..AA63 |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
4AGE..AA63 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
4AGE..AA63 |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
4AGE..AA63 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-15081 |
4AGE..AA63 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-15080 |
4AGE..AA63 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-26330 |
4AGE..AA63 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-13351 |
4AGE..AA63 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-26330 |
4AGE..AA63 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-26330 |
4AGE..AA63 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-15080 |
4AGE..AA63 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-26330 |
4AGE..AA63 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-13350 |
4AGE..AA63 |
2 | ||

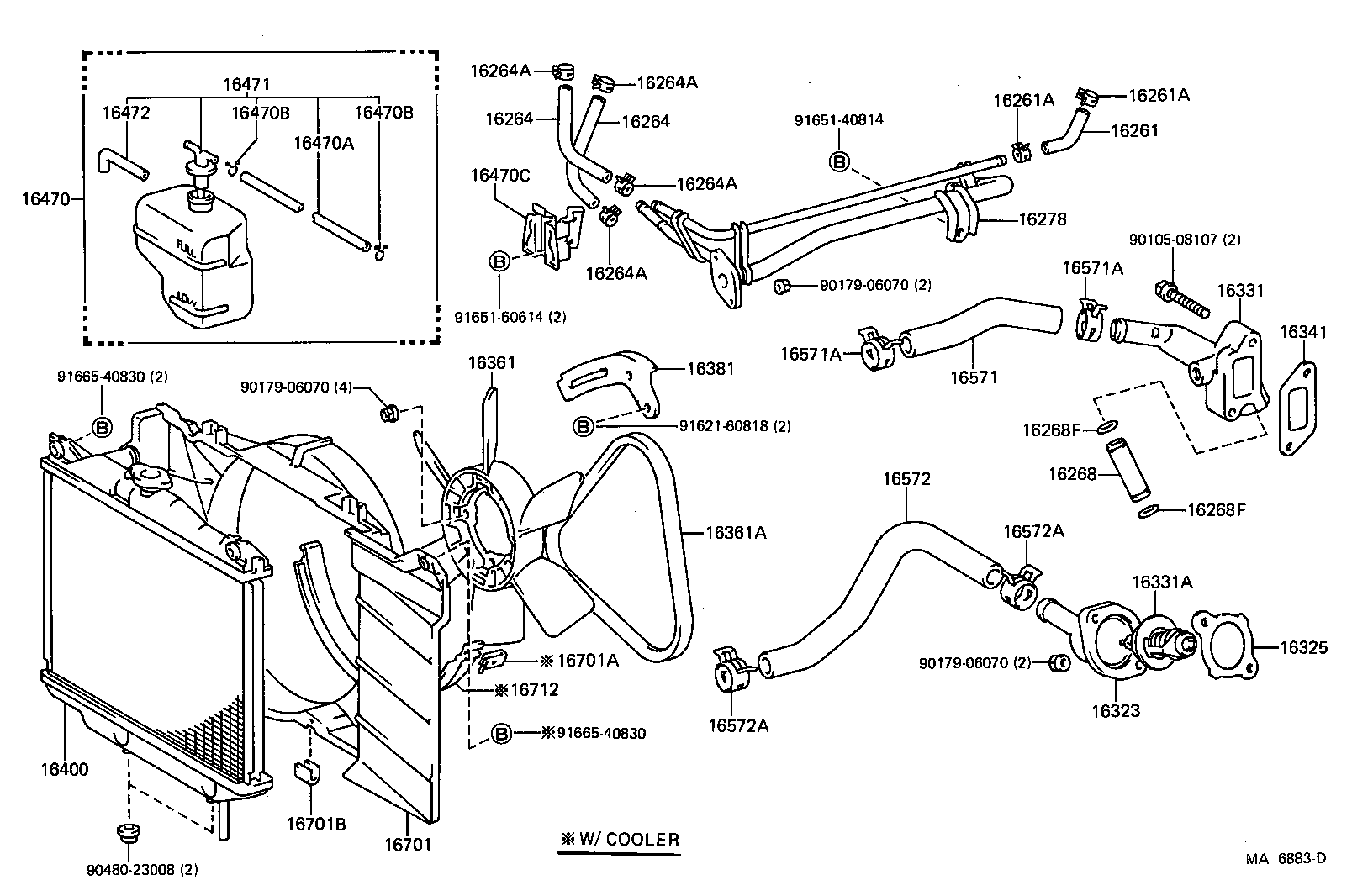

(8308-8507)4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-16020 |
4AGE..AA63 L=100 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
4AGE..AA63 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
4AGE..AA63 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-16020 |
4AGE..AA63 L=210 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-16020 |
4AGE..AA63 L=210 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AGE..AA63 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AGE..AA63 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AGE..AA63 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AGE..AA63 |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-16010 |
4AGE..AA63 |
1 | ||
| 16268-16011 |
4AGE..AA63 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
4AGE..AA63 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
4AGE..AA63 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-16020 |
4AGE..AA63 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-16020 |
4AGE..AA63 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-70021 |
4AGE..AA63 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-16020 |
4AGE..AA63 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AGE..AA63 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-16010 |
4AGE..AA63 |
1 | ||
| 16361 - FAN | ||||
| 16361-16010 |
4AGE..AA63 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99365-50830 |
4AGE..AA63 |
1 | ||
| 90916-02148 |
4AGE..AA63 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-16010 |
4AGE..AA63 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15081 |
4AGE..AA63 W/CAP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-16010 |
4AGE..AA63 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
4AGE..AA63 L=1000 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGE..AA63 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGE..AA63 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-16010 |
4AGE..AA63 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-16010 |
4AGE..AA63 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-12020 |
4AGE..AA63 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-16020 |
4AGE..AA63 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
4AGE..AA63 |
2 | ||
| 90467-34001 |
4AGE..AA63 |
2 | ||
| 90467-34001 |
4AGE..AA63 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-33002 |
4AGE..AA63 |
2 | ||
| 90467-34001 |
4AGE..AA63 |
2 | ||
| 90467-34001 |
4AGE..AA63 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-16030 |
4AGE..AA63 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
4AGE..AA63 |
2 | ||
| 90467-34001 |
4AGE..AA63 |
2 | ||
| 90467-33002 |
4AGE..AA63 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
4AGE..AA63 |
2 | ||
| 90467-34001 |
4AGE..AA63 |
2 | ||
| 90467-33002 |
4AGE..AA63 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15070 |
4AGE..AA63 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
4AGE..AA63 W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
4AGE..AA63 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-44040 |
4AGE..AA63 W/COOLER |
1 | ||
| Common parts | ||||
| 90105-08107 | ||||
| 90179-06070 | ||||
| 90480-23008 | ||||
| 91621-60818 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91665-40830 | ||||
