AA63L-BCMQF (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP

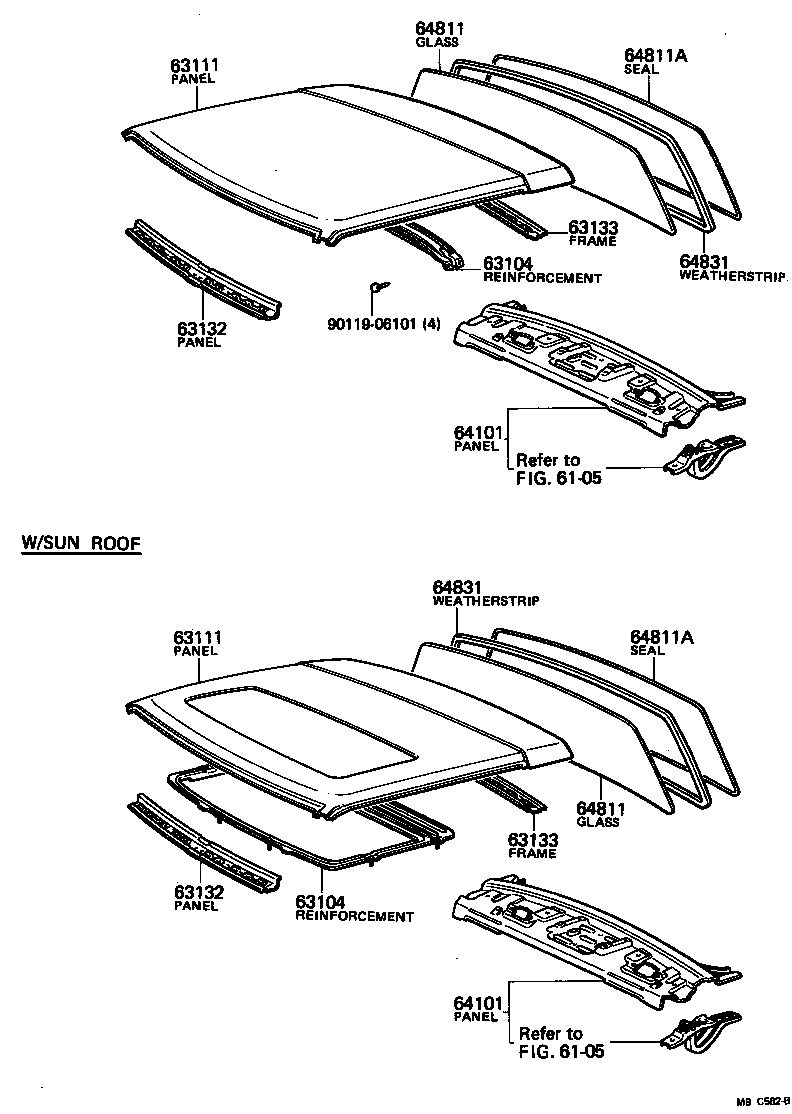

Click highlighted areas on diagram

diagram 6105 6105 63104 63104 63111 63111 63132 63132 63133 63133 64101 64101 64811 64811 64811A 64811A 64831 64831 9011906101
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-14060

AA63,MA61,RA6#,SA63,TA60

W/O SUN ROOF

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-14060

AA63,MA61,RA6#,SA63,TA60

W/O SUN ROOF

 1
63111 - PANEL, ROOF
63111-14140

AA63,RA6#,SA63,TA60..CP

W/O SUN ROOF

 1
63111 - PANEL, ROOF
63111-14140

AA63,RA6#,SA63,TA60..CP

W/O SUN ROOF

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-14070

AA63,MA61,RA6#,SA63,TA60

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-14070

AA63,MA61,RA6#,SA63,TA60

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-14090

AA63,RA6#,SA63,TA60..CP

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-14090

AA63,RA6#,SA63,TA60..CP

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-14190

AA63,RA60,61,63..CP..(GT,XT)

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-14190

AA63,RA60,61,63..CP..(GT,XT)

 1
64811 - GLASS, BACK WINDOW
64801-14400

AA63,RA6#,SA63,TA60..CP

T=3.5,*EHTT

 1
64811-14590

AA63,RA60,61,63,TA60..CP..(GEN,ME,SAA)

T=3.5,*TT

 1
64811 - GLASS, BACK WINDOW
64801-14400

AA63,RA6#,SA63,TA60..CP

T=3.5,*EHTT

 1
64811-14590

AA63,RA60,61,63,TA60..CP..(GEN,ME,SAA)

T=3.5,*TT

 1
64811A - SEAL, BACK WINDOW GLASS WEATHERSTRIP
64814-14030

AA63,RA6#,SA63,TA60..CP

 1
64811A - SEAL, BACK WINDOW GLASS WEATHERSTRIP
64814-14030

AA63,RA6#,SA63,TA60..CP

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-14130

AA63,RA6#,SA63,TA60..CP..(GT,GTS,ST,XT)

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-14130

AA63,RA6#,SA63,TA60..CP..(GT,GTS,ST,XT)

 1
Common parts
90119-06101
Linked diagrams
6105
