ST191R-DWMNKW (1992)
Toyota Carina E Wg (Jpp)
(9308- )JPP

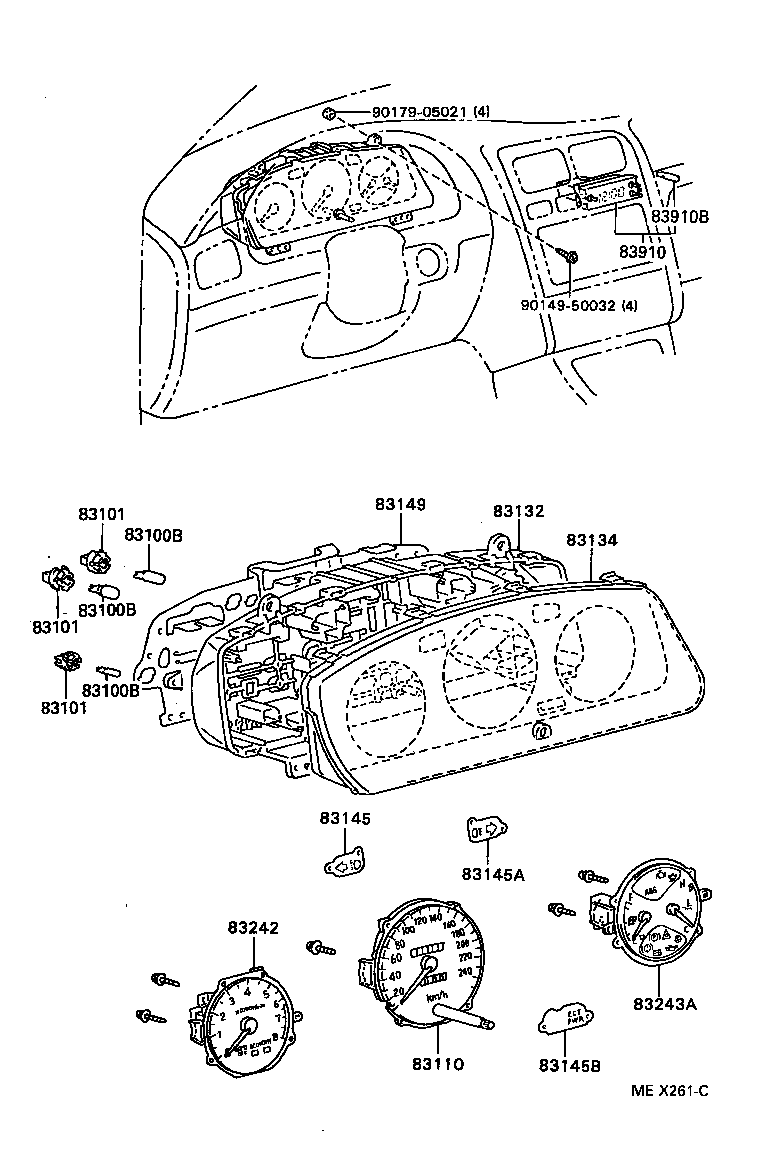

W/O(TACHOMETER) VDO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
AT19#,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
CT190..JPP;ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
11 | ||
| 90981-11018 |
ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AT19#,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
AT19#,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
CT190..JPP;ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
11 | ||
| 90981-11018 |
ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AT19#,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
AT19#,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
CT190..JPP;ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
11 | ||
| 90981-11018 |
ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AT19#,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST191..JPP..RHD..MTM BULB:12V 1.4W |
7 | ||
| 83101-20040 |
AT19#,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20070 |
AT19#,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
CT190..JPP;ST191..JPP..RHD..MTM BULB:12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST191..JPP..RHD..MTM BULB:12V 1.4W |
7 | ||
| 83101-20040 |
AT19#,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20070 |
AT19#,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
CT190..JPP;ST191..JPP..RHD..MTM BULB:12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST191..JPP..RHD..MTM BULB:12V 1.4W |
7 | ||
| 83101-20040 |
AT19#,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20070 |
AT19#,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
CT190..JPP;ST191..JPP..RHD..MTM BULB:12V 1.4W |
11 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D340 |
ST191..JPP..RHD |
1 | ||
| 83110-2D350 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83110-2D640 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83110-2D610 |
AT191,ST191..JPP..RHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20660 |
AT190,ST191..JPP..GL |
1 | ||
| 83132-2D080 |
AT191,ST191..JPP..RHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20240 |
AT19#,ST191..JPP..MTM..GL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT19#,CT190,ST191..JPP |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20500 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83145-2D620 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83146-20700 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D720 |
AT19#,CT190,ST191..JPP |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-20340 |
ST191..JPP..RHD..MTM HONG KONG SPEC |
1 | ||
| 83149-20460 |
ST191..JPP..RHD..MTM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20720 |
ST191..JPP |
1 | ||
| 83243-20700 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83243-2D100 |
AT19#,ST191..JPP..GL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT19#,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||
(9308- )JPP

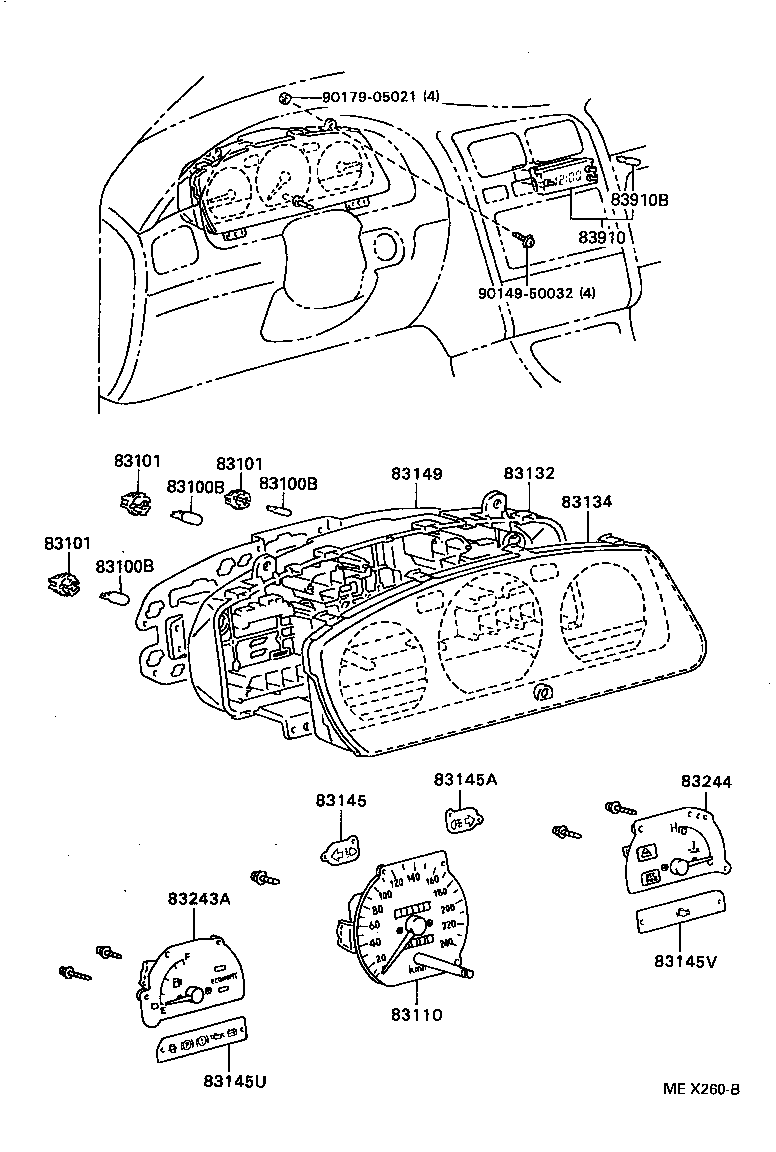

W(TACHOMETER) VDO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
AT19#,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
CT190..JPP;ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
11 | ||
| 90981-11018 |
ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AT19#,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
AT19#,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
CT190..JPP;ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
11 | ||
| 90981-11018 |
ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AT19#,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
AT19#,ST191..JPP..GL 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
CT190..JPP;ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
11 | ||
| 90981-11018 |
ST191..JPP..RHD..MTM 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AT19#,CT190,ST191..JPP 12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST191..JPP..RHD..MTM BULB:12V 1.4W |
7 | ||
| 83101-20040 |
AT19#,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20070 |
AT19#,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
CT190..JPP;ST191..JPP..RHD..MTM BULB:12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST191..JPP..RHD..MTM BULB:12V 1.4W |
7 | ||
| 83101-20040 |
AT19#,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20070 |
AT19#,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
CT190..JPP;ST191..JPP..RHD..MTM BULB:12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST191..JPP..RHD..MTM BULB:12V 1.4W |
7 | ||
| 83101-20040 |
AT19#,CT190,ST191..JPP BULB:12V 3.4W |
3 | ||
| 83101-20070 |
AT19#,ST191..JPP..GL BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
CT190..JPP;ST191..JPP..RHD..MTM BULB:12V 1.4W |
11 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D340 |
ST191..JPP..RHD |
1 | ||
| 83110-2D350 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83110-2D640 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83110-2D610 |
AT191,ST191..JPP..RHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20660 |
AT190,ST191..JPP..GL |
1 | ||
| 83132-2D080 |
AT191,ST191..JPP..RHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20240 |
AT19#,ST191..JPP..MTM..GL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D640 |
AT19#,CT190,ST191..JPP |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20500 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83145-2D620 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83146-20700 |
AT190,CT190,ST191..JPP |
1 | ||
| 83145-2D720 |
AT19#,CT190,ST191..JPP |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-20340 |
ST191..JPP..RHD..MTM HONG KONG SPEC |
1 | ||
| 83149-20460 |
ST191..JPP..RHD..MTM |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20500 |
ST191..JPP..RHD..MTM |
1 | ||
| 83242-2D260 |
ST191..JPP..RHD..MTM HONG KONG SPEC |
1 | ||
| 83242-20740 |
ST191..JPP..RHD..MTM HONG KONG SPEC |
1 | ||
| 83242-2D340 |
ST191..JPP..RHD..MTM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20720 |
ST191..JPP |
1 | ||
| 83243-20700 |
ST191..JPP..RHD HONG KONG SPEC |
1 | ||
| 83243-2D100 |
AT19#,ST191..JPP..GL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT19#,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||
