ST191L-DWPNKW (1992)
Toyota Carina E Wg (Jpp)

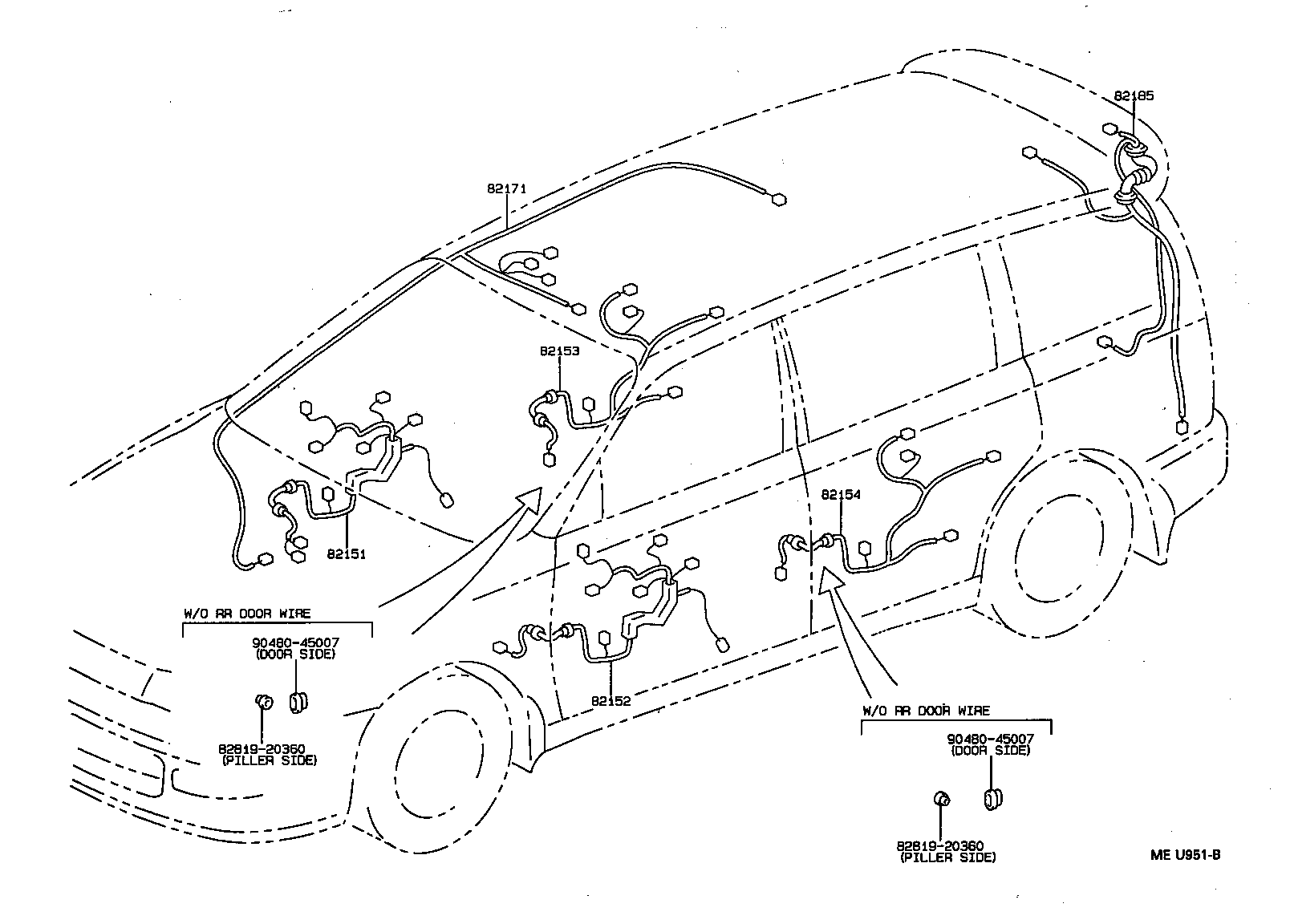

ILLUST NO. 7 OF11(9211- )JPP
DOOR,ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2D500 |
AT190,ST191..JPP..LHD..GL W(*EL & HEATER MIRROR) |
1 | ||
| 82151-2D460 |
AT190,ST191..JPP..LHD..GL |
1 | ||
| 82151-2D470 |
AT190,ST191..JPP..LHD..GL W(HEATER MIRROR) |
1 | ||
| 82151-2D490 |
AT190,CT190,ST191..JPP..LHD W(*EL) |
1 | ||
| 82151-21020 |
AT19#,ST191..JPP..LHD..GL W(HEATER MIRROR) |
1 | ||
| 82151-2G100 |
AT19#,ST191..JPP..LHD..GL W(*EL & HEATER MIRROR) |
1 | ||
| 82151-2G090 |
AT19#,CT190,ST191..JPP..LHD W(*EL W/INTERLINKING UNLOCK) |
1 | ||
| 82151-2G100 |
AT19#,ST191..JPP..LHD W(*EL & HEATER MIRROR) |
1 | ||
| 82151-2G080 |
AT19#,ST191..JPP..LHD..GL |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2D290 |
AT190,ST191..JPP..LHD..GL |
1 | ||
| 82152-2D330 |
AT190,ST191..JPP..LHD..GL W(*EL & HEATER MIRROR) |
1 | ||
| 82152-2D320 |
AT190,ST191..JPP..LHD..GL W(*EL) |
1 | ||
| 82152-2D330 |
AT19#,ST191..JPP..LHD..GL W(*EL & HEATER MIRROR) |
1 | ||
| 82152-2D300 |
AT190,ST191..JPP..LHD..GL W(HEATER MIRROR) |
1 | ||
| 82152-21020 |
AT19#,ST191..JPP..LHD..GL W(HEATER MIRROR) |
1 | ||
| 82152-2G010 |
AT19#,ST191..JPP..LHD..GL |
1 | ||
| 82152-2D330 |
AT19#,ST191..JPP..LHD W(*EL & HEATER MIRROR) |
1 | ||
| 82152-2D870 |
AT19#,ST191..JPP..LHD..GL W(*EL W/INTERLINKING KNOB) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-21010 |
AT190,CT190,ST191..JPP W(*EL W/KEY-CONFINE PREVENTION FUNCTION) |
1 | ||
| 82153-21010 |
AT19#,CT190,ST191..JPP W(*EL W/INTERLINKING UNLOCK) |
1 | ||
| 82153-20340 |
AT190..JPP..RHD;AT19#,ST191..JPP..GL |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20270 |
AT190..JPP..RHD;AT19#,ST191..JPP..GL |
1 | ||
| 82154-21010 |
AT190,CT190,ST191..JPP W(*EL W/KEY-CONFINE PREVENTION FUNCTION) |
1 | ||
| 82154-21010 |
AT19#,CT190,ST191..JPP W(*EL W/INTERLINKING UNLOCK) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20690 |
AT190,CT190,ST191..JPP..LHD W(MOON ROOF) |
1 | ||
| 82171-2B040 |
AT19#,CT190,ST191..JPP..LHD W(MOON ROOF) |
1 | ||
| 82171-20680 |
AT19#,ST191..JPP..LHD..GL |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-21050 |
AT19#,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 82819-20360 | ||||
| 90480-45007 | ||||

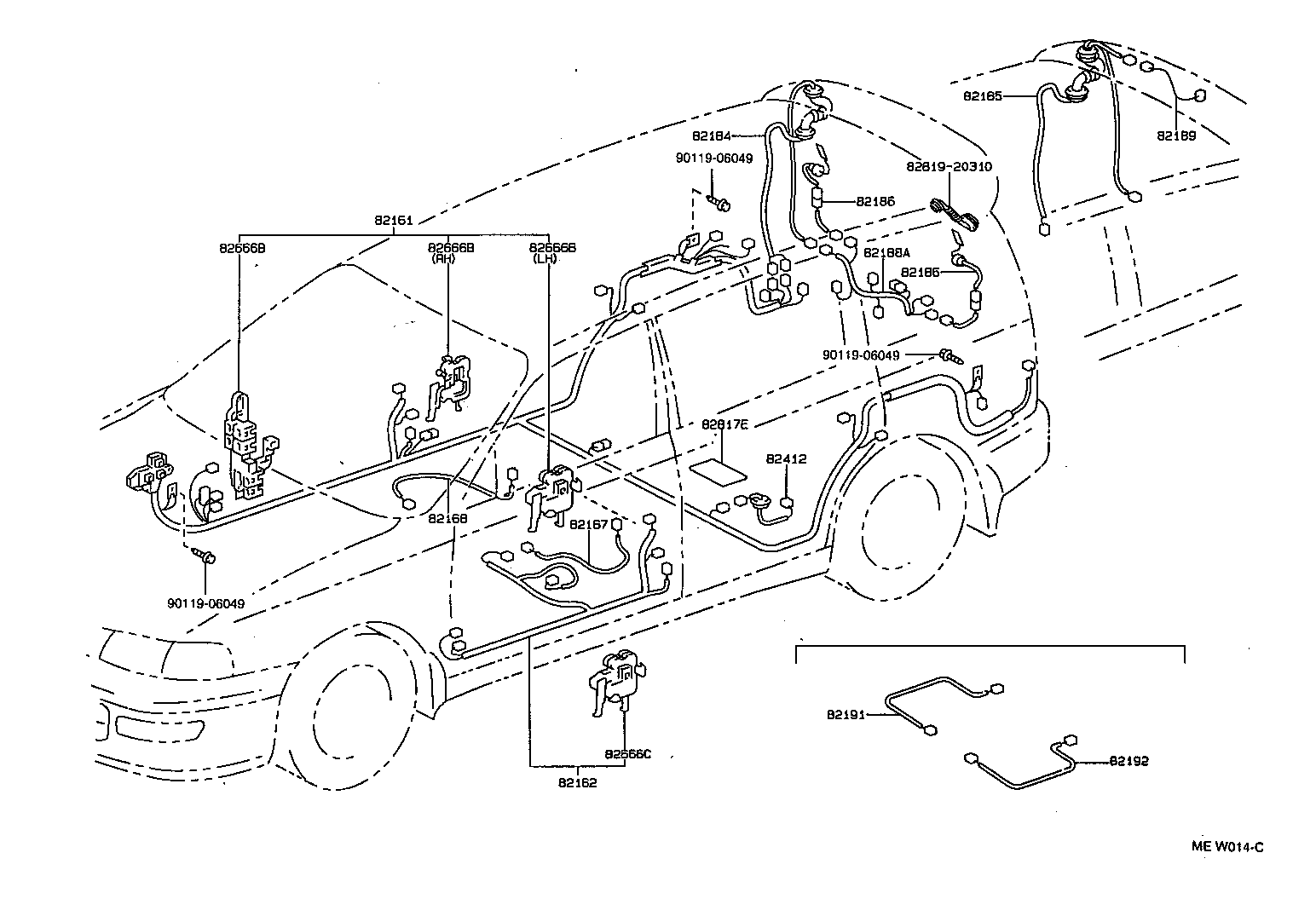

ILLUST NO. 8 OF11(9211- )JPP
FLOOR,SEAT,BACK DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-21130 |
AT190,ST191..JPP..LHD..GL W(MOTER ANTENNA) |
1 | ||
| 82161-21110 |
AT190,ST191..JPP..LHD..GL |
1 | ||
| 82161-21131 |
AT19#,ST191..JPP..LHD..GL W(MOTER ANTENNA) |
1 | ||
| 82161-21111 |
AT19#,ST191..JPP..LHD..GL |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-20591 |
AT19#,CT190,ST191..JPP..LHD |
1 | ||
| 82162-20590 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-20120 |
AT19#,CT190,ST191..JPP..LHD |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-20010 |
AT19#,CT190,ST191..JPP..LHD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-21030 |
AT19#,CT190,ST191..JPP |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-21050 |
AT19#,CT190,ST191..JPP |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-21010 |
AT19#,CT190,ST191..JPP |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-21010 |
AT19#,CT190,ST191..JPP |
2 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-21030 |
AT190..JPP..RHD;AT19#,ST191..JPP..GL |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20020 |
AT19#,CT190,ST191..JPP..LHD LH |
1 | ||
| 82666-20100 |
AT19#,CT190,ST191..JPP..LHD I/P WIRE |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20020 |
AT19#,CT190,ST191..JPP..LHD LH |
1 | ||
| 82666-20100 |
AT19#,CT190,ST191..JPP..LHD I/P WIRE |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20020 |
AT19#,CT190,ST191..JPP..LHD LH |
1 | ||
| 82666-20100 |
AT19#,CT190,ST191..JPP..LHD I/P WIRE |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-20010 |
AT19#,CT190,ST191..JPP..LHD |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-91707 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 82819-20310 | ||||
| 90119-06049 | ||||

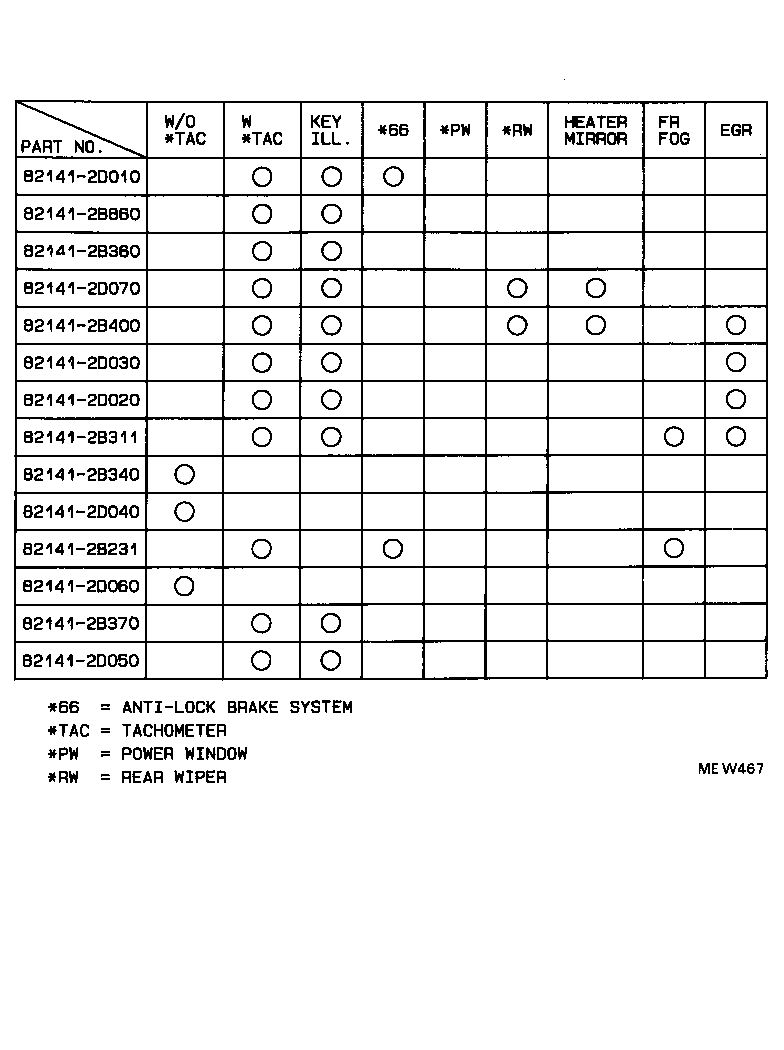

ILLUST NO.11 OF11(9305- )JPP
INST. PANEL WIRE(PNC82141)SPEC LIST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82141-2B231 | ||||
| 82141-2B311 | ||||
| 82141-2B340 | ||||
| 82141-2B360 | ||||
| 82141-2B370 | ||||
| 82141-2B400 | ||||
| 82141-2B860 | ||||
| 82141-2D010 | ||||
| 82141-2D020 | ||||
| 82141-2D030 | ||||
| 82141-2D040 | ||||
| 82141-2D050 | ||||
| 82141-2D060 | ||||
| 82141-2D070 | ||||
