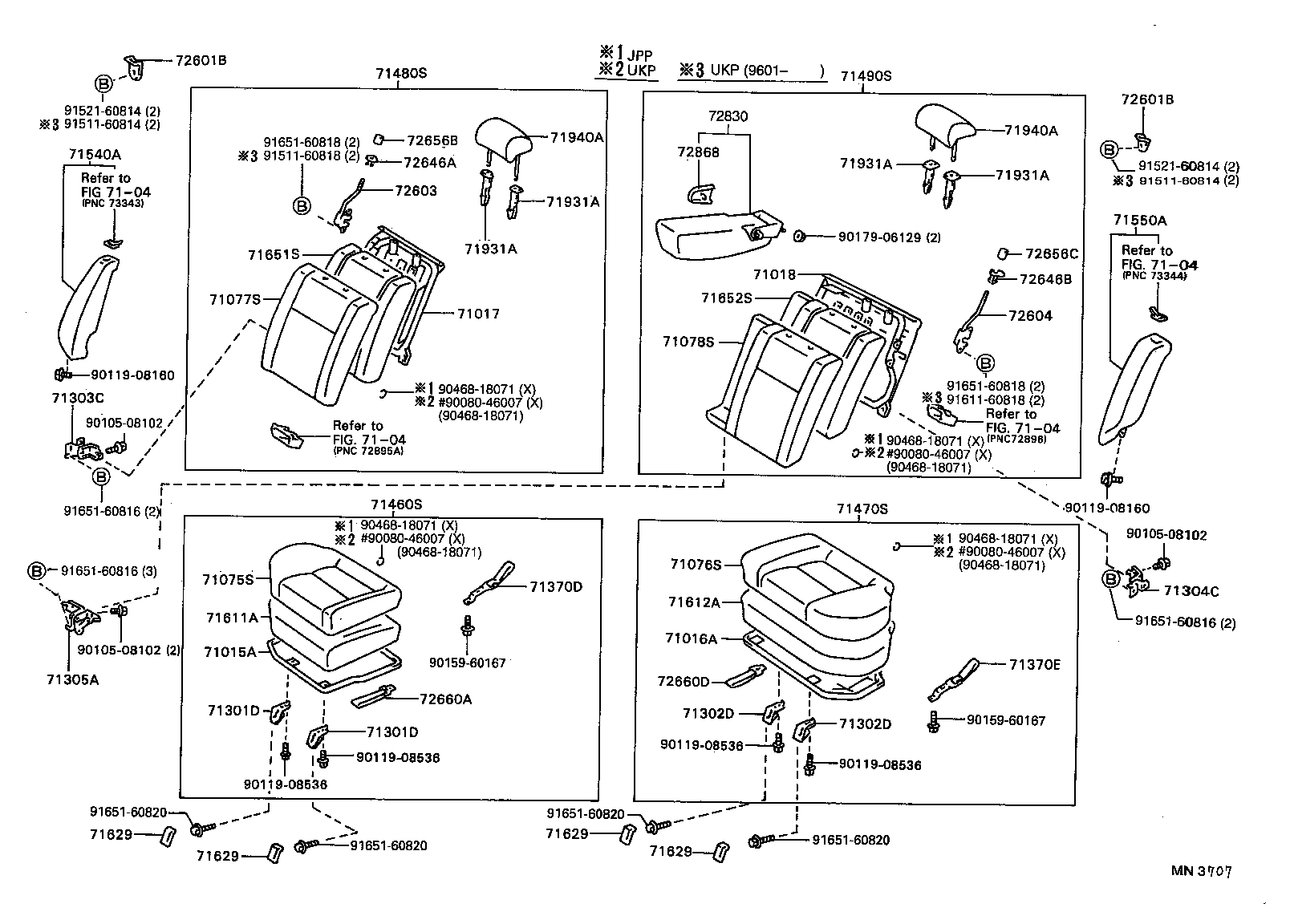

AT190R-DWMDKW (1992)
Toyota Carina E Wg (Jpp)
(9211- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-20380 |
AT19#,CT190,ST191..JPP |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-20050 |
AT19#,CT190,ST191..JPP |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20490 |
AT19#,CT190,ST191..JPP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20170 |
AT190,CT190..JPP..XL |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71065-2B041J5 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B040J3 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B040B2 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71065-2B041B3 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2B300J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B040B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-20060B2 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71076-20060J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71076-20061J5 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71076-20060B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71076-20061B3 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71076-20060J3 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71076-20060J3 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71076-20110J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2G040J1 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G040B1 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71077-2G040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G190J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G040B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71077-2G041J4 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G041B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2G040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2B040J1 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B040B1 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71078-2B040B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71078-2B041J4 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B160J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B041B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71302-20010 |
AT19#,CT190,ST191..JPP LH |
1 | ||
| 71301-20060 |
AT19#,CT190,ST191..JPP RH |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71302-20010 |
AT19#,CT190,ST191..JPP LH |
1 | ||
| 71301-20060 |
AT19#,CT190,ST191..JPP RH |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-20010 |
AT19#,CT190,ST191..JPP LH |
1 | ||
| 71301-20060 |
AT19#,CT190,ST191..JPP RH |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-20010 |
AT19#,CT190,ST191..JPP LH |
1 | ||
| 71301-20060 |
AT19#,CT190,ST191..JPP RH |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-20100 |
AT19#,CT190,ST191..JPP |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-20090 |
AT19#,CT190,ST191..JPP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20150 |
AT19#,CT190,ST191..JPP |
1 | ||
| 71370D - HOLDER ASSY, REAR SEAT CUSHION, RH | ||||
| 71370-20050C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,8# |
1 | ||
| 71370-20040C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,8# |
1 | ||
| 71370-20050C0 |
AT19#,CT190,ST191..JPP BLACK,TRIM1#,8# |
1 | ||
| 71370E - HOLDER ASSY, REAR SEAT CUSHION, LH | ||||
| 71370-20040C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,8# |
1 | ||
| 71370-20050C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,8# |
1 | ||
| 71370-20050C0 |
AT19#,CT190,ST191..JPP BLACK,TRIM1#,8# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71560-2B200C2 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71560-2B200J2 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71560-2B201J2 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71560-2B200C0 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71560-2B200J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71560-2B201B1 |
AT190..JPP..RHD SHADOW GRAY |
1 | ||
| 71560-2B202B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B201B1 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B201J2 |
AT190..JPP..RHD DK. BLUE |
1 | ||
| 71560-2B202J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-20020J2 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71470-20020C2 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71470-20021J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71470-20021B0 |
AT190..JPP..XL SHADOW GRAY |
1 | ||
| 71470-20020J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71470-20020C0 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71470-20021J0 |
AT190..JPP..XL DK.BLUE |
1 | ||
| 71470-20021B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71470-20022B0 |
AT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71470-20022J0 |
AT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-21340C1 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71480-21340J1 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71480-21341B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480-21342J1 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71480-21342B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480-21341J1 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-21060C1 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71490-21061B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71490-21061J1 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71490-21062J1 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71490-21060J1 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71490-21062B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-20220J4 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71540-20221B4 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71540-20220C3 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71540-20221J6 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-20221B4 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71550-20221J6 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71550-20220J4 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71550-20220C3 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-20560 |
AT19#,CT190,ST191..JPP |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-20200 |
AT19#,CT190,ST191..JPP |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-20010J0 |
AT19#,CT190,ST191..JPP DK.BLUE,TRIM8# |
4 | ||
| 71629-20010C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
4 | ||
| 71629-20010B0 |
AT19#,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-20010J0 |
AT19#,CT190,ST191..JPP DK.BLUE,TRIM8# |
4 | ||
| 71629-20010C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
4 | ||
| 71629-20010B0 |
AT19#,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-20010J0 |
AT19#,CT190,ST191..JPP DK.BLUE,TRIM8# |
4 | ||
| 71629-20010C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
4 | ||
| 71629-20010B0 |
AT19#,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-20010J0 |
AT19#,CT190,ST191..JPP DK.BLUE,TRIM8# |
4 | ||
| 71629-20010C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
4 | ||
| 71629-20010B0 |
AT19#,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20690 |
AT19#,CT190,ST191..JPP |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20390 |
AT190,CT190..JPP..XL |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AT19#,CT190,ST191..JPP W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AT19#,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AT19#,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AT19#,CT190,ST191..JPP W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AT19#,CT190,ST191..JPP W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AT19#,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AT19#,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AT19#,CT190,ST191..JPP W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AT19#,CT190,ST191..JPP W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AT19#,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AT19#,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AT19#,CT190,ST191..JPP W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AT19#,CT190,ST191..JPP W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AT19#,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AT19#,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AT19#,CT190,ST191..JPP W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20270J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71940-20271B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20270B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
2 | ||
| 71940-20271J3 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20330B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20270J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71940-20271B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20270B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
2 | ||
| 71940-20271J3 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20330B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-16060 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601-20080 |
AT19#,CT190,ST191..JPP |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-16060 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601-20080 |
AT19#,CT190,ST191..JPP |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-21010 |
AT19#,CT190,ST191..JPP |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-21010 |
AT19#,CT190,ST191..JPP |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070B0 |
AT19#,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72646-20070J0 |
AT19#,CT190,ST191..JPP DK.BLUE,TRIM8# |
1 | ||
| 72646-20070C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72646-20070B0 |
AT19#,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72646-20070J0 |
AT19#,CT190,ST191..JPP DK.BLUE,TRIM8# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72661-20020B2 |
AT19#,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72661-20020J0 |
AT19#,CT190,ST191..JPP DK.BLUE,TRIM8# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020J0 |
AT19#,CT190,ST191..JPP DK.BLUE,TRIM8# |
1 | ||
| 72661-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72661-20020B2 |
AT19#,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,8# |
1 | ||
| 72660-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM1#,8# |
1 | ||
| 72660D - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,8# |
1 | ||
| 72660-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM1#,8# |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90105-08102 | ||||
| 90119-08160 | ||||
| 90119-08536 | ||||
| 90159-60167 | ||||
| 90179-06129 | ||||
| 90468-18071 | ||||
| 91511-60814 | ||||
| 91511-60818 | ||||
| 91521-60814 | ||||
| 91611-60818 | ||||
| 91651-60816 | ||||
| 91651-60818 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
