AT190L-DWMNKW (1992)

Toyota Carina E Wg (Jpp)

Production Nov 1992 - Jan 1996
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )JPP

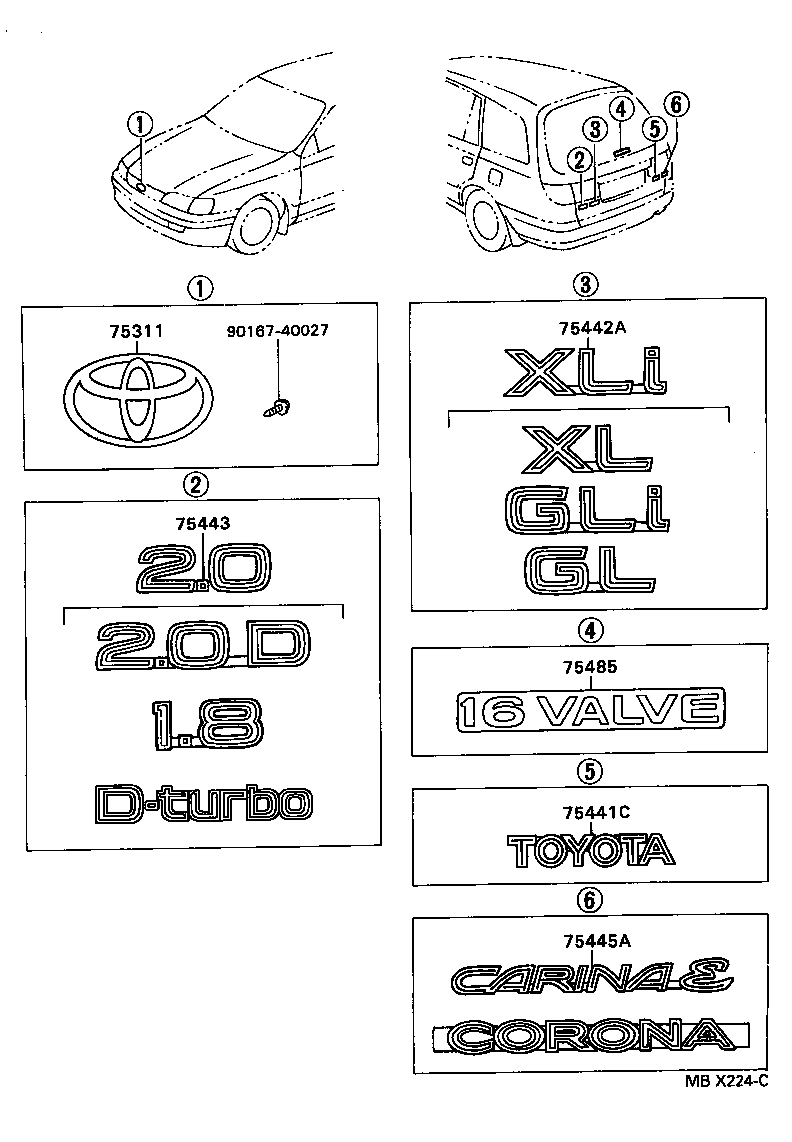

Click highlighted areas on diagram

diagram 75311 75441C 75442A 75443 75445A 75485 9016740027
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-20390

AT19#,CT190,ST191..JPP

 1
75441C - PLATE, BACK DOOR NAME
75441-20320

AT19#,CT190,ST191..JPP

TOYOTA

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-20830

AT19#,ST191..JPP..GL

GLI

 1
75445A - PLATE, BACK DOOR NAME, NO.5
75445-21030

AT19#,CT190,ST191..JPP

CARINA E

 1
75485 - PLATE, BACK WINDOW NAME
75485-21040

AT19#,ST191..JPP

16 VALVE

 1
Common parts
90167-40027
