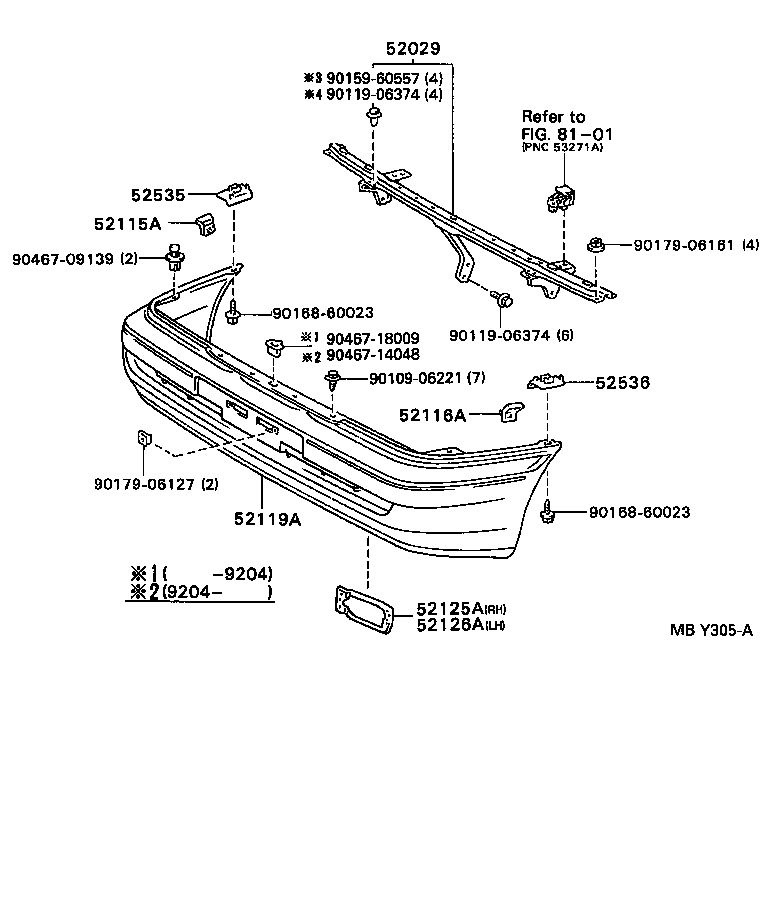

ST191R-ALMVFW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202-9402)JPP
W(LICENSE PLATE SPACE(390 X 170))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-20300 |
AT190,CT190,ST191..JPP |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-20210 |
AT190,CT190,ST191..JPP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2B050 |
ST191..JPP;AT190,CT190..JPP..RHD;AT190..JPP..LHD..SED..MTM;AT190..JPP..LHD..LB..MTM..GL W(LICENSE PLATE SPACE(550 X 130) & HEADLAMP CLEANER) |
1 | ||
| 52119-2B050 |
AT190,CT190,ST191..JPP..RHD W(LICENSE PLATE SPACE(550 X 130) & HEADLAMP CLEANER) |
1 | ||
| 52119-2B050 |
AT190,CT190,ST191..JPP W(LICENSE PLATE SPACE(550 X 130) & HEADLAMP CLEANER) |
1 | ||
| 52119-2B070 |
AT190,CT190,ST191..JPP |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90119-06374 | ||||
| 90159-60357 | ||||
| 90168-60023 | ||||
| 90179-06127 | ||||
| 90179-06161 | ||||
| 90467-09139 | ||||
| 90467-18009 | ||||
| 90467-18011 | ||||
| Linked diagrams | ||||
| 8101 | ||||
(9202- )JPP
W(LICENSE PLATE SPACE(550 X 130))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-20300 |
AT190,CT190,ST191..JPP |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-20210 |
AT190,CT190,ST191..JPP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-2B050 |
ST191..JPP;AT190,CT190..JPP..RHD;AT190..JPP..LHD..SED..MTM;AT190..JPP..LHD..LB..MTM..GL W(LICENSE PLATE SPACE(550 X 130) & HEADLAMP CLEANER) |
1 | ||
| 52119-2B050 |
AT190,CT190,ST191..JPP..RHD W(LICENSE PLATE SPACE(550 X 130) & HEADLAMP CLEANER) |
1 | ||
| 52119-2B050 |
AT190,CT190,ST191..JPP W(LICENSE PLATE SPACE(550 X 130) & HEADLAMP CLEANER) |
1 | ||
| 52119-2B070 |
AT190,CT190,ST191..JPP |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-20080 |
AT190..JPP..RHD..GL;ST191..JPP..LHD..GT;ST191..JPP..RHD..ATM;ST191..JPP..RHD..LB..MTM;ST191..JPP..RHD..SED..GT |
1 | ||
| 52125-20080 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 52125-20080 |
AT190..JPP..GL;ST191..JPP..ATM;ST191..JPP..LB..MTM;ST191..JPP..RHD..SED..GT;ST191..JPP..LHD..SED..MTM |
1 | ||
| 52126A - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-20050 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 52126-20050 |
AT190..JPP..GL;ST191..JPP..ATM;ST191..JPP..LB..MTM;ST191..JPP..RHD..SED..GT;ST191..JPP..LHD..SED..MTM |
1 | ||
| 52126-20050 |
AT190..JPP..RHD..GL;ST191..JPP..LHD..GT;ST191..JPP..RHD..ATM;ST191..JPP..RHD..LB..MTM;ST191..JPP..RHD..SED..GT |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90119-06374 | ||||
| 90159-60557 | ||||
| 90168-60023 | ||||
| 90179-06127 | ||||
| 90179-06161 | ||||
| 90467-09139 | ||||
| 90467-14048 | ||||
| 90467-18009 | ||||
| Linked diagrams | ||||
| 8101 | ||||
