ST191R-ALMVFW (1992)
Toyota Carina E Sed/Lb(Jpp)
Production
Feb 1992
-
Jan 1996
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )JPP

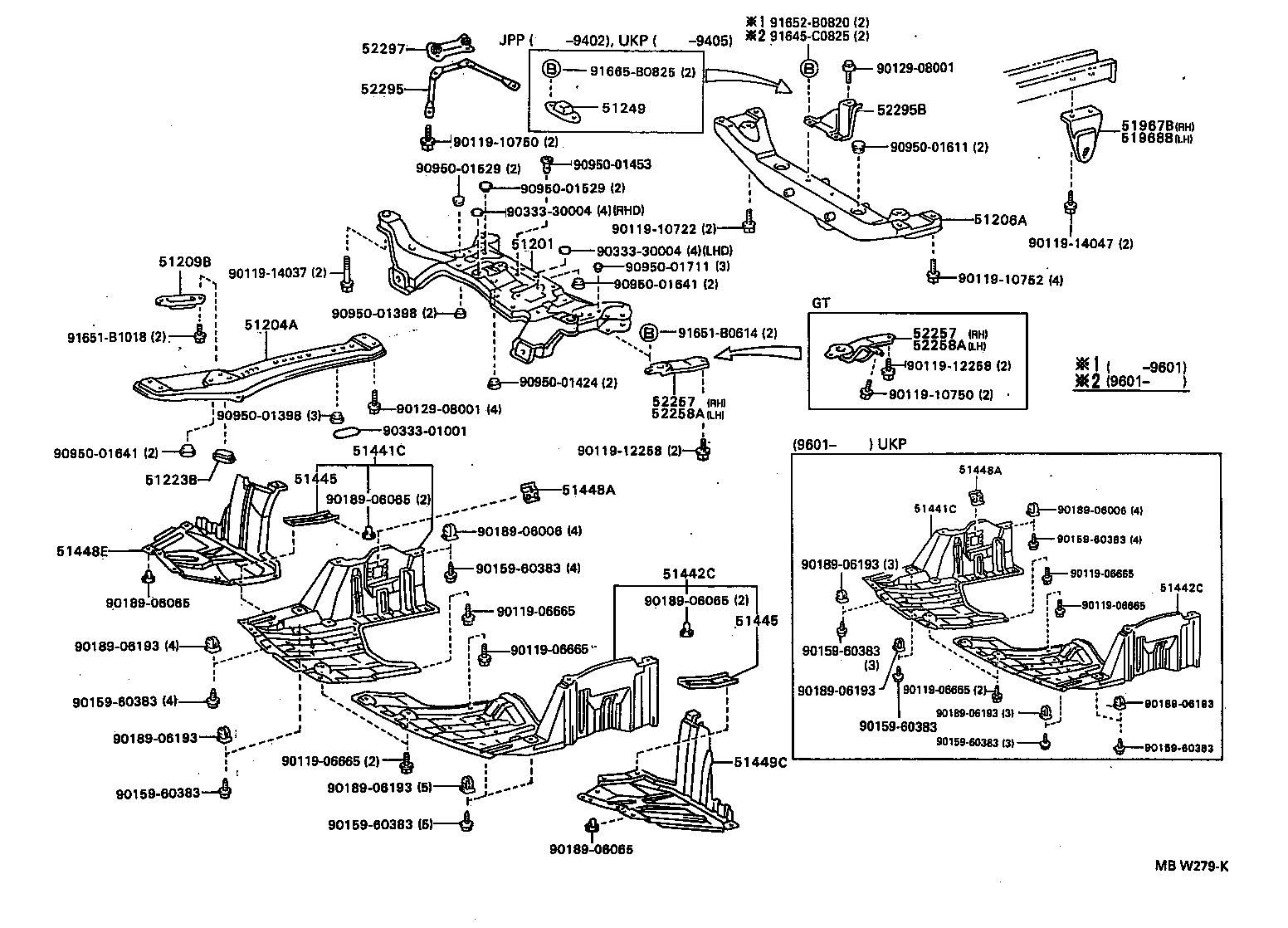

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-20270 |
ST191..JPP..RHD..GT |
1 | ||
| 51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER | ||||
| 51204-20110 |
AT190,CT190,ST191..JPP |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT | ||||
| 51209-12010 |
AT190,CT190,ST191..JPP |
1 | ||
| 51223B - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-20342 |
ST191..JPP..GT |
1 | ||
| 51441-20340 |
ST191..JPP..GT |
1 | ||
| 51441-20341 |
ST191..JPP..GT |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-20342 |
ST191..JPP..GT |
1 | ||
| 51441-20340 |
ST191..JPP..GT |
1 | ||
| 51441-20341 |
ST191..JPP..GT |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-20440 |
ST191..JPP..GT |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-20440 |
ST191..JPP..GT |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-20050 |
AT190,CT190,ST191..JPP |
2 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-20050 |
AT190,CT190,ST191..JPP |
2 | ||
| 51448A - COVER, ENGINE SIDE UNDER, RH | ||||
| 51448-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 51448A - COVER, ENGINE SIDE UNDER, RH | ||||
| 51448-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 51448E - COVER, ENGINE SIDE UNDER, RH NO.2 | ||||
| 51448-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 51449C - COVER, ENGINE SIDE UNDER, LH | ||||
| 51449-20020 |
AT190,CT190,ST191..JPP |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-20160 |
AT190,CT190,ST191..JPP |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51503-20010 |
ST191..JPP..GT |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51503-20010 |
ST191..JPP..GT |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51504-20010 |
ST191..JPP..GT |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51504-20010 |
ST191..JPP..GT |
1 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-20010 |
ST191..JPP..GT |
1 | ||
| 52295B - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-20020 |
AT190,CT190,ST191..JPP |
1 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-20010 |
ST191..JPP..GT |
1 | ||
| Common parts | ||||
| 90119-06665 | ||||
| 90119-10722 | ||||
| 90119-10750 | ||||
| 90119-10752 | ||||
| 90119-12258 | ||||
| 90119-14037 | ||||
| 90119-14047 | ||||
| 90129-08001 | ||||
| 90159-60383 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06193 | ||||
| 90333-01001 | ||||
| 90333-30004 | ||||
| 90950-01398 | ||||
| 90950-01424 | ||||
| 90950-01453 | ||||
| 90950-01529 | ||||
| 90950-01611 | ||||
| 90950-01641 | ||||
| 90950-01711 | ||||
| 90960-01529 | ||||
| 91645-C0825 | ||||
| 91651-B0614 | ||||
| 91651-B1018 | ||||
| 91652-B0820 | ||||
| 91665-B0825 | ||||
