ST191R-ALMNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )AT190,ST191..JPP..RHD..GL,XL

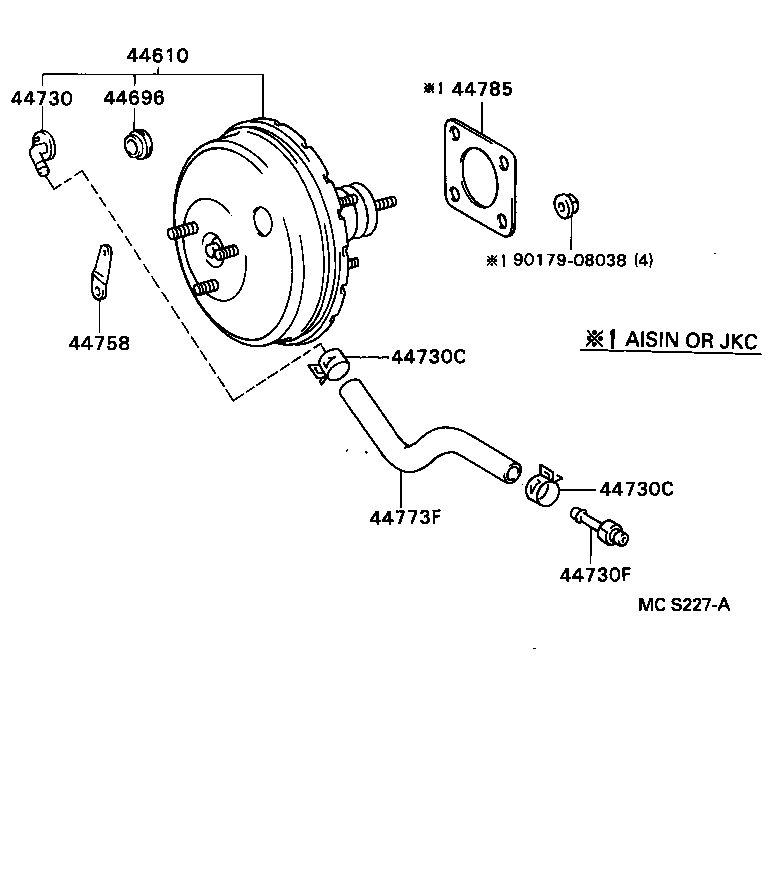

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44730F 44758 44773F 44785 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2D340

AT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
44610-2D260

AT190,ST191..JPP..RHD..(GL,XL)

 1
44610-2D681

AT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
44696 - GROMMET, CHECK VALVE
90480-24439

AT190,ST191..JPP..(GL,XL)

AISIN

 1
90480-24517

AT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
90480-24439

AT190,ST191..JPP..RHD..(GL,XL)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20110

ST191..JPP..LHD..GT;AT190,ST191..JPP..RHD..(GL,XL)

 1
44730-14050

AT190,ST191..JPP..RHD..(GL,XL)

 1
44730-28010

AT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST191..JPP..RHD..GL

 2
90467-16017

ST191..JPP..RHD..GL

W(*66)

 2
90467-16017

AT190,ST191..JPP..RHD

 2
90467-16002

AT190,ST191..JPP..RHD

 2
90467-16002

AT190,ST191..JPP..RHD..(GL,XL)

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST191..JPP..RHD..GL

 2
90467-16017

ST191..JPP..RHD..GL

W(*66)

 2
90467-16017

AT190,ST191..JPP..RHD

 2
90467-16002

AT190,ST191..JPP..RHD

 2
90467-16002

AT190,ST191..JPP..RHD..(GL,XL)

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

AT190,ST191..JPP

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20230

AT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
44758-20220

AT190,ST191..JPP..RHD..(GL,XL)

 1
44758-20220

AT190,ST191..JPP..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20820

ST191..JPP..RHD..GL

 1
44773-20840

ST191..JPP..RHD..GL

W(*66)

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AT190,CT190,ST191..JPP

 1
44785-32010

AT190,CT190,ST191..JPP

 1
Common parts
90179-08038
