ST191R-AEMVFW (1992)
Toyota Carina E Sed/Lb(Jpp)

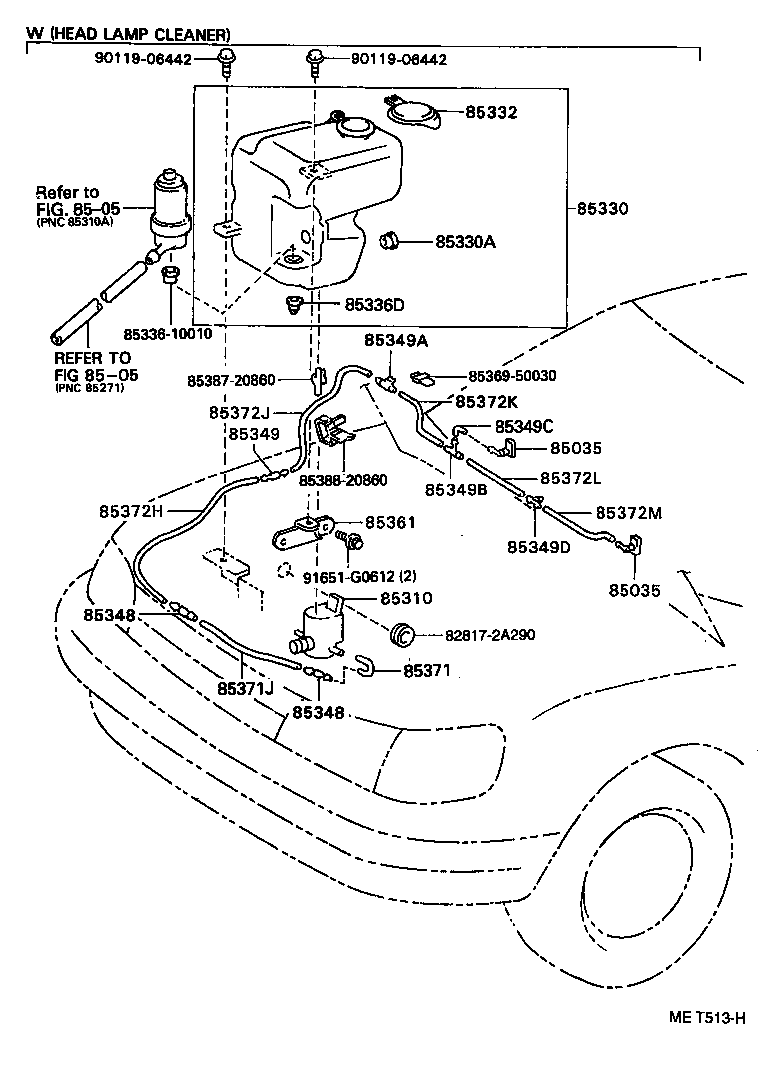

(9202- )JPP
NIPPONDENSO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20190 |
CT190..JPP..RHD..SED;AT190,ST191..JPP..SED W(*HC) |
1 | ||
| 85310-20190 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330-20430 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20300 |
AT190,CT190,ST191..JPP W(HEADLAMP CLEANER) |
1 | ||
| 85315-20330 |
AT190,CT190,ST191..JPP 4.5L |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-32089 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85316-20300 |
AT190,CT190,ST191..JPP |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP COLD SPEC |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP COLD SPEC |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP..SED |
3 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP..RHD;AT190,CT190,ST191..JPP..LHD..LB |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85361-20830 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361-20830 |
CT190..JPP..RHD;AT190,ST191..JPP W(*HC) & COLD SPEC |
1 | ||
| 85361-20840 |
AT190,CT190,ST191..JPP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP..SED L=1450 |
1 | ||
| 85317-20350 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP..RHD L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85371J - TUBE, RUBBER | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450,COLD SPEC & W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33068 |
ST191..JPP..SED;AT190..JPP..LHD..SED..MTM;AT190,CT190..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP L=490 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450,LH |
1 | ||
| Common parts | ||||
| 82817-2A290 | ||||
| 85336-10010 | ||||
| 85369-50030 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90119-06442 | ||||
| 91651-G0612 | ||||
| Linked diagrams | ||||
| 8505 | ||||

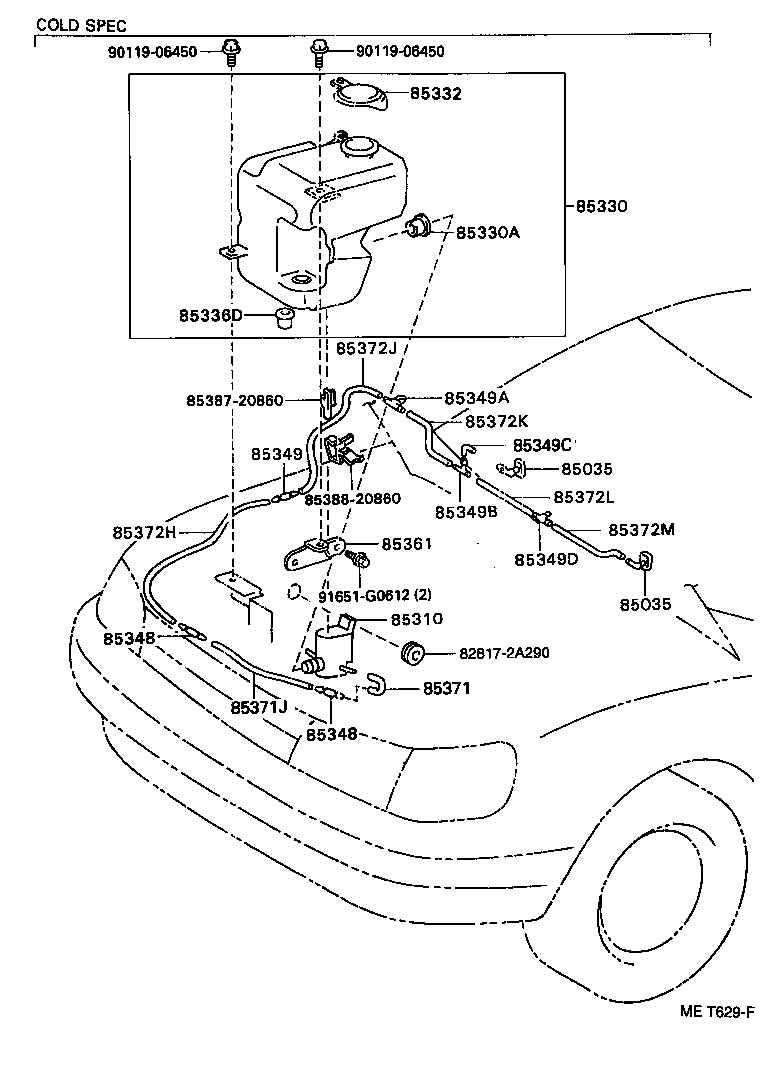

(9202-9308)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20190 |
CT190..JPP..RHD..SED;AT190,ST191..JPP..SED W(*HC) |
1 | ||
| 85310-20190 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330-20430 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20300 |
AT190,CT190,ST191..JPP W(HEADLAMP CLEANER) |
1 | ||
| 85315-20330 |
AT190,CT190,ST191..JPP 4.5L |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-32089 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85316-20300 |
AT190,CT190,ST191..JPP |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP COLD SPEC |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP..SED |
3 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP..RHD;AT190,CT190,ST191..JPP..LHD..LB |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85361-20830 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361-20830 |
CT190..JPP..RHD;AT190,ST191..JPP W(*HC) & COLD SPEC |
1 | ||
| 85361-20840 |
AT190,CT190,ST191..JPP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP..SED L=1450 |
1 | ||
| 85317-20350 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP..RHD L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33068 |
ST191..JPP..SED;AT190..JPP..LHD..SED..MTM;AT190,CT190..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP L=490 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450,LH |
1 | ||
| Common parts | ||||
| 82817-2A290 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90119-06450 | ||||
| 91651-G0612 | ||||

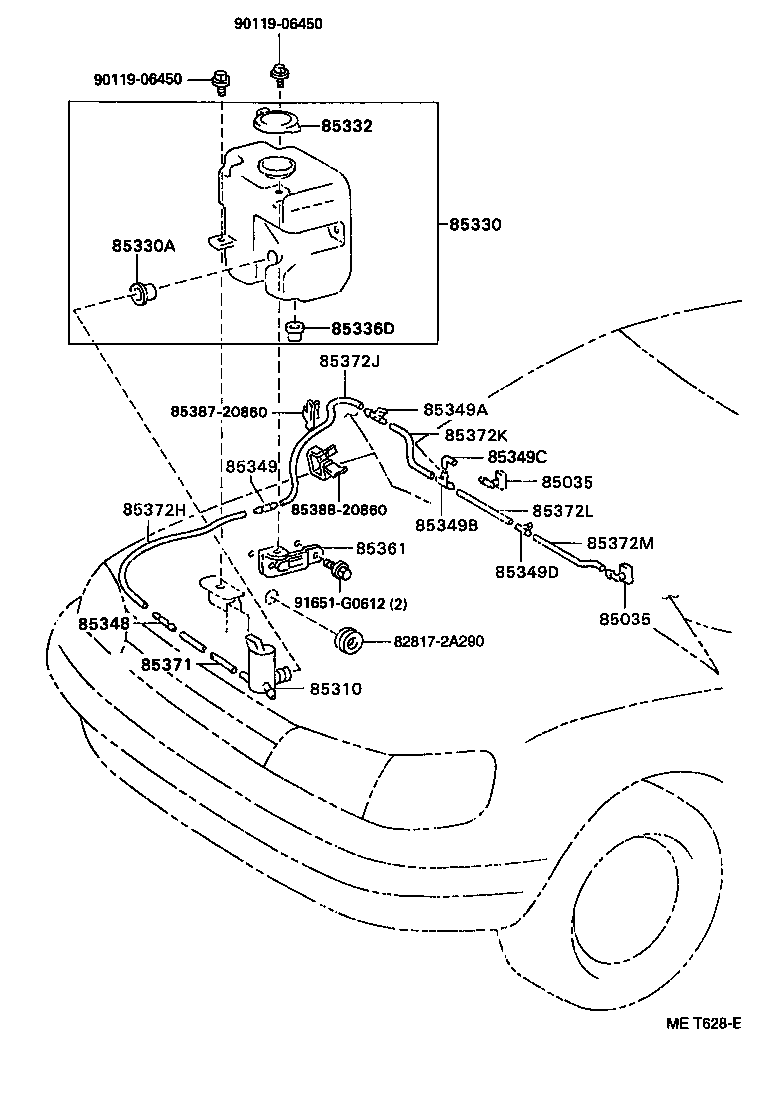

(9202-9308)JPP
NIPPONDENSO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20190 |
CT190..JPP..RHD..SED;AT190,ST191..JPP..SED W(*HC) |
1 | ||
| 85310-20190 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330-20430 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20300 |
AT190,CT190,ST191..JPP W(HEADLAMP CLEANER) |
1 | ||
| 85315-20330 |
AT190,CT190,ST191..JPP 4.5L |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-32089 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85316-20300 |
AT190,CT190,ST191..JPP |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP COLD SPEC |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP COLD SPEC |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP..SED |
3 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP..RHD;AT190,CT190,ST191..JPP..LHD..LB |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85361-20830 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361-20830 |
CT190..JPP..RHD;AT190,ST191..JPP W(*HC) & COLD SPEC |
1 | ||
| 85361-20840 |
AT190,CT190,ST191..JPP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP..SED L=1450 |
1 | ||
| 85317-20350 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP..RHD L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85371J - TUBE, RUBBER | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450,COLD SPEC & W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33068 |
ST191..JPP..SED;AT190..JPP..LHD..SED..MTM;AT190,CT190..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP L=490 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450,LH |
1 | ||
| Common parts | ||||
| 82817-2A290 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90119-06450 | ||||
| 91651-G0612 | ||||
(9308- )JPP
DELCO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20190 |
CT190..JPP..RHD..SED;AT190,ST191..JPP..SED W(*HC) |
1 | ||
| 85310-20190 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330-20430 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20300 |
AT190,CT190,ST191..JPP W(HEADLAMP CLEANER) |
1 | ||
| 85315-20330 |
AT190,CT190,ST191..JPP 4.5L |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-32089 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85316-20300 |
AT190,CT190,ST191..JPP |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP COLD SPEC |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP COLD SPEC |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP..SED |
3 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP..RHD;AT190,CT190,ST191..JPP..LHD..LB |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85361-20830 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361-20830 |
CT190..JPP..RHD;AT190,ST191..JPP W(*HC) & COLD SPEC |
1 | ||
| 85361-20840 |
AT190,CT190,ST191..JPP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP..SED L=1450 |
1 | ||
| 85317-20350 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP..RHD L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33068 |
ST191..JPP..SED;AT190..JPP..LHD..SED..MTM;AT190,CT190..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP L=490 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450,LH |
1 | ||
| Common parts | ||||
| 82817-2A290 | ||||
| 85369-50030 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90119-06450 | ||||
| 91651-G0612 | ||||
(9308- )JPP
W(HEADLAMP CLEANER), DELCO OR BOSCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-20020 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85381-20020 |
AT190,CT190,ST191..JPP..RHD RH |
1 | ||
| 85381-12050 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20190 |
CT190..JPP..RHD..SED;AT190,ST191..JPP..SED W(*HC) |
1 | ||
| 85310-20190 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330-20430 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20300 |
AT190,CT190,ST191..JPP W(HEADLAMP CLEANER) |
1 | ||
| 85315-20330 |
AT190,CT190,ST191..JPP 4.5L |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-32089 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85316-20300 |
AT190,CT190,ST191..JPP |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP COLD SPEC |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP COLD SPEC |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST191..JPP |
1 | ||
| 85334-22470 |
AT190,CT190,ST191..JPP..SED |
3 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP..RHD;AT190,CT190,ST191..JPP..LHD..LB |
1 | ||
| 85375-20800 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT190,CT190,ST191..JPP |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85361-20830 |
AT190,CT190,ST191..JPP |
1 | ||
| 85361-20830 |
CT190..JPP..RHD;AT190,ST191..JPP W(*HC) & COLD SPEC |
1 | ||
| 85361-20840 |
AT190,CT190,ST191..JPP |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP..SED L=1450 |
1 | ||
| 85317-20350 |
AT190,CT190,ST191..JPP |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP..RHD L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33068 |
ST191..JPP..SED;AT190..JPP..LHD..SED..MTM;AT190,CT190..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP..RHD..SED L=490 |
1 | ||
| 90099-33068 |
AT190,CT190,ST191..JPP L=490 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
CT190..JPP..RHD;AT190,ST191..JPP L=1450,W(*HC) |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450 |
1 | ||
| 90099-33080 |
AT190,CT190,ST191..JPP L=1450,LH |
1 | ||
| Common parts | ||||
| 82817-2A290 | ||||
| 85369-50030 | ||||
| 85373-05020 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90119-06450 | ||||
| 91651-G0612 | ||||
| Linked diagrams | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
