ST191R-AEMVFW (1992)
Toyota Carina E Sed/Lb(Jpp)

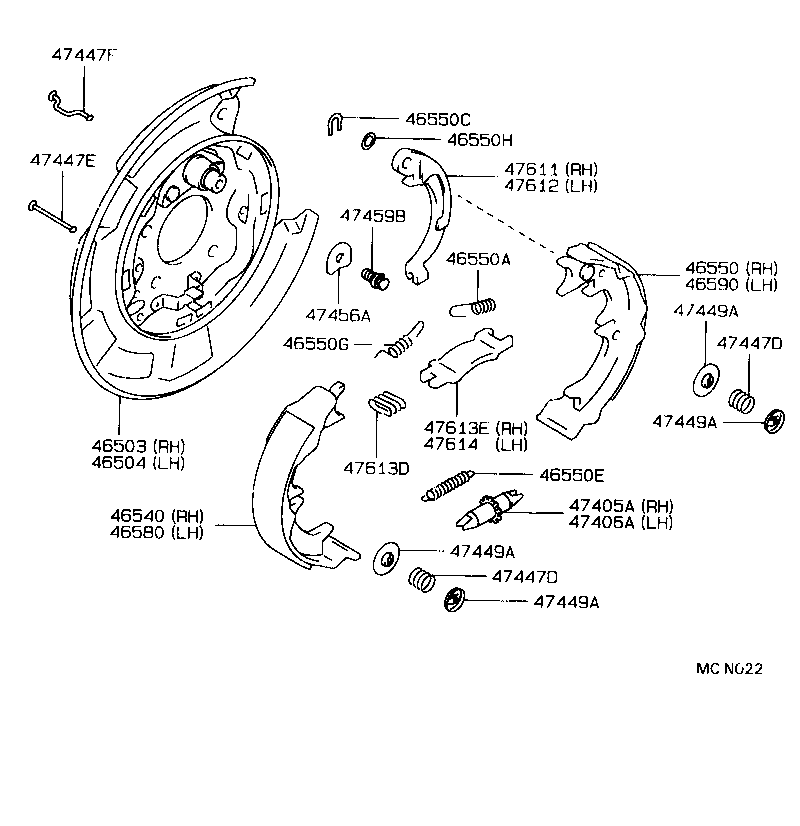

ILLUST NO. 2 OF 2(9202- )JPP..GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-20010 |
ST191..JPP..GT |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-20010 |
ST191..JPP..GT |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20060 |
ST191..JPP..GT |
1 | ||
| 46540-20040 |
ST191..JPP..GT |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-20060 |
ST191..JPP..GT |
1 | ||
| 46550-20040 |
ST191..JPP..GT |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
ST191..JPP..GT |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
ST191..JPP..GT |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
ST191..JPP..GT |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
ST191..JPP..GT |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09185 |
ST191..JPP..GT T=0.6 |
1 | ||
| 90564-09186 |
ST191..JPP..GT T=0.9 |
1 | ||
| 90564-09184 |
ST191..JPP..GT T=0.3 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20060 |
ST191..JPP..GT |
1 | ||
| 46540-20040 |
ST191..JPP..GT |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-20040 |
ST191..JPP..GT |
1 | ||
| 46590-20060 |
ST191..JPP..GT |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
ST191..JPP..GT |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
ST191..JPP..GT |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
ST191..JPP..GT |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
ST191..JPP..GT |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
ST191..JPP..GT |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
ST191..JPP..GT |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
ST191..JPP..GT INNER |
4 | ||
| 47449-30030 |
ST191..JPP..GT OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
ST191..JPP..GT INNER |
4 | ||
| 47449-30030 |
ST191..JPP..GT OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
ST191..JPP..GT INNER |
4 | ||
| 47449-30030 |
ST191..JPP..GT OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
ST191..JPP..GT INNER |
4 | ||
| 47449-30030 |
ST191..JPP..GT OUTER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
ST191..JPP..GT |
2 | ||
| 47456-20030 |
ST191..JPP..GT |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
ST191..JPP..GT |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-20030 |
ST191..JPP..GT |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
ST191..JPP..GT |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
ST191..JPP..GT |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
ST191..JPP..GT |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
ST191..JPP..GT |
1 | ||
ILLUST NO. 1 OF 2(9202- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-20250C0 |
ST191..JPP..RHD..GT BLACK,TRIM2# |
1 | ||
| 46201-20250C0 |
ST191..JPP..RHD..GT BLACK,TRIM1# |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-20120 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
AT190,CT190,ST191..JPP |
1 | ||
| 46341-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 46341-12020 |
AT190,CT190,ST191..JPP |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-20380 |
AT190,CT190,ST191..JPP |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-20360 |
ST191..JPP..GT |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01771 |
AT190,CT190,ST191..JPP |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01772 |
AT190,CT190,ST191..JPP |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01709 |
AT190,CT190,ST191..JPP |
1 | ||
| 46451-20020 |
AT190,CT190,ST191..JPP |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46451-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 90949-01711 |
AT190,CT190,ST191..JPP |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-20450 |
ST191..JPP..GT |
1 | ||
| Common parts | ||||
| 90080-17099 | ||||
| 90119-06198 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90179-06242 | ||||
| 91611-60612 | ||||
| 91651-60830 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
