ST191L-ALPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP

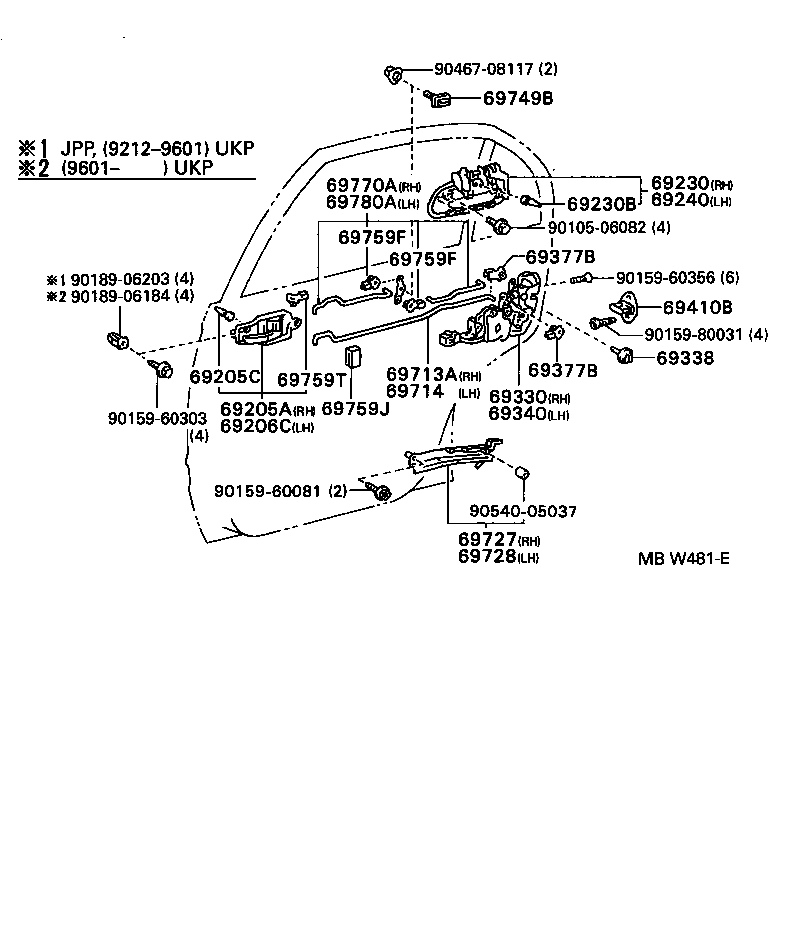

Click highlighted areas on diagram

diagram 69205A 69205C 69206C 69230 69230B 69240 69330 69338 69340 69377B 69377B 69410B 69713A 69714 69727 69728 69749B 69759F 69759F 69759J 69759T 69770A 69780A 9010506082 9015960081 9015960303 9015960356 9015980031 9018906184 9018906203 9046708117 9054005037
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-20110C0

AT190,CT190,ST191..JPP

BLACK,TRIM2#

 1
69205-20110J0

AT190,CT190,ST191..JPP..(GL,XL)

DARK BLUE,TRIM8#

 1
69205-20110B0

AT190,CT190,ST191..JPP

SHADOW GRAY,TRIM1#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

AT190,CT190,ST191..JPP

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-20110C0

AT190,CT190,ST191..JPP

BLACK,TRIM2#

 1
69206-20110B0

AT190,CT190,ST191..JPP

SHADOW GRAY,TRIM1#

 1
69206-20110J0

AT190,CT190,ST191..JPP..(GL,XL)

DARK BLUE,TRIM8#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-20210

AT190,CT190,ST191..JPP..(GL,XL)

NO PAINT REQ.

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04018

AT190,CT190,ST191..JPP

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-20210

AT190,CT190,ST191..JPP..(GL,XL)

BLACK

 1
69330 - LOCK ASSY, REAR DOOR, RH
69305-20050

ST191..JPP..LHD..GL;AT190,CT190..JPP..XL

 1
69305-20060

ST191..JPP..LHD..GL;AT190,CT190..JPP..LHD..XL

W(POWER WINDOW) OR W(ELECTROMAGNETIC LOCK)

 1
69305-20050

ST191..JPP..LHD..GL;AT190,CT190..JPP..LHD..XL

 1
69305-20060

ST191..JPP..LHD..GL

W(POWER WINDOW)

 1
69305-20060

ST191..JPP..LHD..GL;AT190,CT190..JPP..XL

W(POWER WINDOW) OR W(ELECTROMAGNETIC LOCK)

 1
69338 - KNOB, CHILD PROTECTOR LOCK LEVER
69338-32010

AT190,CT190,ST191..JPP

 2
69340 - LOCK ASSY, REAR DOOR, LH
69306-20050

ST191..JPP..LHD..GL;AT190,CT190..JPP..XL

 1
69306-20060

ST191..JPP..LHD..GL;AT190,CT190..JPP..XL

W(POWER WINDOW) OR W(ELECTROMAGNETIC LOCK)

 1
69306-20060

ST191..JPP..LHD..GL;AT190,CT190..JPP..LHD..XL

W(POWER WINDOW) OR W(ELECTROMAGNETIC LOCK)

 1
69306-20050

ST191..JPP..LHD..GL;AT190,CT190..JPP..LHD..XL

 1
69306-20060

ST191..JPP..LHD..GL

W(POWER WINDOW)

 1
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-24060

AT190,CT190,ST191..JPP

RH

 2
69759-24050

AT190,CT190,ST191..JPP

LH

 2
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-24060

AT190,CT190,ST191..JPP

RH

 2
69759-24050

AT190,CT190,ST191..JPP

LH

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20070

AT190,CT190,ST191..JPP

 2
69410-87001

AT190,CT190,ST191..JPP

 2
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-20140

AT190,CT190,ST191..JPP

 1
69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-20140

AT190,CT190,ST191..JPP

 1
69727 - PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69727-20030

AT190,CT190,ST191..JPP

 1
69728 - PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69728-20030

AT190,CT190,ST191..JPP

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32030

AT190,CT190,ST191..JPP

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24030

AT190,CT190,ST191..JPP

RED

 2
69759-20380

AT190,CT190,ST191..JPP

BLACK

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24030

AT190,CT190,ST191..JPP

RED

 2
69759-20380

AT190,CT190,ST191..JPP

BLACK

 2
69759J - SILENCER, DOOR LOCK LINK
69759-20390

AT190,CT190,ST191..JPP

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-24070

AT190,CT190,ST191..JPP

LH

 2
69759-14050

AT190,CT190,ST191..JPP

RH

 2
69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH
69770-20090

AT190,CT190,ST191..JPP

 1
69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH
69780-20090

AT190,CT190,ST191..JPP

 1
Common parts
90105-06082
90159-60081
90159-60303
90159-60356
90159-80031
90189-06184
90189-06203
90467-08117
90540-05037
