ST191L-ALPNKW (1992)
Toyota Carina E Sed/Lb(Jpp)

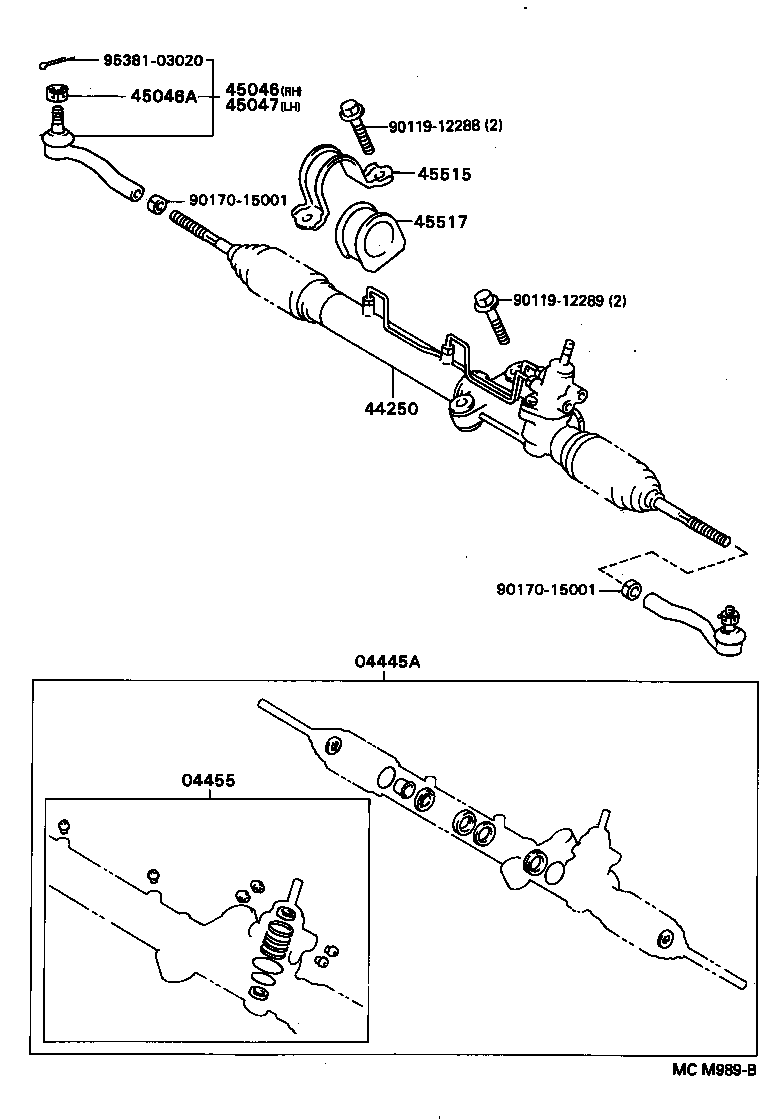

ILLUST NO. 1 OF 2(9202-9601)JPP..LHD
POWER STEERING, TOYODA KOKI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20161 |
AT190,CT190,ST191..JPP |
1 | ||
| 04445-20160 |
AT190,CT190,ST191..JPP |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20120 |
AT190,CT190,ST191..JPP |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20581 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 44250-20580 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29275 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45046-29335 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AT190,CT190,ST191..JPP |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-29105 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45047-29075 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-20210 |
AT190,ST191..JPP..LHD..GL |
1 | ||
| 45515-20210 |
AT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-20180 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 45517-20180 |
AT190..JPP..LHD..GL;CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| Common parts | ||||
| 90119-12288 | ||||
| 90119-12289 | ||||
| 90170-15001 | ||||
| 95381-03020 | ||||

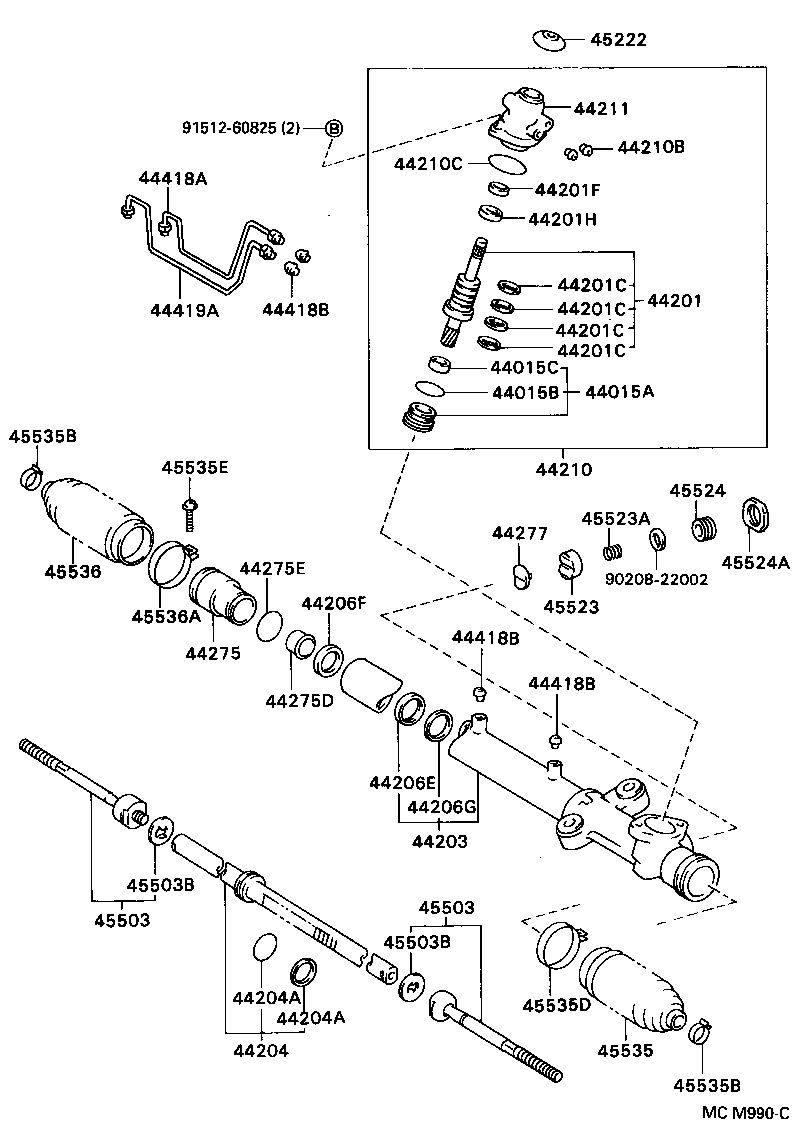

ILLUST NO. 2 OF 2(9202-9601)JPP..LHD
POWER STEERING, TOYODA KOKI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
AT190,CT190,ST191..JPP |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
AT190,CT190,ST191..JPP |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
AT190,CT190,ST191..JPP |
1 | ||
| 90310-25020 |
AT190,CT190,ST191..JPP |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-20311 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 44201-20310 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
AT190,CT190,ST191..JPP |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
AT190,CT190,ST191..JPP |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
AT190,CT190,ST191..JPP |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
AT190,CT190,ST191..JPP |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
AT190,CT190,ST191..JPP |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19003 |
AT190,CT190,ST191..JPP |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-20320 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-20280 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36005 |
AT190,CT190,ST191..JPP INNER |
1 | ||
| 90562-39001 |
AT190,CT190,ST191..JPP OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36005 |
AT190,CT190,ST191..JPP INNER |
1 | ||
| 90562-39001 |
AT190,CT190,ST191..JPP OUTER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25017 |
AT190,CT190,ST191..JPP |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25017 |
AT190,CT190,ST191..JPP |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-26013 |
AT190,CT190,ST191..JPP |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-20400 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 44210-20401 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
AT190,CT190,ST191..JPP |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
AT190,CT190,ST191..JPP |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20160 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-20110 |
AT190,CT190,ST191..JPP |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-25004 |
AT190,CT190,ST191..JPP |
1 | ||
| 44275E - RING, O(FOR RACK END GUIDE) | ||||
| 90301-38003 |
AT190,CT190,ST191..JPP |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-20250 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
AT190,CT190,ST191..JPP CONTROL VALVE SIDE |
2 | ||
| 90410-04002 |
AT190,CT190,ST191..JPP CYLINDER TUBE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
AT190,CT190,ST191..JPP CONTROL VALVE SIDE |
2 | ||
| 90410-04002 |
AT190,CT190,ST191..JPP CYLINDER TUBE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04001 |
AT190,CT190,ST191..JPP CONTROL VALVE SIDE |
2 | ||
| 90410-04002 |
AT190,CT190,ST191..JPP CYLINDER TUBE SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-20240 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
AT190,CT190,ST191..JPP |
1 | ||
| 45222-32010 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29435 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503-29435 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503-29615 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29435 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503-29435 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503-29615 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
AT190,CT190,ST191..JPP OD=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
AT190,CT190,ST191..JPP OD=37 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-20050 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 45523-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 90501-23007 |
AT190,CT190,ST191..JPP |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
AT190,CT190,ST191..JPP |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-20080 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535-20190 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535-20080 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 90467-19018 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 90467-19018 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49002 |
AT190,CT190,ST191..JPP |
1 | ||
| 90460-49002 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30004 |
AT190,CT190,ST191..JPP |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-20080 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535-20080 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535-20190 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-49002 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 90460-49002 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90208-22002 | ||||
| 91512-60825 | ||||

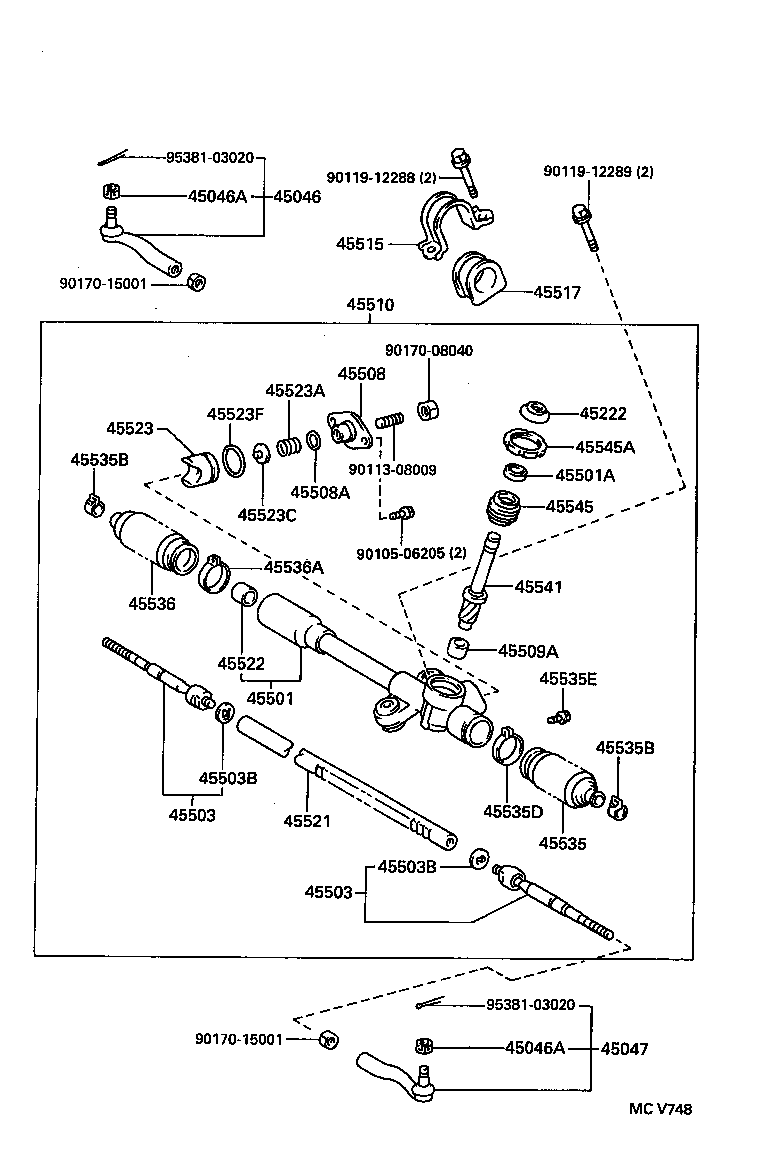

(9202-9501)JPP
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29275 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45046-29335 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AT190,CT190,ST191..JPP |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AT190,CT190,ST191..JPP |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-29105 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45047-29075 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
AT190,CT190,ST191..JPP |
1 | ||
| 45222-32010 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29435 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503-29435 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503-29615 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29435 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503-29435 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503-29615 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
AT190,CT190,ST191..JPP OD=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
AT190,CT190,ST191..JPP OD=37 |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-20210 |
AT190,ST191..JPP..LHD..GL |
1 | ||
| 45515-20210 |
AT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-20180 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 45517-20180 |
AT190..JPP..LHD..GL;CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-20050 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 45523-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 90501-23007 |
AT190,CT190,ST191..JPP |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-20080 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535-20190 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535-20080 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 90467-19018 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 90467-19018 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49002 |
AT190,CT190,ST191..JPP |
1 | ||
| 90460-49002 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30004 |
AT190,CT190,ST191..JPP |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-20080 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535-20080 |
AT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45535-20190 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-49002 |
AT190..JPP..RHD;CT190,ST191..JPP;AT190..JPP..LHD..GL |
1 | ||
| 90460-49002 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90105-06205 | ||||
| 90113-08009 | ||||
| 90119-12288 | ||||
| 90119-12289 | ||||
| 90170-08040 | ||||
| 90170-15001 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
