ST191L-ALMVFW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP..LB

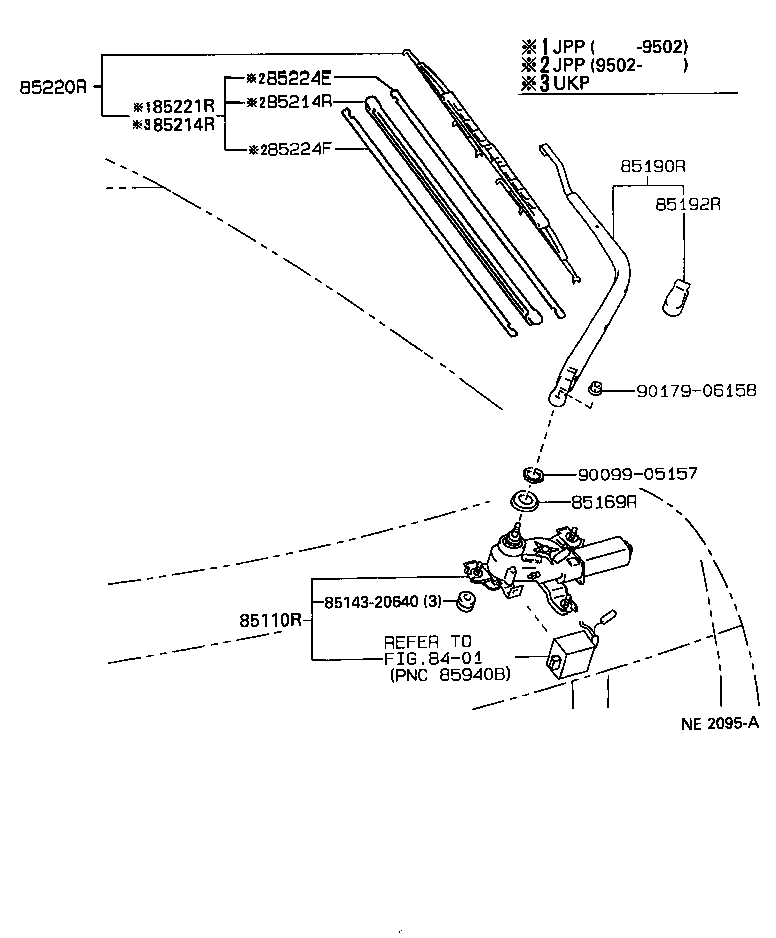

Click highlighted areas on diagram

diagram 8401 85110R 8514320640 85169R 85190R 85192R 85214R 85214R 85220R 85221R 85224E 85224F 9009905157 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-20700

AT190,CT190,ST191..JPP..LB

 1
85130-20700

AT190,CT190,ST191..JPP..LHD..LB

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85134-20700

AT190,CT190,ST191..JPP..LB

 1
85134-20700

AT190,CT190,ST191..JPP..LHD..LB

 1
85190R - ARM ASSY, REAR WIPER
85241-20030

AT190,CT190,ST191..JPP..LHD..LB

 1
85241-20030

AT190,CT190,ST191..JPP..LB

 1
85192R - COVER, REAR WIPER ARM
85245-20020

AT190,CT190,ST191..JPP..LB

 1
85214R - RUBBER, REAR WIPER
85214-20290

AT190,CT190,ST191..JPP..LB

 1
85214R - RUBBER, REAR WIPER
85214-20290

AT190,CT190,ST191..JPP..LB

 1
85220R - BLADE ASSY, REAR WIPER
85242-20030

AT190,CT190,ST191..JPP..LHD..LB

 1
85242-20030

AT190,CT190,ST191..JPP..LB

 1
85221R - BLADE, REAR WIPER
85243-20020

AT190,CT190,ST191..JPP..LB

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-30380

AT190,CT190,ST191..JPP..LB

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-30380

AT190,CT190,ST191..JPP..LB

 1
Common parts
85143-20640
90099-05157
90179-06158
Linked diagrams
8401
