ST191L-ALMVFW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )CT190,ST191..JPP..MTM

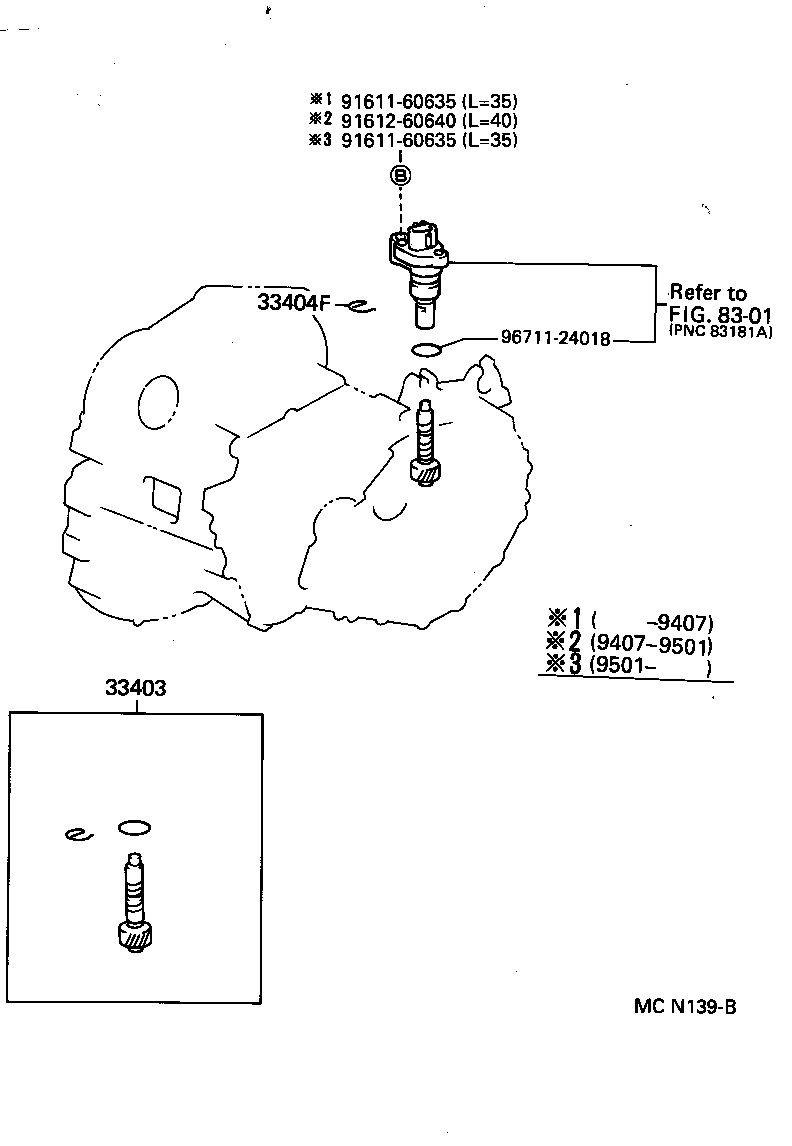

Click highlighted areas on diagram

S50,S54

diagram 33403 33404F 8301 9161160635 9161160635 9161260640 9671124018
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19495

ST191..JPP..GT

N=21,MARK 21:25

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AT190,CT190,ST191..JPP..MTM

 1
Common parts
91611-60635
91612-60640
96711-24018
Linked diagrams
8301
