ST191L-ALMNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP..LB

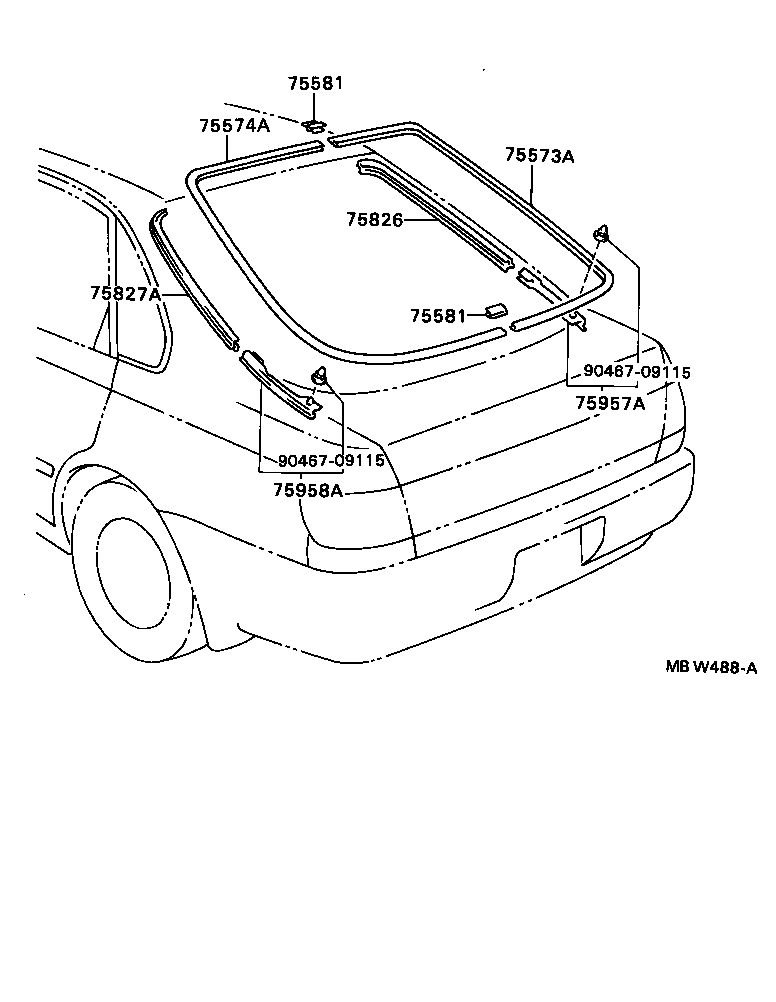

Click highlighted areas on diagram

diagram 75573A 75574A 75581 75581 75826 75827A 75957A 75958A 9046709115 9046709115
Part # Description Qty Price
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-20300

AT190,CT190,ST191..JPP..LB

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75574-20280

AT190,CT190,ST191..JPP..LB

 1
75581 - COVER, BACK WINDOW MOULDING JOINT, UPPER
75581-20190

AT190,CT190,ST191..JPP..LB

 2
75581 - COVER, BACK WINDOW MOULDING JOINT, UPPER
75581-20190

AT190,CT190,ST191..JPP..LB

 2
75826 - PAD, BACK DOOR OUTSIDE MOULDING, RH
75826-20050

AT190,CT190,ST191..JPP..LB

 1
75827A - PAD, BACK DOOR OUTSIDE MOULDING, LH
75827-20020

AT190,CT190,ST191..JPP..LB

 1
75957A - PAD, BACK WINDOW MOULDING, LOWER RH
75957-20030

AT190,CT190,ST191..JPP..LB

 1
75958A - PAD, BACK WINDOW MOULDING, LOWER LH
75958-20030

AT190,CT190,ST191..JPP..LB

 1
Common parts
90467-09115
