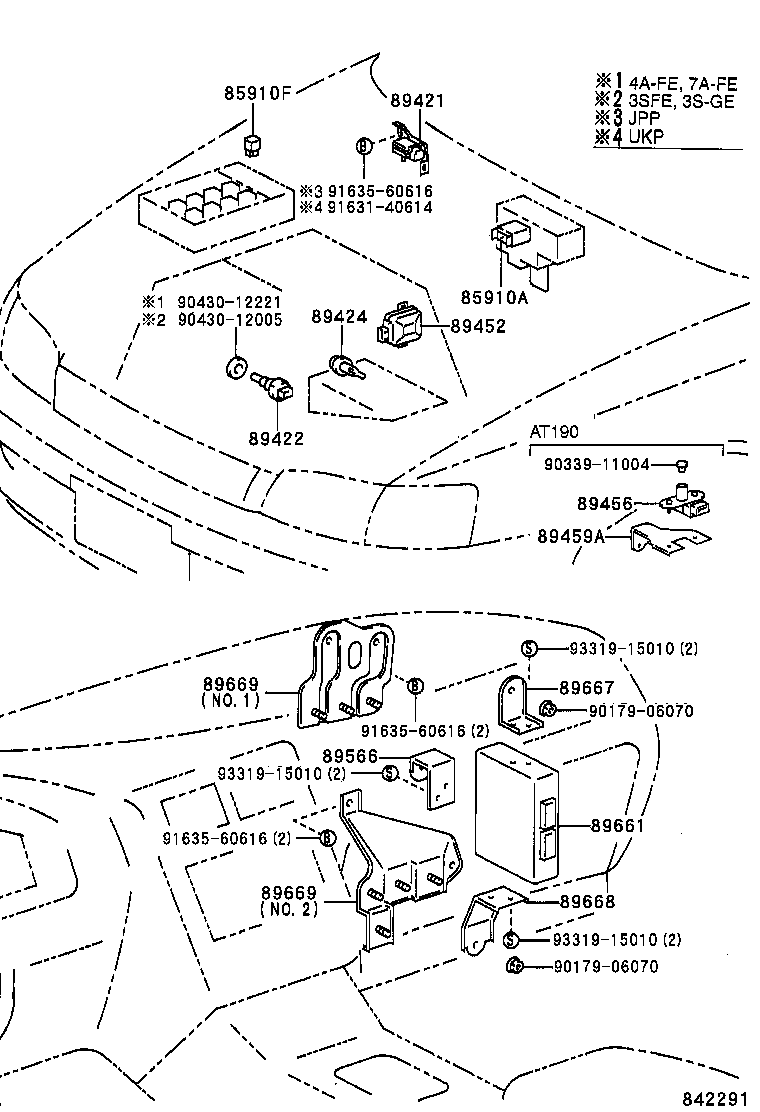

Toyota Carina e sed/lb(jpp) ST191 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-12010	AT190,ST191..JPP	02/1992 - 01/1996	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009	AT190,ST191..JPP	02/1992 - 01/1996	1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-20230	ST191..JPP..GL	02/1992 - 01/1996	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010	ST191..JPP;AT190..JPP..RHD..MTM	02/1992 - 02/1994	1
89422-20010	ST191..JPP..GL;AT190..JPP..RHD..MTM	02/1994 - 01/1996	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	AT190,ST191..JPP	02/1992 - 01/1996	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090	AT190,ST191..JPP..(GL,XL)	02/1992 - 02/1994	1
89452-22090	AT190,ST191..JPP	02/1994 - 01/1996	1
89566 - BRACKET, FUEL INJECTION COMPUTER
89566-20020	AT190,ST191..JPP	02/1992 - 01/1996	1
89661 - COMPUTER, ENGINE CONTROL
89661-2B490	ST191..JPP..ATM	02/1992 - 02/1994	1
89661-2D010	ST191..JPP..ATM	02/1994 - 01/1996	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-20220	AT190,ST191..JPP	02/1992 - 01/1996	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20190	AT190,ST191..JPP	02/1992 - 01/1996	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-20180	AT190,ST191..JPP..LHD NO.1	02/1992 - 01/1996	1
89669-20190	AT190,ST191..JPP..LHD NO.2	02/1992 - 01/1996	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-20180	AT190,ST191..JPP..LHD NO.1	02/1992 - 01/1996	1
89669-20190	AT190,ST191..JPP..LHD NO.2	02/1992 - 01/1996	1
Common parts
90179-06070
90339-11004
90430-12005
90430-12221
91631-40614
91635-60616
93319-15010

ST191L-AEPNKW (1992)
