ST191L-AEPNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202- )ST191..JPP..LHD..GL

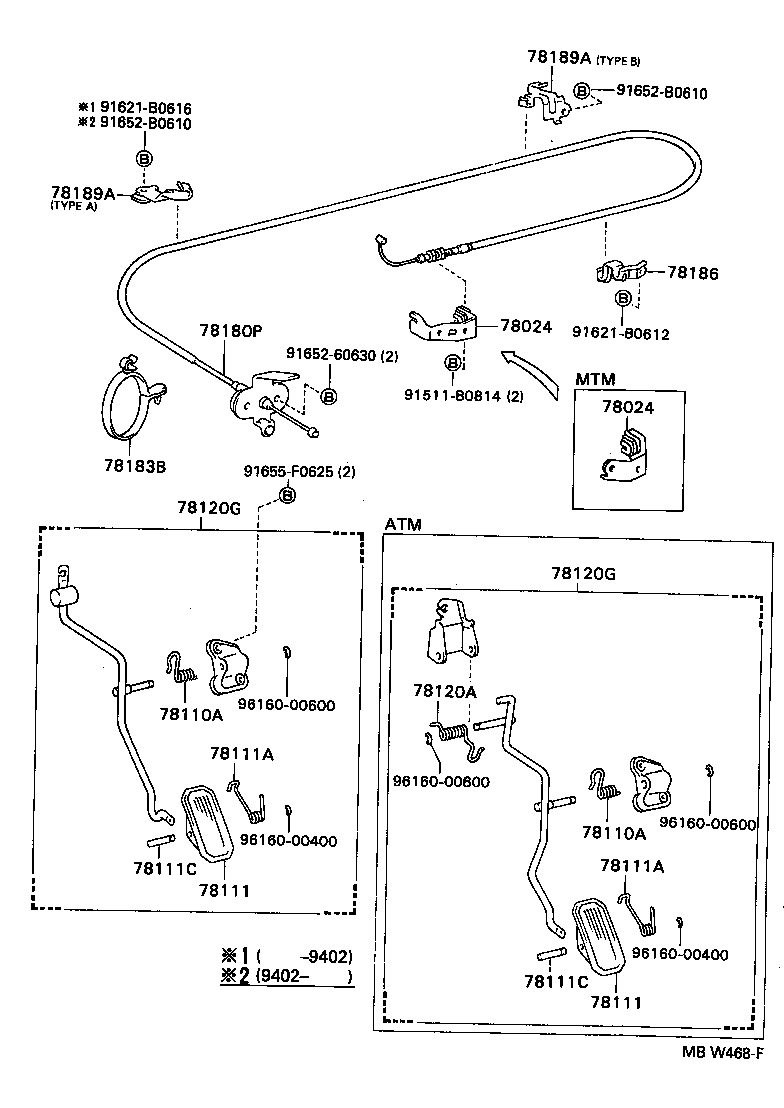

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20140 |
ST191..JPP..ATM |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20140 |
ST191..JPP..ATM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18072 |
AT190..JPP..LHD;ST191..JPP..LHD..ATM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18072 |
AT190..JPP..LHD;ST191..JPP..LHD..ATM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
CT190..JPP..LHD;AT190,ST191..JPP |
1 | ||
| 78111-32010 |
AT190,CT190,ST191..JPP |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
CT190..JPP..LHD;AT190,ST191..JPP |
1 | ||
| 78111-32010 |
AT190,CT190,ST191..JPP |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AT190,ST191..JPP..LHD..ATM;AT190,CT190,ST191..JPP..RHD |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AT190,ST191..JPP..LHD..ATM;AT190,CT190,ST191..JPP..RHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT190,CT190,ST191..JPP |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT190,CT190,ST191..JPP |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-29021 |
AT190,ST191..JPP..LHD..ATM |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20520 |
AT190,ST191..JPP..LHD..ATM |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20520 |
AT190,ST191..JPP..LHD..ATM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2B791 |
ST191..JPP..LHD..ATM |
1 | ||
| 78180-2B790 |
ST191..JPP..LHD..ATM |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20270 |
AT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-20150 |
ST191..JPP..ATM;ST191..JPP..LHD..MTM..GL |
1 | ||
| 78186-20150 |
ST191..JPP..GL |
1 | ||
| 78186-20150 |
ST191..JPP..LHD..GL |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-20140 |
ST191..JPP..LHD..GL TYPE B |
1 | ||
| 78189-20130 |
ST191..JPP..LHD..GL TYPE A |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-20140 |
ST191..JPP..LHD..GL TYPE B |
1 | ||
| 78189-20130 |
ST191..JPP..LHD..GL TYPE A |
1 | ||
| Common parts | ||||
| 91511-B0814 | ||||
| 91621-B0612 | ||||
| 91621-B0616 | ||||
| 91652-60630 | ||||
| 91652-B0610 | ||||
| 91655-F0625 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
