ST191L-AEMVFW (1992)
Toyota Carina E Sed/Lb(Jpp)
Production
Feb 1992
-
Jan 1996
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )ST191..JPP..LHD

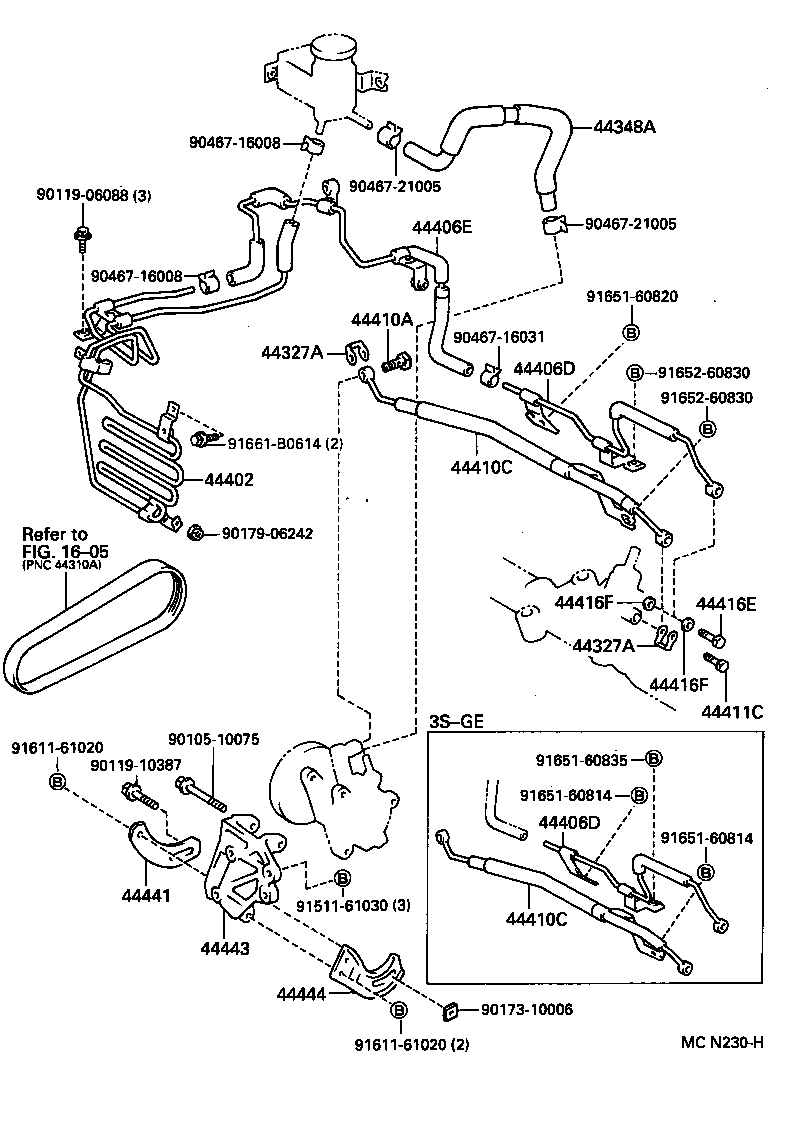

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT190,CT190,ST191..JPP..LHD |
2 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT190,CT190,ST191..JPP..LHD |
2 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20410 |
ST191..JPP..LHD..GT |
1 | ||
| 44348-20401 |
ST191..JPP..GT |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-20410 |
ST191..JPP |
1 | ||
| 44406D - TUBE SUB-ASSY, RETURN, NO.1 | ||||
| 44406-20510 |
ST191..JPP..LHD..GT |
1 | ||
| 44406D - TUBE SUB-ASSY, RETURN, NO.1 | ||||
| 44406-20510 |
ST191..JPP..LHD..GT |
1 | ||
| 44406E - TUBE SUB-ASSY, RETURN, NO.2 | ||||
| 44406-20500 |
ST191..JPP..LHD..GT |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AT190,CT190,ST191..JPP |
1 | ||
| 44410C - TUBE ASSY, PRESSURE FEED, NO.1 | ||||
| 44410-20740 |
ST191..JPP..LHD..GT |
1 | ||
| 44410C - TUBE ASSY, PRESSURE FEED, NO.1 | ||||
| 44410-20740 |
ST191..JPP..LHD..GT |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 96341-41603 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-11703 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 90401-17002 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
AT190,CT190,ST191..JPP..LHD |
2 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
AT190,CT190,ST191..JPP..LHD |
2 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-32010 |
ST191..JPP |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
ST191..JPP |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
ST191..JPP |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06088 | ||||
| 90119-10387 | ||||
| 90173-10006 | ||||
| 90179-06242 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91511-61030 | ||||
| 91611-61020 | ||||
| 91651-60814 | ||||
| 91651-60820 | ||||
| 91651-60835 | ||||
| 91652-60830 | ||||
| 91661-B0614 | ||||
| Linked diagrams | ||||
| 1605 | ||||
