ST191L-AEMNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2G420J0 |
AT190,ST191..JPP..SED..GL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2G430J0 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2D880J0 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW),DK. BLUE,TRIM8# |
1 | ||
| 67630-2D850C1 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67630-2G430C0 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G420C0 |
AT190,ST191..JPP..SED..GL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G440C1 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2D880C1 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67630-2G250J0 |
AT190,ST191..JPP..SED..GL DK. BLUE,TRIM8# |
1 | ||
| 67630-2G250C0 |
AT190,ST191..JPP..SED..GL BLACK,TRIM2# |
1 | ||
| 67630-2G420C0 |
ST191..JPP..LHD..SED..GL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G440C1 |
ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPORTS SEAST & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G430C0 |
ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G420J0 |
ST191..JPP..LHD..SED..GL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2D880C1 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67630-2G430J0 |
ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2D880J0 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW),DK. BLUE,TRIM8# |
1 | ||
| 67630-2D850C1 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67630-2G25020 |
AT190,ST191..JPP..SED..GL BLACK,TRIM2# |
1 | ||
| 67630-2G250J5 |
AT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 67630-2G420C4 |
AT190,ST191..JPP..SED..GL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G420J4 |
AT190,ST191..JPP..SED..GL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2G430C4 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2D850B0 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(SPORTS SEAT & *PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2G430J4 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2G440C1 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPORTS SEAST & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G440B0 |
AT190..JPP..RHD..SED..GL;ST191..JPP..LHD..SED..GL W(SPORTS SEAT & *PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H670B0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H670J0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2H680B1 |
AT190..JPP..RHD..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H680J1 |
AT190..JPP..RHD..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2H720J0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 67630-2H810B0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H720B1 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H810J0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-20110 |
AT190,CT190,ST191..JPP..SED |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2G440C0 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G440J0 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2G430C0 |
AT190,ST191..JPP..SED..GL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G430J0 |
AT190,ST191..JPP..SED..GL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2G450C1 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2D780C1 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67640-2G020C1 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67640-2G020J0 |
AT190,ST191..JPP..SED..GL W(POWER WINDOW),DK. BLUE,TRIM8# |
1 | ||
| 67640-2G240J0 |
AT190,ST191..JPP..SED..GL DK. BLUE,TRIM8# |
1 | ||
| 67640-2G240C0 |
AT190,ST191..JPP..SED..GL BLACK,TRIM2# |
1 | ||
| 67640-2G440J0 |
ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2G440C0 |
ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G430C0 |
ST191..JPP..LHD..SED..GL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G430J0 |
ST191..JPP..LHD..SED..GL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2G020C1 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67640-2G450C1 |
ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPORTS SEAST & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G020J0 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW),DK. BLUE,TRIM8# |
1 | ||
| 67640-2D780C1 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 67640-2G240J5 |
AT190,ST191..JPP..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 67640-2G24020 |
AT190,ST191..JPP..SED..GL BLACK,TRIM2# |
1 | ||
| 67640-2G430C4 |
AT190,ST191..JPP..SED..GL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G430J4 |
AT190,ST191..JPP..SED..GL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2G440C4 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G450C1 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPORTS SEAST & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G440J4 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2D780B0 |
AT190..JPP..SED..GL;ST191..JPP..LHD..SED..GL W(SPORTS SEAT & *PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2G450B0 |
AT190..JPP..RHD..SED..GL;ST191..JPP..LHD..SED..GL W(SPORTS SEAT & *PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H630J0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2H640B1 |
AT190..JPP..RHD..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H630B0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H640J1 |
AT190..JPP..RHD..SED..GL;ST191..JPP..LHD..SED..GL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2H680J0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL DK.BLUE,TRIM8# |
1 | ||
| 67640-2H680B1 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H760J0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 67640-2H760B0 |
ST191..JPP..SED..GL;AT190..JPP..RHD..SED..GL W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-20110 |
AT190,CT190,ST191..JPP..SED |
7 | ||
| 67609C - GRILLE SUB-ASSY, REAR DOOR SPEAKER | ||||
| 67653-20010J1 |
AT190,CT190,ST191..JPP..(GL,XL) DK. BLUE,TRIM8# |
2 | ||
| 67653-20010J1 |
AT190,CT190..JPP;ST191..JPP..SED..GL;ST191..JPP..LHD..LB..GL DK. BLUE,TRIM8# |
2 | ||
| 67653-20010C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
2 | ||
| 67653-20010C1 |
ST191..JPP..SED;AT190,CT190..JPP;ST191..JPP..LHD..LB;ST191..JPP..RHD..LB..GT BLACK,TRIM2# |
2 | ||
| 67653-20010C1 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT BLACK,TRIM2# |
2 | ||
| 67653-20010J1 |
AT190,CT190..JPP;ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
2 | ||
| 67653-20010B2 |
AT190..JPP;ST191..JPP..LHD;ST191..JPP..RHD..GT SHADOW GRAY,TRIM1# |
2 | ||
| 67653-20010J1 |
AT190..JPP;ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 67771-20100 | ||||
| 67772-20060 | ||||
| 90159-50326 | ||||
| 90168-40068 | ||||
| 90183-03026 | ||||
| 90183-03092 | ||||
| 90183-05016 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| Linked diagrams | ||||
| 7401 | ||||

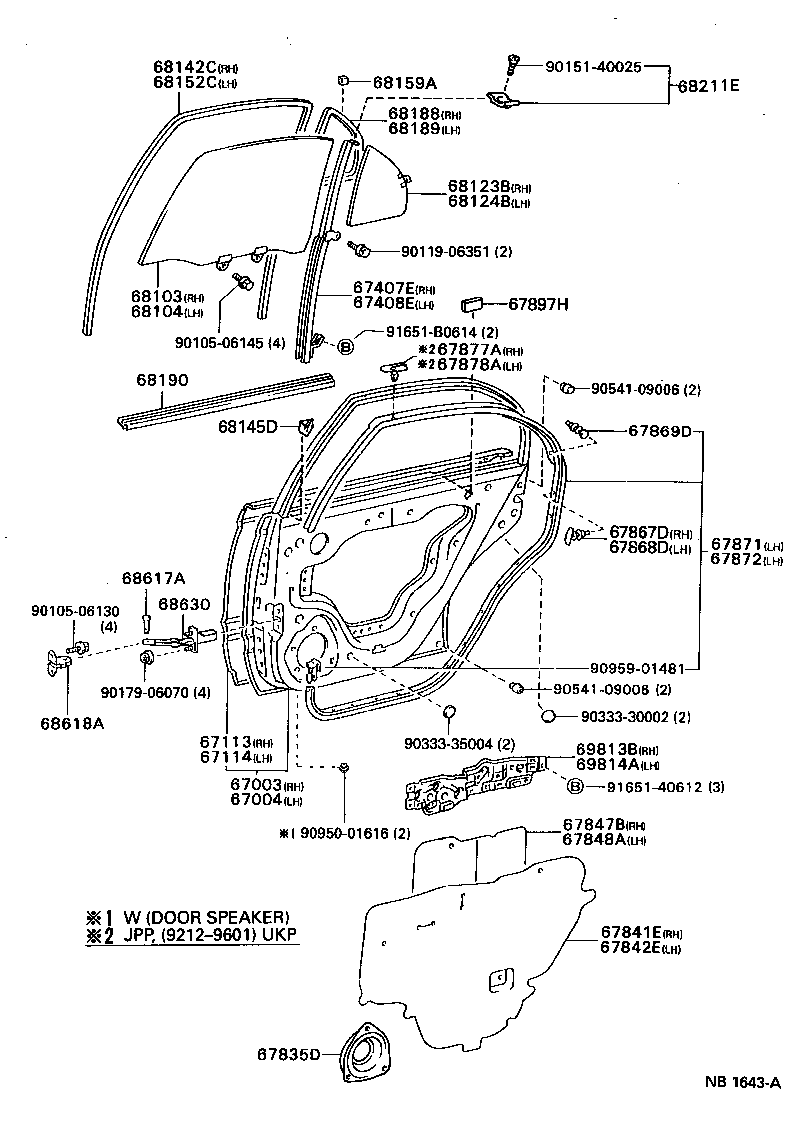

(9202- )JPP..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-20652 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 67003-20650 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-20660 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 67004-20662 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-20210 |
AT190,CT190,ST191..JPP |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-20210 |
AT190,CT190,ST191..JPP |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-20200 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-20190 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 67835D - COVER, REAR DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-20060 |
AT190,CT190,ST191..JPP |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67805-20040 |
AT190,ST191..JPP..(GL,GT) W(DOOR SPEAKER) |
1 | ||
| 67805-20040 |
ST191..JPP..GL;ST191..JPP..LHD..GT W(DOOR SPEAKER) |
1 | ||
| 67805-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 67841-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 67805-20040 |
ST191..JPP..LHD W(DOOR SPEAKER) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67806-20030 |
AT190,ST191..JPP..(GL,GT) W(DOOR SPEAKER) |
1 | ||
| 67806-20030 |
ST191..JPP..LHD W(DOOR SPEAKER) |
1 | ||
| 67806-20030 |
ST191..JPP..GL;ST191..JPP..LHD..GT W(DOOR SPEAKER) |
1 | ||
| 67841-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 67806-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AT190,CT190,ST191..JPP |
12 | ||
| 67868-20050 |
AT190,CT190,ST191..JPP..SED |
11 | ||
| 67868-20050 |
AT190,CT190,ST191..JPP..SED |
12 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-20050 |
AT190,CT190,ST191..JPP..SED |
11 | ||
| 67868-20050 |
AT190,CT190,ST191..JPP..SED |
12 | ||
| 67867-12150 |
AT190,CT190,ST191..JPP |
12 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AT190,CT190,ST191..JPP |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-20280 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-20280 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 67877A - RETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, RH | ||||
| 67877-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 67878A - RETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, LH | ||||
| 67877-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-20170 |
AT190,CT190,ST191..JPP..SED *TEM,T=3.5,BLUE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-20170 |
AT190,CT190,ST191..JPP..SED *TEM,T=3.5,BLUE |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-20560 |
AT190,CT190,ST191..JPP..SED *TEM,T=3.1,BLUE |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-20480 |
AT190,CT190,ST191..JPP..SED *TEM,T=3.1,BLUE |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-20140 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-20080 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 68159A - PAD, QUARTER WINDOW MOULDING, REAR NO.1 | ||||
| 68159-20020 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-20160 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-20160 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-20070 |
AT190,CT190,ST191..JPP..SED RH |
1 | ||
| 68174-20020 |
AT190,CT190,ST191..JPP..SED LH |
1 | ||
| 68211E - CLIP, DOOR GLASS WEATHERSTRIP | ||||
| 90904-67016 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
AT190,CT190,ST191..JPP |
2 | ||
| 68617-20011 |
AT190,CT190,ST191..JPP |
2 | ||
| 68617-20030 |
AT190,CT190,ST191..JPP |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-20010 |
AT190,CT190,ST191..JPP |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-20091 |
AT190,CT190,ST191..JPP |
2 | ||
| 68630-20090 |
AT190,CT190,ST191..JPP |
2 | ||
| 69813B - PLATE, REAR DOOR WINDOW REGULATOR BASE, RH | ||||
| 69813-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 69814A - PLATE, REAR DOOR WINDOW REGULATOR BASE, LH | ||||
| 69814-20020 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 69814-20020 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90105-06130 | ||||
| 90105-06145 | ||||
| 90119-06351 | ||||
| 90151-40025 | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 90950-01616 | ||||
| 90959-01481 | ||||
| 91651-40612 | ||||
| 91651-B0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
