CT190R-ALMDSW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP

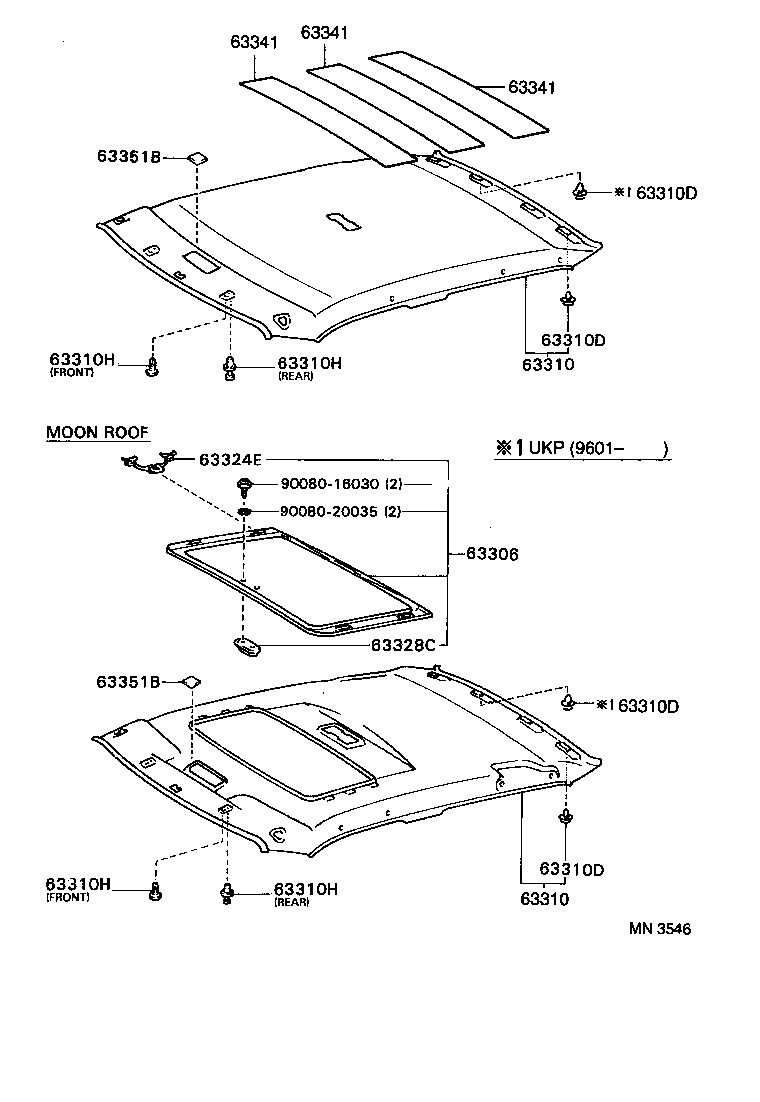

Click highlighted areas on diagram

diagram 63306 63310 63310 63310D 63310D 63310D 63310D 63310H 63310H 63310H 63310H 63324E 63328C 63341 63341 63341 63351B 63351B 9008016030 9008020035
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-0W010B0

AT190,CT190,ST191..JPP..(GL,XL)

GRAY,TRIM2#,8#

 1
63306-0W010B0

AT190,CT190,ST191..JPP..(GL,XL)

GRAY,TRIM1#,8#

 1
63310 - HEADLINING ASSY, ROOF
63310-2B350B0

AT190,CT190..JPP..LB..XL

GRAY,TRIM2#,8#

 1
63310-2B360B0

AT190,CT190,ST191..JPP..LB..(GL,XL)

W(MOON ROOF),GRAY,TRIM2#,8#

 1
63310-2B350B0

AT190,CT190..JPP..LB..XL

GRAY,TRIM1#,8#

 1
63310-2B360B0

AT190,CT190,ST191..JPP..LB..(GL,XL)

W(MOON ROOF),GRAY,TRIM1#,8#

 1
63310 - HEADLINING ASSY, ROOF
63310-2B350B0

AT190,CT190..JPP..LB..XL

GRAY,TRIM2#,8#

 1
63310-2B360B0

AT190,CT190,ST191..JPP..LB..(GL,XL)

W(MOON ROOF),GRAY,TRIM2#,8#

 1
63310-2B350B0

AT190,CT190..JPP..LB..XL

GRAY,TRIM1#,8#

 1
63310-2B360B0

AT190,CT190,ST191..JPP..LB..(GL,XL)

W(MOON ROOF),GRAY,TRIM1#,8#

 1
63310D - CLIP, ROOF HEADLINING
90467-08174

AT190,CT190,ST191..JPP..LB

 4
63310D - CLIP, ROOF HEADLINING
90467-08174

AT190,CT190,ST191..JPP..LB

 4
63310D - CLIP, ROOF HEADLINING
90467-08174

AT190,CT190,ST191..JPP..LB

 4
63310D - CLIP, ROOF HEADLINING
90467-08174

AT190,CT190,ST191..JPP..LB

 4
63324E - SPRING, SUNSHADE LOCK
63324-05010

AT190,CT190,ST191..JPP

 4
63328C - KNOB, SUNSHADE TRIM
63328-0W010B0

AT190,CT190,ST191..JPP..(GL,XL)

GRAY,TRIM1#,8#

 1
63328-0W010B0

AT190,CT190,ST191..JPP..(GL,XL)

GRAY,TRIM2#,8#

 1
63351B - PAD, ROOF HEADLINING
63351-20040

AT190,CT190,ST191..JPP

 1
63351B - PAD, ROOF HEADLINING
63351-20040

AT190,CT190,ST191..JPP

 1
Common parts
90080-16030
90080-20035
