CT190R-AEMDSW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

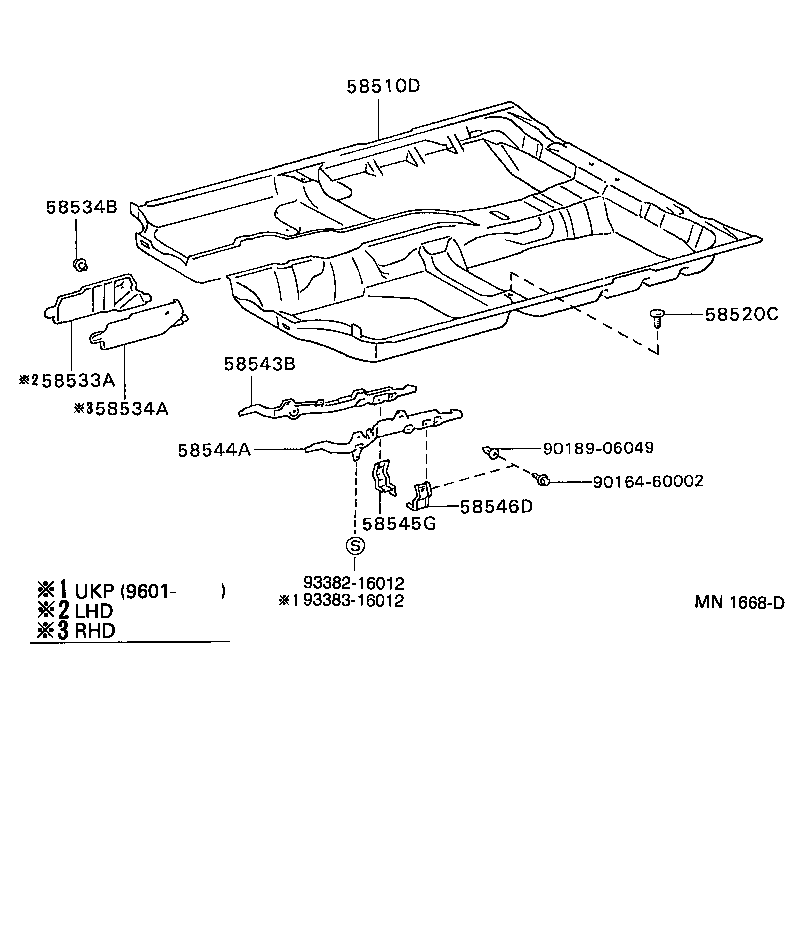

ILLUST NO. 1 OF 2(9202- )JPP

Click highlighted areas on diagram

diagram 58510D 58520C 58533A 58534A 58534B 58543B 58544A 58545G 58546D 9016460002 9018906049 9338216012 9338316012
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-2D021B0

AT190,CT190,ST191..JPP..RHD..SED

SHADOW GRAY,TRIM1#

 1
58510-2D020C2

AT190,CT190,ST191..JPP..RHD..SED

BLACK,TRIM2#

 1
58510-2D022J1

CT190,ST191..JPP..RHD..SED..(GL,XL)

DK. BLUE,TRIM8#

 1
58510-2D020J1

AT190,CT190,ST191..JPP..RHD..SED..(GL,XL)

DK.BLUE,TRIM8#

 1
58510-2D022B0

CT190,ST191..JPP..RHD..SED

SHADOW GRAY,TRIM1#

 1
58510-2D021J1

AT190,CT190,ST191..JPP..RHD..SED..(GL,XL)

DARK BLUE,TRIM8#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

AT190,CT190,ST191..JPP..SED..(GL,XL)

BLACK,TRIM2#,8#

 2
90467-06016C0

AT190,CT190,ST191..JPP..SED..(GL,XL)

BLACK,TRIM1#,8#

 2
58534A - MAT, TRANSMISSION COVER
58534-20010

AT190,CT190,ST191..JPP..RHD

 1
58534B - CLIP(FOR FLOOR CARPET CENTER COVER)
90467-07042C0

AT190,CT190,ST191..JPP..(GL,XL)

BLACK,TRIM1#,8#

 1
90467-07042C0

AT190,CT190,ST191..JPP..(GL,XL)

BLACK,TRIM2#,8#

 1
58543B - BRACKET, FLOOR CARPET, RH
58543-20030

AT190,CT190,ST191..JPP..RHD

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-20030

AT190,CT190,ST191..JPP..RHD

 1
58545G - BRACKET, FLOOR CARPET, NO.2 RH
58545-20010

AT190,CT190,ST191..JPP

 1
58546D - BRACKET, FLOOR CARPET, NO.2 LH
58546-20010

AT190,CT190,ST191..JPP

 1
Common parts
90164-60002
90189-06049
93382-16012
93383-16012

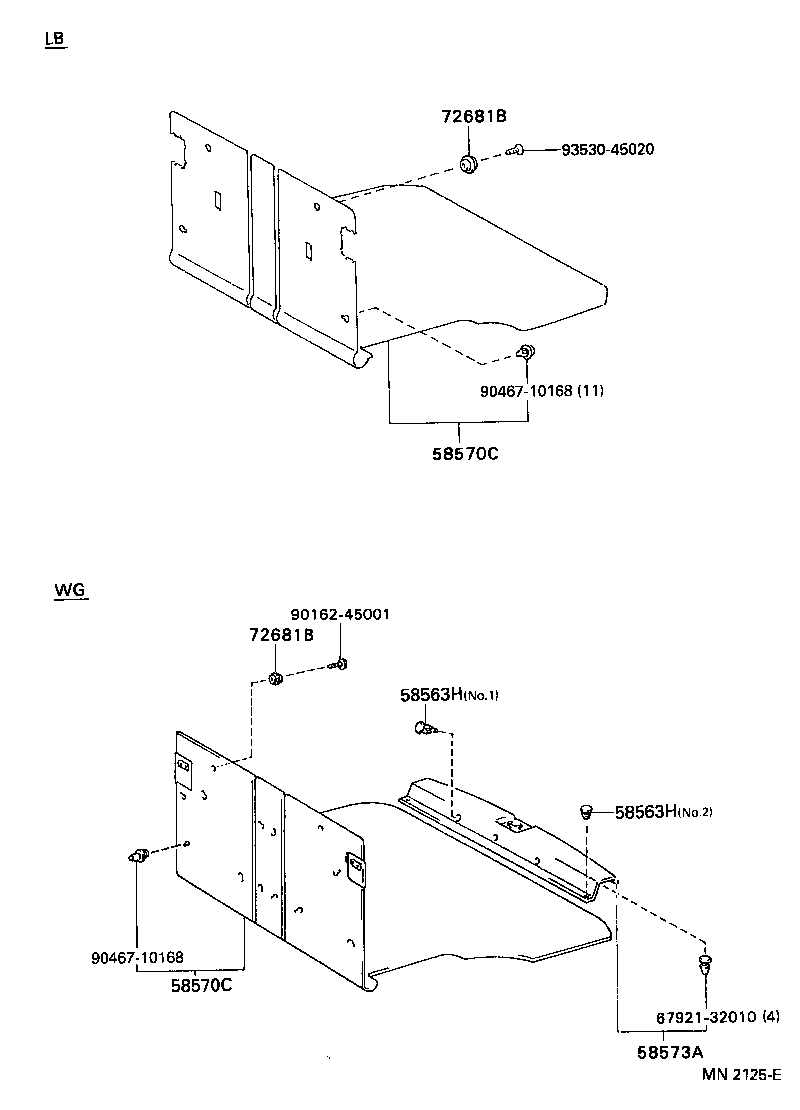

ILLUST NO. 2 OF 2(9202- )JPP

Click highlighted areas on diagram

diagram 58563H 58563H 58570C 58570C 58573A 6792132010 72681B 72681B 9016245001 9046710168 9046710168 9353045020
Part # Description Qty Price
Common parts
67921-32010
90162-45001
90467-10168
93530-45020
