CT190R-AEMDSW (1992)
Toyota Carina E Sed/Lb(Jpp)
Production
Feb 1992
-
Jan 1996
Engine
2C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )CT190,ST191..JPP..MTM

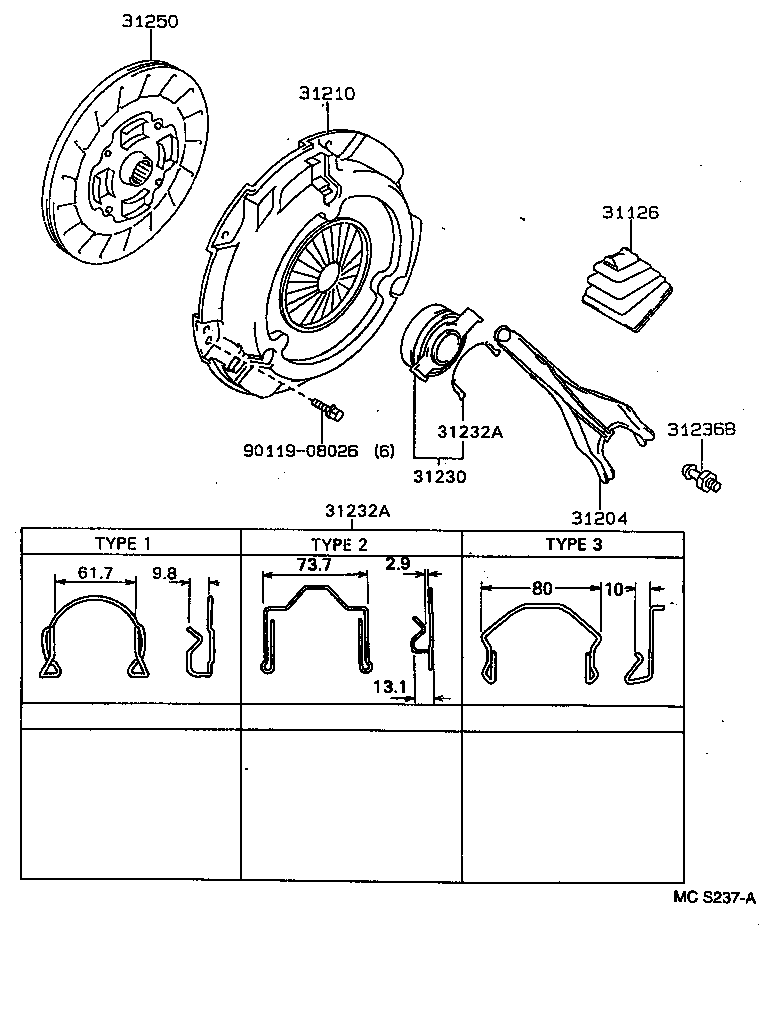

Click highlighted areas on diagram
S50,S54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-32010 |
CT190,ST191..JPP..MTM |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-20100 |
CT190,ST191..JPP..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-32121 |
CT190..JPP |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-32060 |
CT190,ST191..JPP..MTM |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-32050 |
CT190,ST191..JPP..MTM |
1 | ||
| 31232-20020 |
CT190,ST191..JPP..MTM |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-32050 |
CT190,ST191..JPP..MTM |
1 | ||
| 31232-20020 |
CT190,ST191..JPP..MTM |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-32010 |
CT190,ST191..JPP..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-12280 |
CT190..JPP |
1 | ||
| 31250-12281 |
CT190..JPP |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
