CT190L-ALMDSW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2G350J1 |
AT190,CT190..JPP..LB..XL W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-2G370C1 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G350C1 |
AT190,CT190..JPP..LB..XL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G370J1 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-2G340C1 |
AT190,CT190..JPP..LB..XL BLACK,TRIM2# |
1 | ||
| 67630-2G360C1 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67630-2G340J1 |
AT190,CT190..JPP..LB..XL DK. BLUE,TRIM8# |
1 | ||
| 67630-2G350C1 |
AT190,CT190..JPP..LHD..LB..XL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G360J1 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),DK. BLUE,TRIM8# |
1 | ||
| 67630-2G370J1 |
AT190,CT190..JPP..LHD..LB..XL W(POWER WINDOW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-2G370C1 |
AT190,CT190..JPP..LHD..LB..XL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G350J1 |
AT190,CT190..JPP..LHD..LB..XL W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-2G351C3 |
AT190,CT190..JPP..LB..XL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G341J3 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 67630-2G341C3 |
AT190,CT190..JPP..LB..XL BLACK,TRIM2# |
1 | ||
| 67630-2G371C3 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-2G351J3 |
AT190,CT190..JPP..LB..XL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2G361C3 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67630-2G361J3 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 67630-2G371J3 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2H450J0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 67630-2H460B0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H490B0 |
AT190,CT190..JPP..LB..XL W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H480B0 |
AT190,CT190..JPP..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H450B1 |
CT190..JPP..LB XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H480J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 67630-2H500J0 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 67630-2H460J0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(*PW),DK.BLUE,TRIM8# |
1 | ||
| 67630-2H520B0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H490J0 |
AT190,CT190..JPP..LB..XL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2H500B0 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H510B0 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H510J0 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2H520J0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67630-2H530J0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(SPEAKER & *PW),DK.BLUE,TRIM8# |
1 | ||
| 67630-2H530B0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(SPEAKER & *PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-30090 |
AT190..JPP..RHD..LB;AT190..JPP..LHD..LB..XL;CT190,ST191..JPP..LB..(GL,XL) |
1 | ||
| 67771-30090 |
ST191..JPP..LB..GL;AT190,CT190..JPP..LB..XL |
1 | ||
| 67771-30090 |
AT190,CT190..JPP..LB..XL YELLOW |
1 | ||
| 67771-30090 |
AT190,CT190,ST191..JPP..LB YELLOW |
1 | ||
| 67771-20110 |
AT190,CT190..JPP..LB..XL GREEN |
7 | ||
| 67771-20110 |
AT190,CT190,ST191..JPP..LB GREEN |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2G340J1 |
AT190,CT190..JPP..LB..XL W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-2G360J1 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-2G340C1 |
AT190,CT190..JPP..LB..XL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G360C1 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G330C1 |
AT190,CT190..JPP..LB..XL BLACK,TRIM2# |
1 | ||
| 67640-2G350J1 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),DK. BLUE,TRIM8# |
1 | ||
| 67640-2G350C1 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67640-2G330J1 |
AT190,CT190..JPP..LB..XL DK. BLUE,TRIM8# |
1 | ||
| 67640-2G360C1 |
AT190,CT190..JPP..LHD..LB..XL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G360J1 |
AT190,CT190..JPP..LHD..LB..XL W(POWER WINDOW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-2G340J1 |
AT190,CT190..JPP..LHD..LB..XL W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-2G340C1 |
AT190,CT190..JPP..LHD..LB..XL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G331C3 |
AT190,CT190..JPP..LB..XL BLACK,TRIM2# |
1 | ||
| 67640-2G341C3 |
AT190,CT190..JPP..LB..XL W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2G331J3 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 67640-2G351J3 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 67640-2G341J3 |
AT190,CT190..JPP..LB..XL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2G361J3 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2G351C3 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),BLACK,TRIM2# |
1 | ||
| 67640-2G361C3 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-2H420B0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H410J0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 67640-2H450B0 |
AT190,CT190..JPP..LB..XL W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H410B1 |
CT190..JPP..LB XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H440B0 |
AT190,CT190..JPP..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H420J0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(*PW),DK.BLUE,TRIM8# |
1 | ||
| 67640-2H450J0 |
AT190,CT190..JPP..LB..XL W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2H460B0 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H470J0 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2H480J0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2H470B0 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H460J0 |
AT190,CT190..JPP..LB..XL W(POWER WINDOW),DK.BLUE,TRIM8# |
1 | ||
| 67640-2H480B0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H440J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 67640-2H490J0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(*PW & SPEAKER),DK.BLUE,TRIM8# |
1 | ||
| 67640-2H490B0 |
CT190..JPP..LB XL LUXURY PACKAGE-*99 & W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-20110 |
AT190,CT190,ST191..JPP..LB GREEN |
7 | ||
| 67771-30090 |
AT190,CT190,ST191..JPP..LB YELLOW |
1 | ||
| 67609C - GRILLE SUB-ASSY, REAR DOOR SPEAKER | ||||
| 67653-20010J1 |
AT190,CT190,ST191..JPP..(GL,XL) DK. BLUE,TRIM8# |
2 | ||
| 67653-20010J1 |
AT190,CT190..JPP;ST191..JPP..SED..GL;ST191..JPP..LHD..LB..GL DK. BLUE,TRIM8# |
2 | ||
| 67653-20010C1 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
2 | ||
| 67653-20010C1 |
ST191..JPP..SED;AT190,CT190..JPP;ST191..JPP..LHD..LB;ST191..JPP..RHD..LB..GT BLACK,TRIM2# |
2 | ||
| 67653-20010C1 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT BLACK,TRIM2# |
2 | ||
| 67653-20010J1 |
AT190,CT190..JPP;ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
2 | ||
| 67653-20010J1 |
CT190..JPP DK. BLUE,TRIM8# |
2 | ||
| 67653-20010B2 |
CT190..JPP SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 67771-20100 | ||||
| 67772-20060 | ||||
| 90159-50326 | ||||
| 90168-40068 | ||||
| 90183-03026 | ||||
| 90183-03092 | ||||
| 90183-05016 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| Linked diagrams | ||||
| 7401 | ||||

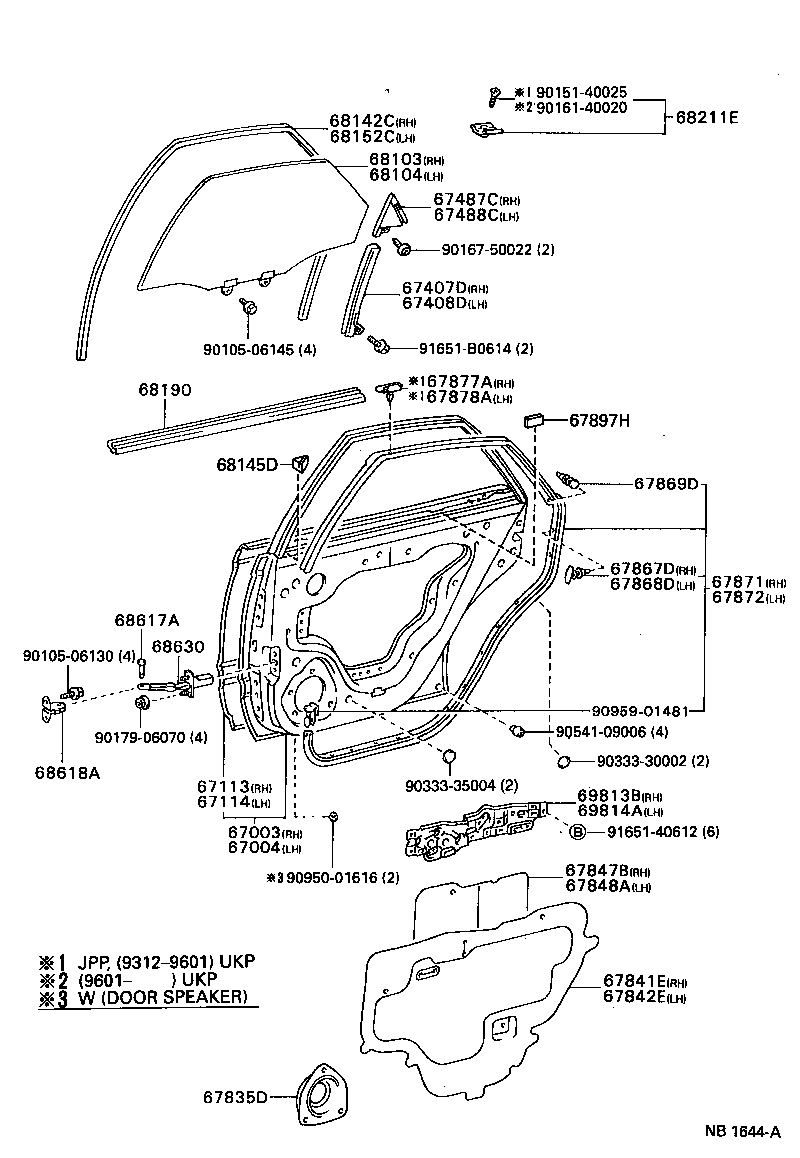

(9202- )JPP..LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-20660 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67003-20661 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-20670 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67004-20671 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-20210 |
AT190,CT190,ST191..JPP |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-20210 |
AT190,CT190,ST191..JPP |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-20210 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-20200 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-20080 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-20090 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67835D - COVER, REAR DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-20060 |
AT190,CT190,ST191..JPP |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67805-20040 |
AT190,CT190..JPP..LHD..XL W(DOOR SPEAKER) |
1 | ||
| 67805-20040 |
AT190,CT190..JPP..XL W(DOOR SPEAKER) |
1 | ||
| 67805-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 67841-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67806-20030 |
AT190,CT190..JPP..XL W(DOOR SPEAKER) |
1 | ||
| 67841-20340 |
AT190,CT190,ST191..JPP |
1 | ||
| 67806-20030 |
AT190,CT190..JPP..LHD..XL W(DOOR SPEAKER) |
1 | ||
| 67806-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AT190,CT190,ST191..JPP |
12 | ||
| 67868-20060 |
AT190,CT190,ST191..JPP..LB |
12 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-20060 |
AT190,CT190,ST191..JPP..LB |
12 | ||
| 67867-12150 |
AT190,CT190,ST191..JPP |
12 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AT190,CT190,ST191..JPP |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-20290 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-20290 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 67877A - RETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, RH | ||||
| 67877-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 67878A - RETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, LH | ||||
| 67877-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-20210 |
AT190,CT190,ST191..JPP..LB *TEM,T=3.5,BLUE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-20210 |
AT190,CT190,ST191..JPP..LB *TEM,T=3.5,BLUE |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-20150 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-20090 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-20080 |
AT190,CT190,ST191..JPP..LB RH |
1 | ||
| 68174-20030 |
AT190,CT190,ST191..JPP..LB LH |
1 | ||
| 68211E - CLIP, DOOR GLASS WEATHERSTRIP | ||||
| 68211-20100 |
AT190,CT190,ST191..JPP..LB |
4 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
AT190,CT190,ST191..JPP |
2 | ||
| 68617-20011 |
AT190,CT190,ST191..JPP |
2 | ||
| 68617-20030 |
AT190,CT190,ST191..JPP |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-20010 |
AT190,CT190,ST191..JPP |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-20091 |
AT190,CT190,ST191..JPP |
2 | ||
| 68630-20090 |
AT190,CT190,ST191..JPP |
2 | ||
| 69813B - PLATE, REAR DOOR WINDOW REGULATOR BASE, RH | ||||
| 69813-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 69814A - PLATE, REAR DOOR WINDOW REGULATOR BASE, LH | ||||
| 69814-20020 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 69814-20020 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90105-06130 | ||||
| 90105-06145 | ||||
| 90151-40025 | ||||
| 90161-40020 | ||||
| 90167-50022 | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 90950-01616 | ||||
| 90959-01481 | ||||
| 91651-40612 | ||||
| 91651-B0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
