CT190L-AEMDSW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202- )JPP..SED

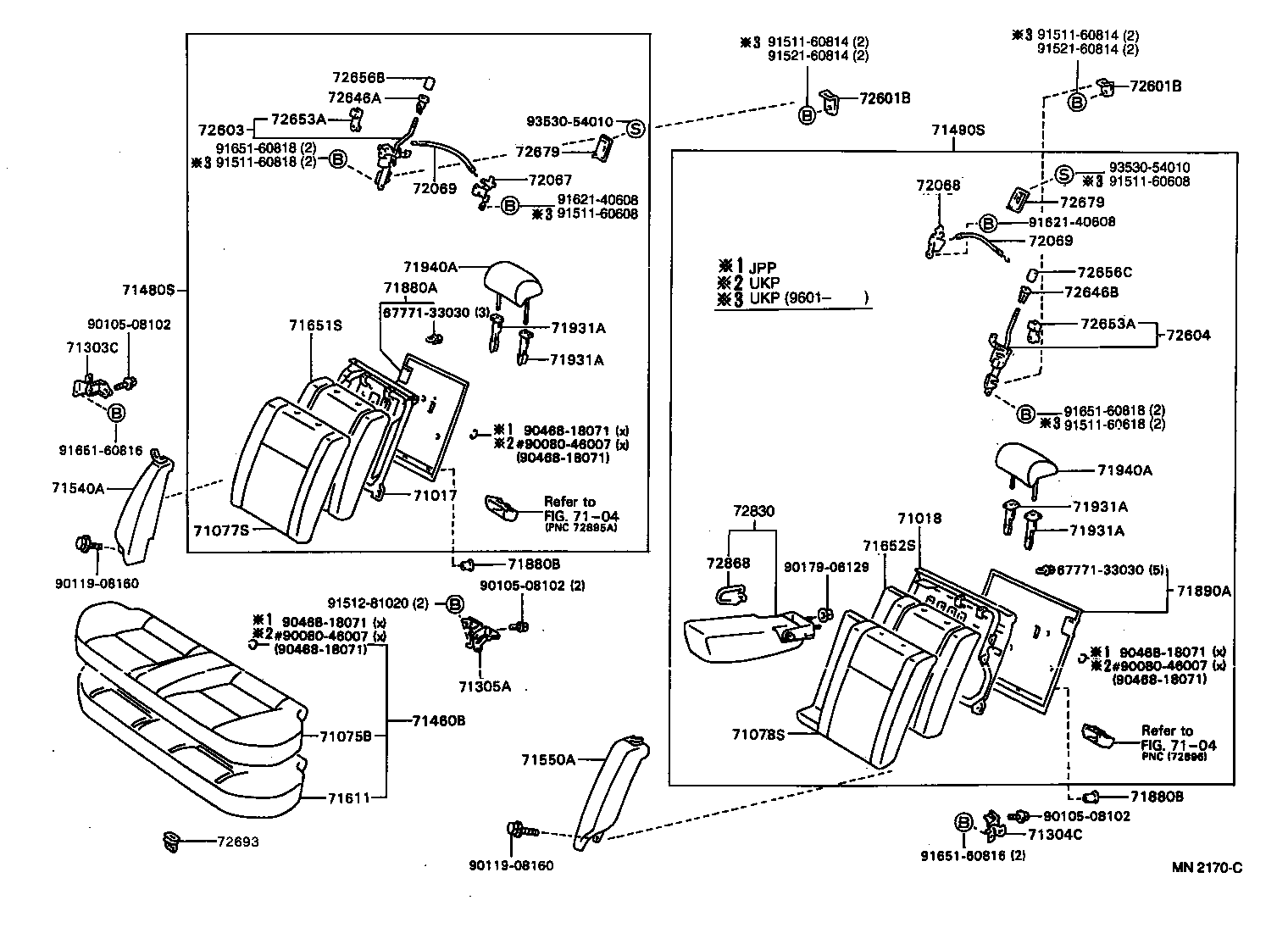

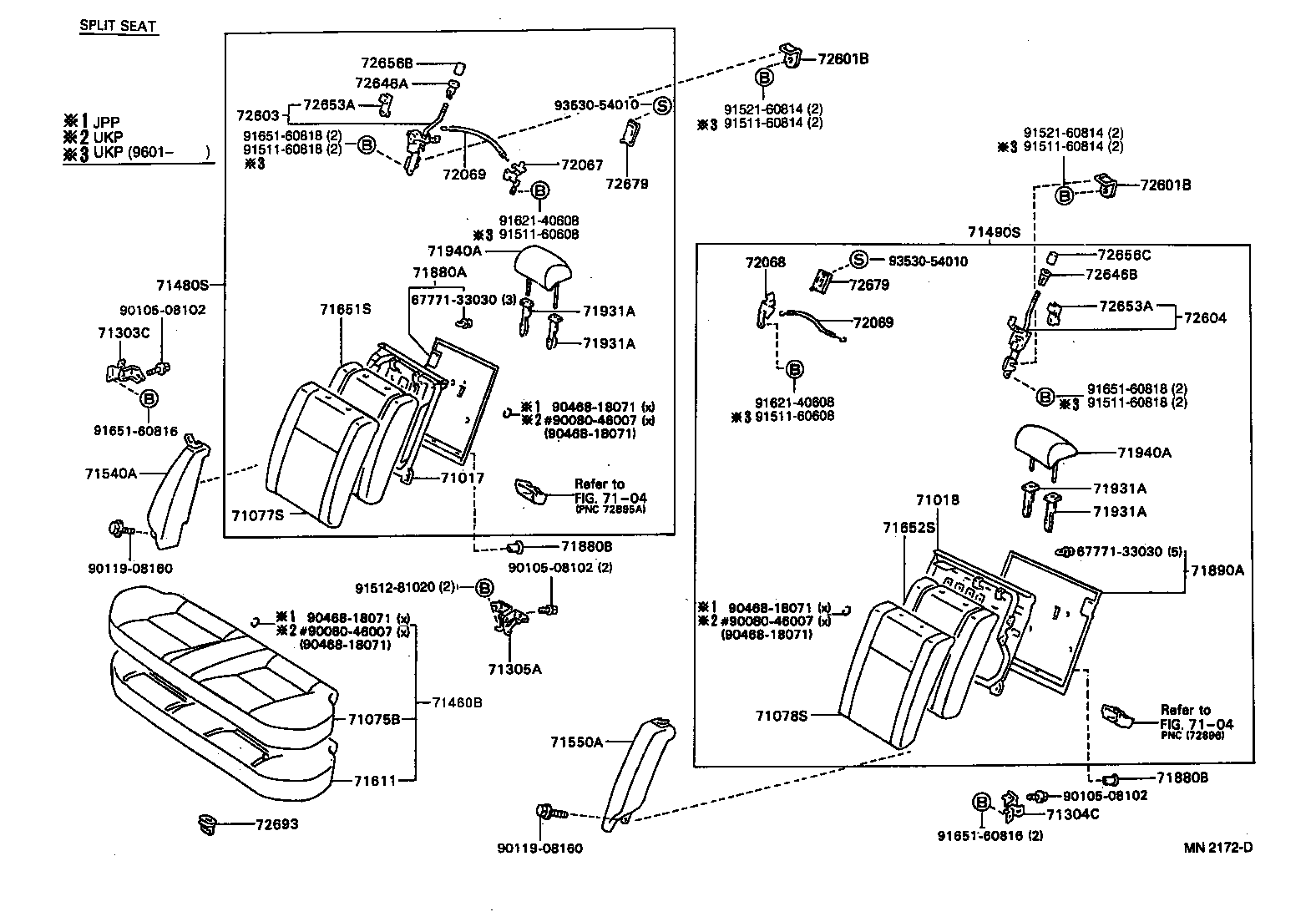

6:4 SPLIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20490 |
AT190,CT190,ST191..JPP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20170 |
AT190,CT190..JPP..XL |
1 | ||
| 71018-20190 |
CT190..JPP XL LUXURY PACKAGE-*99 |
1 | ||
| 71018-20170 |
CT190..JPP..LHD |
1 | ||

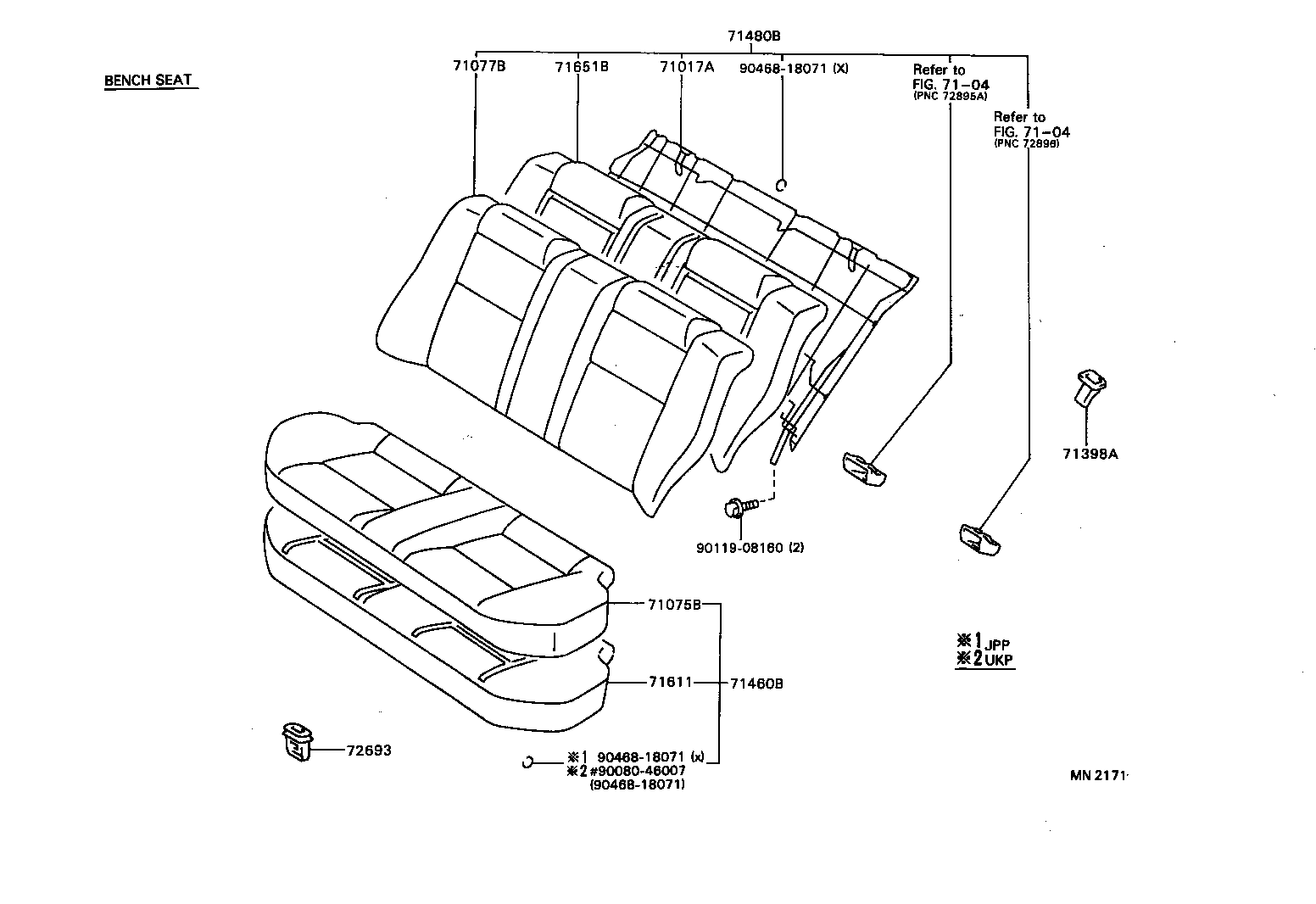

| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2B190B0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71075-2B850J0 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71065-2B190J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71075-2B850B0 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),GRAY,TRIM2# |
1 | ||
| 71065-2B190J1 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B071J4 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71065-2B290J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71065-2B290B0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71075-2B850J1 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71065-2B191J2 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B191B1 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2B280J0 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK. BLUE,TRIM8# |
1 | ||
| 71075-2B851J2 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71075-2B851B1 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2B071B8 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2G040J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G040B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71077-2G011J6 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71077-2G011P0 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2G041B2 |
CT190..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2G190J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71077-2G041J4 |
CT190..JPP..LHD DK.BLUE,TRIM8# |
1 | ||
| 71077-2G040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G041B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2G041J4 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2B040J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B160J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71078-2B040B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71078-2B041B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2B040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B290J1 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71078-2B290B1 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2B041J4 |
CT190..JPP..LHD DK.BLUE,TRIM8# |
1 | ||
| 71078-2B021P0 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2B021J6 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71078-2B041J4 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B290J1 |
CT190..JPP..LHD XL LUXURY PACKAGE-*99,DK.BLUE |
1 | ||
| 71078-2B290B1 |
CT190..JPP..LHD XL LUXURY PACKAGE-*99,SHADOW GRAY |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20150 |
AT190,CT190,ST191..JPP |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2B160C0 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),BLACK,TRIM2# |
1 | ||
| 71560-2B160J0 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71560-2B350J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71560-2B161J1 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71560-2B171J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71560-2B161B0 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B171B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B350C0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71560-2B351J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71560-2B351B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2G360C0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71480-2G360J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71480-2G331B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2G331J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71480-2G361B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2G332B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2G361J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71480-2G332J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
1 | ||
| 71480-2G362B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2G362J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2B260C0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71490-2B260J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71490-2B660B0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B261B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B261J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71490-2B660J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71490-2B241B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B242B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B242J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
1 | ||
| 71490-2B262J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71490-2B262J0 |
CT190..JPP..LHD..SED DK. BLUE,TRIM8# |
1 | ||
| 71490-2B262B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B262B0 |
CT190..JPP..LHD..SED SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B241J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-21010J4 |
CT190..JPP XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
1 | ||
| 71540-20220C0 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71540-20220J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71540-20221J6 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71540-21010P0 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71540-20221B4 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-20220J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71550-20220C0 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71550-20221J6 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71550-21010J4 |
CT190..JPP XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
1 | ||
| 71550-20221B4 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71550-21010P0 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-20030 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20690 |
AT190,CT190,ST191..JPP |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20440 |
CT190..JPP XL LUXURY PACKAGE-*99 |
1 | ||
| 71652-20390 |
AT190,CT190..JPP..XL |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-20230C0 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 71880-20230C0 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0906622 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM2#,8# |
4 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0906622 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM2#,8# |
4 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-20130C0 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 71890-20130C0 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190..JPP..LHD..XL W(LOCK),SHADOW GRAY |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190..JPP..LHD..XL W(LOCK),DARK BLUE |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),DARK BLUE |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),SHADOW GRAY |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190..JPP..LHD..XL W(LOCK),SHADOW GRAY |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190..JPP..LHD..XL W(LOCK),DARK BLUE |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),DARK BLUE |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),SHADOW GRAY |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190..JPP..LHD..XL W(LOCK),SHADOW GRAY |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190..JPP..LHD..XL W(LOCK),DARK BLUE |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),DARK BLUE |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),SHADOW GRAY |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190..JPP..LHD..XL W(LOCK),SHADOW GRAY |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190..JPP..LHD..XL W(LOCK),DARK BLUE |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),DARK BLUE |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),SHADOW GRAY |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20270J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71940-20271J3 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20270B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
2 | ||
| 71940-20271B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330B0 |
CT190..JPP..LHD SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031B4 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031J2 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
2 | ||
| 71940-20340B0 |
CT190..JPP XL LUXURY PACKAGE-*99,GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20330B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
CT190..JPP..LHD DK. BLUE,TRIM8# |
2 | ||
| 71940-20340J0 |
CT190..JPP XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20270J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71940-20271J3 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20270B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
2 | ||
| 71940-20271B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330B0 |
CT190..JPP..LHD SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031B4 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031J2 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
2 | ||
| 71940-20340B0 |
CT190..JPP XL LUXURY PACKAGE-*99,GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20330B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
CT190..JPP..LHD DK. BLUE,TRIM8# |
2 | ||
| 71940-20340J0 |
CT190..JPP XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 72067-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72068-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT190,CT190,ST191..JPP |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-20080 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601-16060 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-20080 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601-16060 |
AT190,CT190,ST191..JPP |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72646-20070J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72646-20070B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72646-20070J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72646-20070C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24010 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 69759-24020 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24010 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 69759-24020 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72661-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72661-20020B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72661-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72661-20020B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-16010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-16010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20040 |
AT190,CT190,ST191..JPP..SED |
4 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-20450B5 |
CT190..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72830-20450J2 |
CT190..JPP DK. BLUE,TRIM8# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-20020J0 |
CT190..JPP DK.BLUE,TRIM8# |
1 | ||
| 72868-20020B0 |
CT190..JPP SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-33030 | ||||
| 90080-46007 | ||||
| 90105-08102 | ||||
| 90119-08160 | ||||
| 90179-06129 | ||||
| 90468-18071 | ||||
| 91511-60608 | ||||
| 91511-60618 | ||||
| 91511-60814 | ||||
| 91511-60818 | ||||
| 91512-81020 | ||||
| 91521-60814 | ||||
| 91621-40608 | ||||
| 91651-60816 | ||||
| 91651-60818 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(9202- )JPP..LHD..SED..XL
BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-20450 |
AT190,CT190..JPP..LHD..SED..XL |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2B190B0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71075-2B850J0 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71065-2B190J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71075-2B850B0 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),GRAY,TRIM2# |
1 | ||
| 71065-2B190J1 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B071J4 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71065-2B290J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71065-2B290B0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71075-2B850J1 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71065-2B191J2 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B191B1 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2B280J0 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK. BLUE,TRIM8# |
1 | ||
| 71075-2B851J2 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71075-2B851B1 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2B071B8 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2G050J0 |
AT190,CT190..JPP..LHD..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G180J0 |
AT190,CT190..JPP..LHD..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71077-2G050B0 |
AT190,CT190..JPP..LHD..SED..XL GRAY,TRIM2# |
1 | ||
| 71077-2G050J2 |
AT190,CT190..JPP..LHD..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G051J3 |
AT190,CT190..JPP..LHD..SED..XL DK.BLUK,TRIM8# |
1 | ||
| 71077-2G051B1 |
AT190,CT190..JPP..LHD..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-12030 |
AT190,CT190..JPP..LHD..SED..XL |
3 | ||
| 71398-12030 |
AT190,CT190..JPP..LHD..SED..XL REAR BENCH SEAT |
3 | ||
| 71398-12030 |
AT190,CT190..JPP..LHD..SED..XL |
3 | ||
| 71398-20020 |
AT190,CT190,ST191..JPP..SED |
4 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2B160C0 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),BLACK,TRIM2# |
1 | ||
| 71560-2B160J0 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71560-2B350J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71560-2B161J1 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71560-2B171J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71560-2B161B0 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B171B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B350C0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71560-2B351J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71560-2B351B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-2G380C0 |
AT190,CT190..JPP..LHD..SED..XL BLACK,TRIM2# |
1 | ||
| 71480-2G380J0 |
AT190,CT190..JPP..LHD..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71480-2G381J0 |
AT190,CT190..JPP..LHD..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71480-2G381B0 |
AT190,CT190..JPP..LHD..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-20030 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-20680 |
AT190,CT190..JPP..LHD..SED..XL |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20040 |
AT190,CT190,ST191..JPP..SED |
4 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90119-08160 | ||||
| 90468-18071 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(9202- )JPP..SED..XL
5:5 SPLIT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20490 |
AT190,CT190,ST191..JPP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20170 |
AT190,CT190..JPP..XL |
1 | ||
| 71018-20190 |
CT190..JPP XL LUXURY PACKAGE-*99 |
1 | ||
| 71018-20170 |
CT190..JPP..LHD |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2B190B0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71075-2B850J0 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71065-2B190J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71075-2B850B0 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),GRAY,TRIM2# |
1 | ||
| 71065-2B190J1 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B071J4 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71065-2B290J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71065-2B290B0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71075-2B850J1 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71065-2B191J2 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B191B1 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2B280J0 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK. BLUE,TRIM8# |
1 | ||
| 71075-2B851J2 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71075-2B851B1 |
AT190,CT190..JPP..LHD..SED..XL W(REAR BENCH SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2B071B8 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2G040J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G040B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71077-2G011J6 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71077-2G011P0 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2G041B2 |
CT190..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2G190J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71077-2G041J4 |
CT190..JPP..LHD DK.BLUE,TRIM8# |
1 | ||
| 71077-2G040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G041B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2G041J4 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2B040J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B160J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71078-2B040B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71078-2B041B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2B040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B290J1 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71078-2B290B1 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2B041J4 |
CT190..JPP..LHD DK.BLUE,TRIM8# |
1 | ||
| 71078-2B021P0 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2B021J6 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71078-2B041J4 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B290J1 |
CT190..JPP..LHD XL LUXURY PACKAGE-*99,DK.BLUE |
1 | ||
| 71078-2B290B1 |
CT190..JPP..LHD XL LUXURY PACKAGE-*99,SHADOW GRAY |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20150 |
AT190,CT190,ST191..JPP |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2B160C0 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),BLACK,TRIM2# |
1 | ||
| 71560-2B160J0 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71560-2B350J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71560-2B161J1 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),DK.BLUE,TRIM8# |
1 | ||
| 71560-2B171J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71560-2B161B0 |
AT190,CT190..JPP..LHD..SED..XL W(FIXED REAR SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B171B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B350C0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71560-2B351J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71560-2B351B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2G360C0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71480-2G360J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71480-2G331B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2G331J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71480-2G361B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2G332B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2G361J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71480-2G332J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
1 | ||
| 71480-2G362B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2G362J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2B260C0 |
AT190,CT190..JPP..SED..XL BLACK,TRIM2# |
1 | ||
| 71490-2B260J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71490-2B660B0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B261B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B261J0 |
AT190,CT190..JPP..SED..XL DK.BLUE,TRIM8# |
1 | ||
| 71490-2B660J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71490-2B241B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B242B2 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B242J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
1 | ||
| 71490-2B262J0 |
AT190,CT190..JPP..SED..XL DK. BLUE,TRIM8# |
1 | ||
| 71490-2B262J0 |
CT190..JPP..LHD..SED DK. BLUE,TRIM8# |
1 | ||
| 71490-2B262B0 |
AT190,CT190..JPP..SED..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B262B0 |
CT190..JPP..LHD..SED SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B241J0 |
CT190..JPP..SED XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-21010J4 |
CT190..JPP XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
1 | ||
| 71540-20220C0 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71540-20220J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71540-20221J6 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71540-21010P0 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71540-20221B4 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-20220J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71550-20220C0 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71550-20221J6 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71550-21010J4 |
CT190..JPP XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
1 | ||
| 71550-20221B4 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71550-21010P0 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-20030 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20690 |
AT190,CT190,ST191..JPP |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20440 |
CT190..JPP XL LUXURY PACKAGE-*99 |
1 | ||
| 71652-20390 |
AT190,CT190..JPP..XL |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-20230C0 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 71880-20230C0 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0906622 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM2#,8# |
4 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0906622 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM2#,8# |
4 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-20130C0 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 71890-20130C0 |
AT190,CT190,ST191..JPP..SED..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190..JPP..LHD..XL W(LOCK),SHADOW GRAY |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190..JPP..LHD..XL W(LOCK),DARK BLUE |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),DARK BLUE |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),SHADOW GRAY |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190..JPP..LHD..XL W(LOCK),SHADOW GRAY |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190..JPP..LHD..XL W(LOCK),DARK BLUE |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),DARK BLUE |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),SHADOW GRAY |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190..JPP..LHD..XL W(LOCK),SHADOW GRAY |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190..JPP..LHD..XL W(LOCK),DARK BLUE |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),DARK BLUE |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),SHADOW GRAY |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10070P0 |
AT190,CT190..JPP..LHD..XL W(LOCK),SHADOW GRAY |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190..JPP..LHD..XL W(LOCK),DARK BLUE |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),DARK BLUE |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
AT190,CT190..JPP..LHD..XL W/O(LOCK),SHADOW GRAY |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20270J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71940-20271J3 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20270B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
2 | ||
| 71940-20271B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330B0 |
CT190..JPP..LHD SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031B4 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031J2 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
2 | ||
| 71940-20340B0 |
CT190..JPP XL LUXURY PACKAGE-*99,GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20330B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
CT190..JPP..LHD DK. BLUE,TRIM8# |
2 | ||
| 71940-20340J0 |
CT190..JPP XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20270J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71940-20271J3 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20270B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
2 | ||
| 71940-20271B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330B0 |
CT190..JPP..LHD SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031B4 |
CT190..JPP XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031J2 |
CT190..JPP XL LUXURY PACKAGE-*99,DK.BLUE,TRIM8# |
2 | ||
| 71940-20340B0 |
CT190..JPP XL LUXURY PACKAGE-*99,GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20330B0 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940-20330J0 |
CT190..JPP..LHD DK. BLUE,TRIM8# |
2 | ||
| 71940-20340J0 |
CT190..JPP XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 72067-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72068-20060 |
AT190,CT190,ST191..JPP |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT190,CT190,ST191..JPP |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-20080 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601-16060 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-20080 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601-16060 |
AT190,CT190,ST191..JPP |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72646-20070J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72646-20070B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72646-20070J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72646-20070C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24010 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 69759-24020 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24010 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 69759-24020 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72661-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72661-20020B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72661-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72661-20020B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-16010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-16010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20040 |
AT190,CT190,ST191..JPP..SED |
4 | ||
| Common parts | ||||
| 67771-33030 | ||||
| 90080-46007 | ||||
| 90105-08102 | ||||
| 90119-08160 | ||||
| 90468-18071 | ||||
| 91511-60608 | ||||
| 91511-60814 | ||||
| 91511-60818 | ||||
| 91512-81020 | ||||
| 91521-60814 | ||||
| 91621-40608 | ||||
| 91651-60816 | ||||
| 91651-60818 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
