Toyota Carina e sed/lb(jpp) AT190 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
CARINA E SED/LB(JPP)
AT190R-ALPNKW (1992)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AT190R-ALPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994

Engine 4AFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9202- )AT190,ST191..JPP..RHD

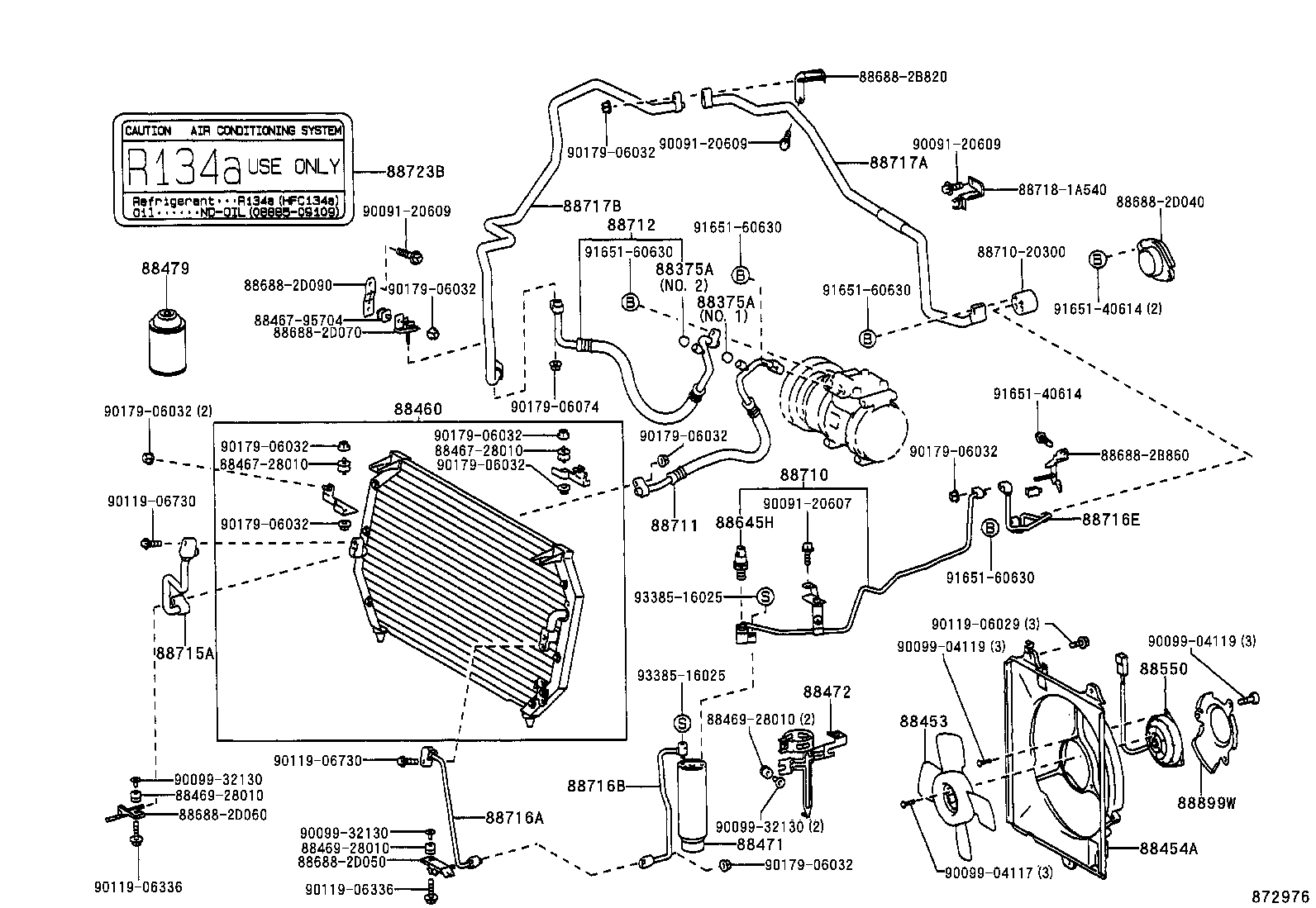

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AT190,ST191..JPP	02/1992 - 05/1992	1
88375-30280	CT190..JPP..RHD;AT190,ST191..JPP	05/1992 - 02/1994	1
88375-30280	AT190..JPP;CT190..JPP..RHD NO.1	02/1994 - 06/1994	1
88375-30280	AT190..JPP;CT190,ST191..JPP..RHD NO.1	06/1994 - 09/1994	1
88375-30280	AT190,ST191..JPP..RHD MAKER OPT	02/1994 - 06/1994	1
88375-30290	AT190,ST191..JPP..RHD MAKER OPT	02/1994 - 06/1994	1
88375-30290	AT190..JPP;CT190..JPP..RHD;ST191..JPP..LHD..GT NO.2	02/1994 - 05/1994	1
88375-30290	AT190..JPP..RHD MAKER OPT	06/1994 - 11/1994	1
88375-30280	AT190..JPP..RHD MAKER OPT	06/1994 - 11/1994	1
88375-30290	AT190..JPP..RHD NO.2	05/1994 - 09/1994	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AT190,ST191..JPP	02/1992 - 05/1992	1
88375-30280	CT190..JPP..RHD;AT190,ST191..JPP	05/1992 - 02/1994	1
88375-30280	AT190..JPP;CT190..JPP..RHD NO.1	02/1994 - 06/1994	1
88375-30280	AT190..JPP;CT190,ST191..JPP..RHD NO.1	06/1994 - 09/1994	1
88375-30280	AT190,ST191..JPP..RHD MAKER OPT	02/1994 - 06/1994	1
88375-30290	AT190,ST191..JPP..RHD MAKER OPT	02/1994 - 06/1994	1
88375-30290	AT190..JPP;CT190..JPP..RHD;ST191..JPP..LHD..GT NO.2	02/1994 - 05/1994	1
88375-30290	AT190..JPP..RHD MAKER OPT	06/1994 - 11/1994	1
88375-30280	AT190..JPP..RHD MAKER OPT	06/1994 - 11/1994	1
88375-30290	AT190..JPP..RHD NO.2	05/1994 - 09/1994	2
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080	AT190,CT190,ST191..JPP..(GL,XL) MAKER OPT OR DEALER OPT	02/1992 - 02/1994	1
88453-20040	AT190,CT190,ST191..JPP..(GL,XL) DEALER OPT	02/1992 - 02/1994	1
88453-20080	CT190..JPP..RHD;AT190,ST191..JPP..(GL,XL)	02/1994 - 05/1994	1
88454A - SHROUD, FAN
88454-20020	AT190,ST191..JPP	02/1992 - 05/1994	1
88460 - CONDENSER ASSY, COOLER
88460-20370	AT190,ST191..JPP	02/1992 - 05/1994	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	CT190..JPP..RHD;AT190,ST191..JPP	02/1994 - 05/1994	1
88471-20050	AT190,ST191..JPP..(GL,XL)	02/1992 - 02/1994	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20160	AT190..JPP..RHD MAKER OPTION	02/1992 - 05/1992	1
88472-20160	AT190..JPP..RHD	02/1994 - 11/1994	1
88472-20110	AT190..JPP..RHD DEALER OPTION	02/1992 - 02/1994	1
88472-20160	AT190..JPP..RHD	05/1992 - 02/1994	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007	CT190..JPP..RHD;AT190,ST191..JPP 250G	02/1994 - 05/1994	3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	AT190,ST191..JPP	02/1992 - 05/1994	1
16363-46030	AT190..JPP..RHD	09/1994 - 11/1994	1
88550-12130	AT190..JPP;ST191..JPP..LHD;ST191..JPP..RHD..GT	05/1994 - 09/1994	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	CT190..JPP..RHD;AT190,ST191..JPP	02/1992 - 05/1994	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B120	AT190..JPP MAKER OPTION	02/1993 - 02/1994	1
88711-20860	AT190..JPP	02/1992 - 02/1993	1
88711-20860	AT190..JPP DEALER OPTION	02/1993 - 02/1994	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B810	AT190..JPP..RHD MAKER OPTION	05/1994 - 09/1994	1
88712-2B810	AT190..JPP..RHD	02/1994 - 05/1994	1
88712-2B211	AT190..JPP..RHD DEALER OPTION	05/1994 - 09/1994	1
88712-2B210	AT190..JPP..RHD	02/1992 - 02/1994	1
88712-2B810	AT190..JPP..RHD	09/1994 - 11/1994	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120	CT190..JPP..RHD;AT190,ST191..JPP	02/1992 - 05/1994	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140	CT190..JPP..RHD;AT190,ST191..JPP	02/1992 - 05/1994	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D180	AT190..JPP..RHD	02/1992 - 02/1994	1
88716-2D181	AT190..JPP..RHD	02/1994 - 11/1994	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170	AT190,ST191..JPP..RHD..(GL,XL) DEALER OPT OR W(*66) & MAKER OPT	07/1993 - 09/1994	1
88716-2D170	AT190,CT190,ST191..JPP..RHD	02/1992 - 07/1993	1
88716-2D170	AT190..JPP..RHD W(*66) & MAKER OPT	09/1994 - 11/1994	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230	AT190,ST191..JPP..RHD..(GL,XL) DEALER OPT OR W(*66) & MAKER OPT	07/1993 - 09/1994	1
88717-2B230	AT190..JPP..RHD W(*66) & MAKER OPT	09/1994 - 11/1994	1
88717-2B230	AT190,ST191..JPP..RHD	02/1992 - 07/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B160	AT190,ST191..JPP..RHD MAKER OPTION	02/1992 - 05/1992	1
88717-2B280	AT190,ST191..JPP..RHD DEALER OPTION	02/1992 - 05/1992	1
88717-2B160	AT190,ST191..JPP..RHD	05/1992 - 05/1994	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	CT190..JPP..RHD;AT190,ST191..JPP	02/1992 - 05/1994	1
Common parts
88467-28010
88467-95704
88469-28010
88688-2B820
88688-2B860
88688-2D040
88688-2D050
88688-2D060
88688-2D070
88688-2D090
88710-20300
88718-1A540
90091-20607
90091-20609
90099-04117
90099-04119
90099-32130
90119-06029
90119-06336
90119-06730
90179-06032
90179-06074
91651-40614
91651-60630
93385-16025

(9202- )AT190,ST191..JPP..RHD

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AT190,ST191..JPP	02/1992 - 05/1992	1
88375-30280	CT190..JPP..RHD;AT190,ST191..JPP	05/1992 - 02/1994	1
88375-30280	AT190..JPP;CT190..JPP..RHD NO.1	02/1994 - 06/1994	1
88375-30280	AT190..JPP;CT190,ST191..JPP..RHD NO.1	06/1994 - 09/1994	1
88375-30280	AT190,ST191..JPP..RHD MAKER OPT	02/1994 - 06/1994	1
88375-30290	AT190,ST191..JPP..RHD MAKER OPT	02/1994 - 06/1994	1
88375-30290	AT190..JPP;CT190..JPP..RHD;ST191..JPP..LHD..GT NO.2	02/1994 - 05/1994	1
88375-30290	AT190..JPP..RHD MAKER OPT	06/1994 - 11/1994	1
88375-30280	AT190..JPP..RHD MAKER OPT	06/1994 - 11/1994	1
88375-30290	AT190..JPP..RHD NO.2	05/1994 - 09/1994	2
88460 - CONDENSER ASSY, COOLER
88460-20370	AT190,ST191..JPP	02/1992 - 05/1994	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	CT190..JPP..RHD;AT190,ST191..JPP	02/1994 - 05/1994	1
88471-20050	AT190,ST191..JPP..(GL,XL)	02/1992 - 02/1994	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20160	AT190..JPP..RHD MAKER OPTION	02/1992 - 05/1992	1
88472-20160	AT190..JPP..RHD	02/1994 - 11/1994	1
88472-20110	AT190..JPP..RHD DEALER OPTION	02/1992 - 02/1994	1
88472-20160	AT190..JPP..RHD	05/1992 - 02/1994	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-20250	AT190,ST191..JPP..RHD	02/1992 - 01/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B120	AT190..JPP MAKER OPTION	02/1993 - 02/1994	1
88711-20860	AT190..JPP	02/1992 - 02/1993	1
88711-20860	AT190..JPP DEALER OPTION	02/1993 - 02/1994	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B810	AT190..JPP..RHD MAKER OPTION	05/1994 - 09/1994	1
88712-2B810	AT190..JPP..RHD	02/1994 - 05/1994	1
88712-2B211	AT190..JPP..RHD DEALER OPTION	05/1994 - 09/1994	1
88712-2B210	AT190..JPP..RHD	02/1992 - 02/1994	1
88712-2B810	AT190..JPP..RHD	09/1994 - 11/1994	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120	CT190..JPP..RHD;AT190,ST191..JPP	02/1992 - 05/1994	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140	CT190..JPP..RHD;AT190,ST191..JPP	02/1992 - 05/1994	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D180	AT190..JPP..RHD	02/1992 - 02/1994	1
88716-2D181	AT190..JPP..RHD	02/1994 - 11/1994	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D090	AT190,ST191..JPP..RHD MAKER OPT	02/1992 - 07/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D170	AT190,ST191..JPP..RHD..(GL,XL) DEALER OPT OR W(*66) & MAKER OPT	07/1993 - 09/1994	1
88716-2D170	AT190,CT190,ST191..JPP..RHD	02/1992 - 07/1993	1
88716-2D170	AT190..JPP..RHD W(*66) & MAKER OPT	09/1994 - 11/1994	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B230	AT190,ST191..JPP..RHD..(GL,XL) DEALER OPT OR W(*66) & MAKER OPT	07/1993 - 09/1994	1
88717-2B230	AT190..JPP..RHD W(*66) & MAKER OPT	09/1994 - 11/1994	1
88717-2B230	AT190,ST191..JPP..RHD	02/1992 - 07/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B160	AT190,ST191..JPP..RHD MAKER OPTION	02/1992 - 05/1992	1
88717-2B280	AT190,ST191..JPP..RHD DEALER OPTION	02/1992 - 05/1992	1
88717-2B160	AT190,ST191..JPP..RHD	05/1992 - 05/1994	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B221	AT190,ST191..JPP..RHD	05/1994 - 09/1994	1
88717-2B220	AT190,ST191..JPP..RHD DEALER OPT	04/1993 - 02/1994	1
88717-2B221	AT190,ST191..JPP..RHD MAKER OPT	04/1993 - 02/1994	1
88717-2B220	AT190,ST191..JPP..RHD	02/1992 - 04/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	CT190..JPP..RHD;AT190,ST191..JPP	02/1992 - 05/1994	1
Common parts
88467-28010
88688-2B760
88688-2B770
88688-2B780
88688-2B790
88688-2B850
88688-2D040
88710-20300
88718-2B380
88718-2B420
90119-06142
90119-06476
90119-06538
90119-06553
90179-06032
90179-06074
91651-40614

AT190R-ALPNKW (1992)

(9202- )AT190,ST191..JPP..RHD

(9202- )AT190,ST191..JPP..RHD
