AT190R-ALPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP

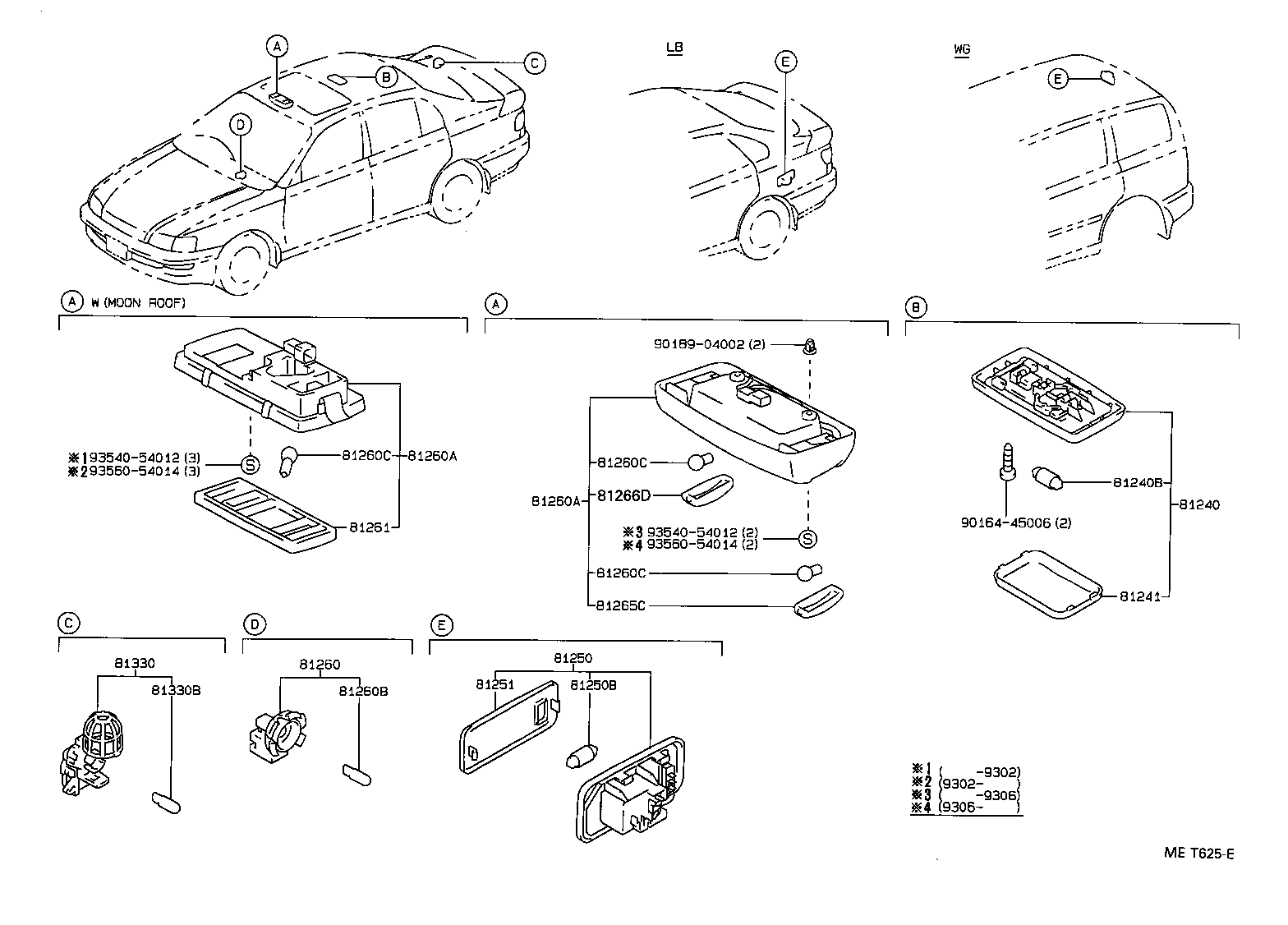

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81251 81260 81260A 81260A 81260B 81260C 81260C 81260C 81261 81265C 81266D 81330 81330B 9016445006 9018904002 9354054012 9354054012 9356054014 9356054014
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-12020B1

AT190,CT190,ST191..JPP..(GL,XL)

GRAY,TRIM2#,8#

 1
81240-20090B0

AT190,CT190,ST191..JPP..(GL,XL)

GRAY,TRIM2#,8#

 1
81240-32031B0

AT190,CT190,ST191..JPP..(GL,XL)

W(MOON ROOF),GRAY,TRIM2#,8#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14004

AT190,CT190,ST191..JPP

12V 8W,W(MOON ROOF)

 1
99132-12100

AT190,CT190,ST191..JPP

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-32031

AT190,CT190,ST191..JPP

W(MOON ROOF)

 1
81241-20090

AT190,CT190,ST191..JPP

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-12030W3

AT190,CT190,ST191..JPP..LB..(GL,XL)

DK.BLUE,TRIM8#

 1
81250-12030C0

AT190,CT190,ST191..JPP..LB

BLACK,TRIM2#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AT190,CT190,ST191..JPP..LB

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

AT190,CT190,ST191..JPP..LB

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33010

AT190,CT190,ST191..JPP

 1
81260A - LAMP ASSY, MAP
81260-20180B0

AT190,ST191..JPP..GL

W(MOON ROOF),GRAY,TRIM2#,8#

 1
81260-20171B0

AT190,ST191..JPP..GL

GRAY,TRIM2#,8#

 1
81260-20170B0

AT190,ST191..JPP..GL

GRAY,TRIM2#,8#

 1
81260A - LAMP ASSY, MAP
81260-20180B0

AT190,ST191..JPP..GL

W(MOON ROOF),GRAY,TRIM2#,8#

 1
81260-20171B0

AT190,ST191..JPP..GL

GRAY,TRIM2#,8#

 1
81260-20170B0

AT190,ST191..JPP..GL

GRAY,TRIM2#,8#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

AT190,CT190,ST191..JPP

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AT190,ST191..JPP..(GL,GT)

12V 10W,W(MOON ROOF)

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AT190,ST191..JPP..(GL,GT)

12V 10W,W(MOON ROOF)

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AT190,ST191..JPP..(GL,GT)

12V 10W,W(MOON ROOF)

 1
81261 - LENS AND COVER, MAP LAMP
81261-20180B0

AT190,CT190,ST191..JPP..(GL,XL)

GRAY,TRIM2#,8#

 1
Common parts
90164-45006
90189-04002
93540-54012
93560-54014
