AT190R-ALMNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
Production
Feb 1992
-
Nov 1994
Engine
4AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )JPP

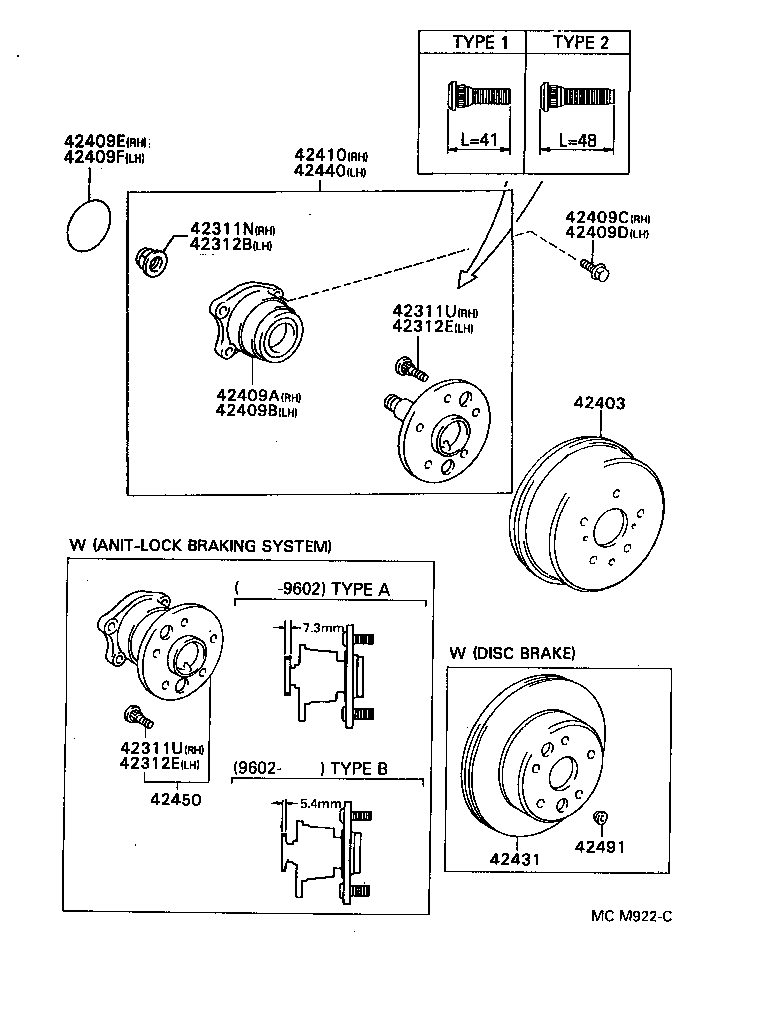

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-20017 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
AT190,CT190,ST191..JPP |
5 | ||
| 90942-02070 |
AT190,CT190,ST191..JPP |
5 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
AT190,CT190,ST191..JPP |
5 | ||
| 90942-02070 |
AT190,CT190,ST191..JPP |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-20017 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
AT190,CT190,ST191..JPP |
5 | ||
| 90942-02070 |
AT190,CT190,ST191..JPP |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
AT190,CT190,ST191..JPP |
5 | ||
| 90942-02070 |
AT190,CT190,ST191..JPP |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-20190 |
AT190,CT190,ST191..JPP..(GL,XL) |
2 | ||
| 42409A - BEARING SUB-ASSY, REAR AXLE, RH | ||||
| 42409-20010 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 42409B - BEARING SUB-ASSY, REAR AXLE, LH | ||||
| 42409-20010 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 42409C - BOLT (FOR REAR AXLE BEARING RH) | ||||
| 90105-10124 |
AT190,CT190,ST191..JPP |
4 | ||
| 42409D - BOLT (FOR REAR AXLE BEARING LH) | ||||
| 90105-10124 |
AT190,CT190,ST191..JPP |
4 | ||
| 42409E - RING, O (FOR REAR AXLE BEARING RH) | ||||
| 90301-63003 |
AT190,CT190,ST191..JPP |
1 | ||
| 42409F - RING, O (FOR REAR AXLE BEARING LH) | ||||
| 90301-63003 |
AT190,CT190,ST191..JPP |
1 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-20060 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-20060 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 42450 - HUB & BEARING ASSY, REAR AXLE | ||||
| 42450-20020 |
AT190,CT190,ST191..JPP |
2 | ||
