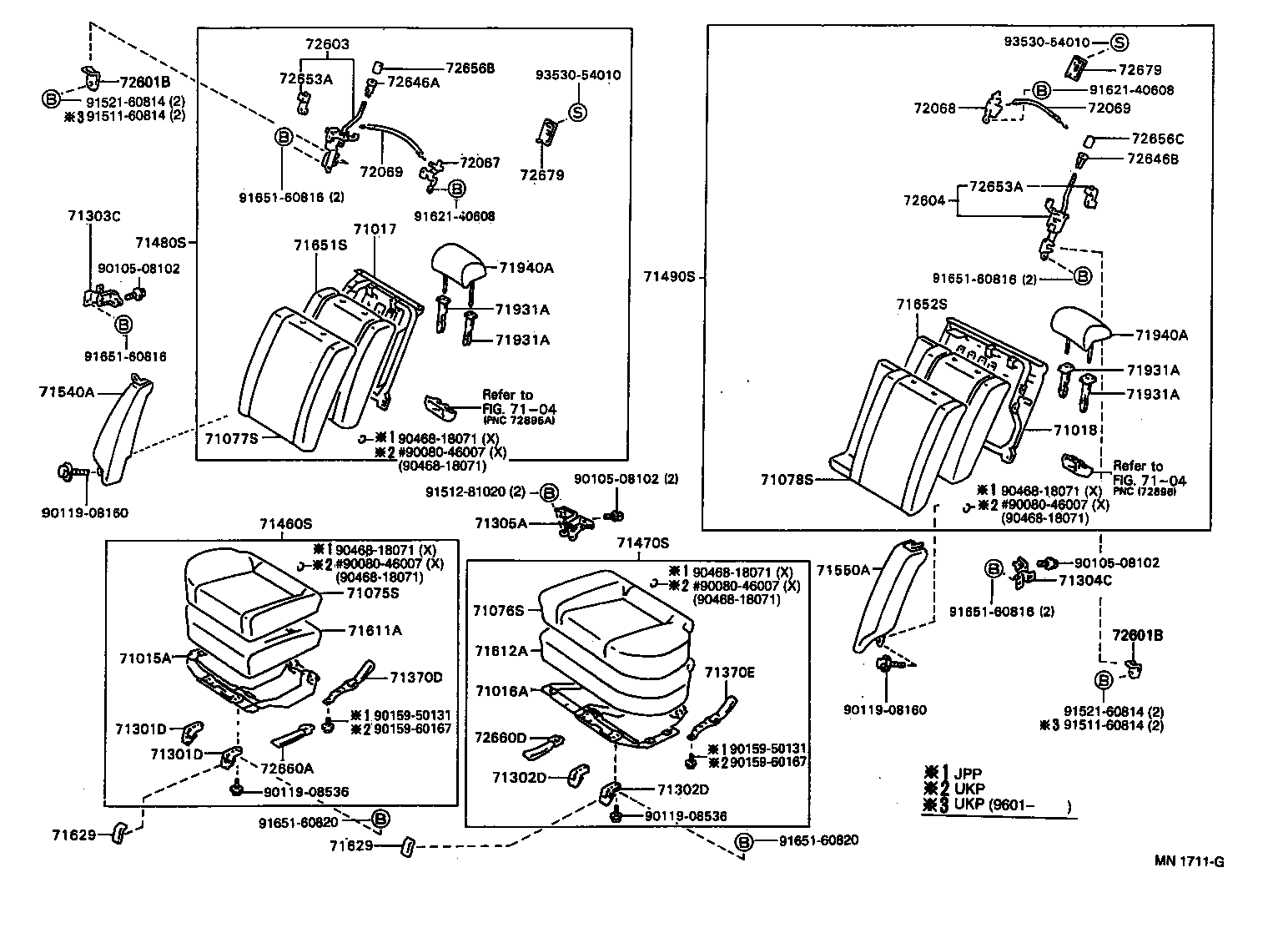

AT190R-ALMDKW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202- )JPP..LB..XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-20380 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-20050 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20490 |
AT190,CT190,ST191..JPP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20170 |
AT190,CT190..JPP..XL |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71065-2B040B0 |
AT190,CT190..JPP..LB..XL GRAY,TRIM2# |
1 | ||
| 71065-2B040J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71065-2B300J0 |
AT190,CT190..JPP..LB..XL DK. BLUE,TRIM8# |
1 | ||
| 71065-2B040J3 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-20060J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71076-20110J0 |
AT190,CT190..JPP..LB..XL DK. BLUE,TRIM8# |
1 | ||
| 71076-20060J3 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71076-20060B0 |
AT190,CT190..JPP..LB..XL GRAY,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2G040J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71077-2G040B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71077-2G190J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71077-2G040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2B040J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71078-2B160J0 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
1 | ||
| 71078-2B040B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
1 | ||
| 71078-2B040J2 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71302-20010 |
AT190,CT190,ST191..JPP..LB LH |
1 | ||
| 71301-20060 |
AT190,CT190,ST191..JPP..LB RH |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71302-20010 |
AT190,CT190,ST191..JPP..LB LH |
1 | ||
| 71301-20060 |
AT190,CT190,ST191..JPP..LB RH |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71301-20060 |
AT190,CT190,ST191..JPP..LB RH |
1 | ||
| 71302-20010 |
AT190,CT190,ST191..JPP..LB LH |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71301-20060 |
AT190,CT190,ST191..JPP..LB RH |
1 | ||
| 71302-20010 |
AT190,CT190,ST191..JPP..LB LH |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20150 |
AT190,CT190,ST191..JPP |
1 | ||
| 71370D - HOLDER ASSY, REAR SEAT CUSHION, RH | ||||
| 71370-20040C0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 71370-20050C0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 71370E - HOLDER ASSY, REAR SEAT CUSHION, LH | ||||
| 71370-20050C0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 71370-20040C0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71560-2B200J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71560-2B210J3 |
AT190..JPP..LB..XL SPRING CAMPAIGN,DK.BLUE,TRIM8# |
1 | ||
| 71560-2B200C0 |
AT190,CT190..JPP..LB..XL BLACK,TRIM2# |
1 | ||
| 71560-2B210C5 |
AT190..JPP..LB..XL SPRING CAMPAIGN,BLACK,TRIM2# |
1 | ||
| 71560-2B201B0 |
AT190,CT190..JPP..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B201J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-20040C5 |
AT190..JPP..LB..XL SPRING CAMPAIGN,BLACK,TRIM2# |
1 | ||
| 71470-20040J3 |
AT190..JPP..LB..XL SPRING CAMPAIGN,DK.BLUE,TRIM8# |
1 | ||
| 71470-20020C0 |
AT190,CT190..JPP..LB..XL BLACK,TRIM2# |
1 | ||
| 71470-20021B0 |
AT190,CT190..JPP..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71470-20021J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71470-20020J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2G410J2 |
AT190..JPP..LB..XL SPRING CAMPAIGN,DK.BLUE,TRIM8# |
1 | ||
| 71480-2G400C0 |
AT190,CT190..JPP..LB..XL BLACK,TRIM2# |
1 | ||
| 71480-2G400J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71480-2G410C4 |
AT190..JPP..LB..XL SPRING CAMPAIGN,BLACK,TRIM2# |
1 | ||
| 71480-2G401B0 |
AT190,CT190..JPP..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2G401J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2B300C0 |
AT190,CT190..JPP..LB..XL BLACK,TRIM2# |
1 | ||
| 71490-2B300J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71490-2B310J2 |
AT190..JPP..LB..XL SPRING CAMPAIGN,DK.BLUE,TRIM8# |
1 | ||
| 71490-2B310C4 |
AT190..JPP..LB..XL SPRING CAMPAIGN,BLACK,TRIM2# |
1 | ||
| 71490-2B301B0 |
AT190,CT190..JPP..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B301J0 |
AT190,CT190..JPP..LB..XL DK.BLUE,TRIM8# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-21010J1 |
AT190..JPP..LB..XL SPRING CAMPAIGN,DK.BLUE,TRIM8# |
1 | ||
| 71540-21010C8 |
AT190..JPP..LB..XL SPRING CAMPAIGN,BLACK,TRIM2# |
1 | ||
| 71540-20220C0 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71540-20220J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-21010C8 |
AT190..JPP..LB..XL SPRING CAMPAIGN,BLACK,TRIM2# |
1 | ||
| 71550-21010J1 |
AT190..JPP..LB..XL SPRING CAMPAIGN,DK.BLUE,TRIM8# |
1 | ||
| 71550-20220J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
1 | ||
| 71550-20220C0 |
AT190,CT190..JPP..XL BLACK,TRIM2# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-20560 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-20200 |
AT190,CT190,ST191..JPP..LB |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-20010J0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) DK.BLUE,TRIM8# |
4 | ||
| 71629-20010C0 |
AT190,CT190,ST191..JPP..LB BLACK,TRIM2# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-20010J0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) DK.BLUE,TRIM8# |
4 | ||
| 71629-20010C0 |
AT190,CT190,ST191..JPP..LB BLACK,TRIM2# |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20690 |
AT190,CT190,ST191..JPP |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20390 |
AT190,CT190..JPP..XL |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20270J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71940-20271J3 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20270B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
2 | ||
| 71940-20271B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20270J0 |
AT190,CT190..JPP..XL DK.BLUE,TRIM8# |
2 | ||
| 71940-20271J3 |
AT190,CT190..JPP..XL DK. BLUE,TRIM8# |
2 | ||
| 71940-20270B0 |
AT190,CT190..JPP..XL GRAY,TRIM2# |
2 | ||
| 71940-20271B2 |
AT190,CT190..JPP..XL SHADOW GRAY,TRIM1# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT190,CT190,ST191..JPP |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-16060 |
AT190,CT190,ST191..JPP |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-16060 |
AT190,CT190,ST191..JPP |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72646-20070J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72646-20070C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24010 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 69759-24020 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24010 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 69759-24020 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72661-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72661-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-20030C0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 72660D - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-20030C0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-16010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| 72679-16010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90105-08102 | ||||
| 90119-08160 | ||||
| 90119-08536 | ||||
| 90159-50131 | ||||
| 90159-60167 | ||||
| 90468-18071 | ||||
| 91511-60814 | ||||
| 91512-81020 | ||||
| 91521-60814 | ||||
| 91621-40608 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
