AT190R-ALMDKW (1992)
Toyota Carina E Sed/Lb(Jpp)

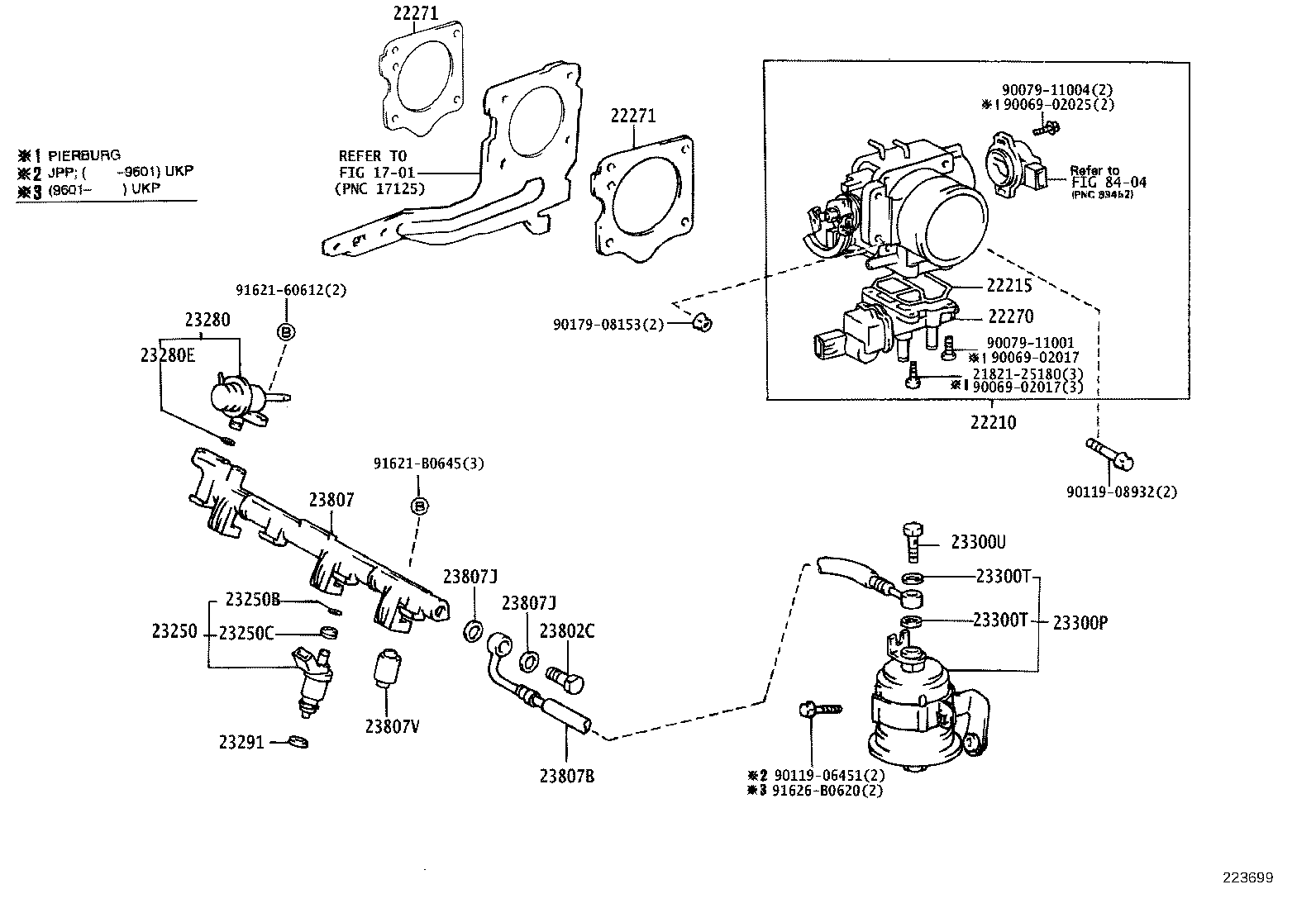

ILLUST NO. 1 OF 2(9202- )4AFE..JPP
LEAN BURN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16680 |
4AFE..AT190..JPP..RHD..MTM |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
4AFE..AT190..JPP |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-15010 |
4AFE..AT190..JPP |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-15020 |
4AFE..AT190..JPP |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-15020 |
4AFE..AT190..JPP |
2 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-16120 |
4AFE..AT190..JPP..RHD..MTM |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
4AFE..AT190..JPP |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
4AFE..AT190..JPP |
4 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-16120 |
4AFE..AT190..JPP..RHD..MTM |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
4AFE..AT190..JPP |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
4AFE..AT190..JPP |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19315 |
4AFE..AT190..JPP..RHD |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4AFE..AT190..JPP |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4AFE..AT190..JPP |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4AFE..AT190..JPP |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
4AFE..AT190..JPP |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-16120 |
4AFE..AT190..JPP..RHD..MTM |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-16160 |
4AFE..AT190..JPP..RHD..MTM |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
4AFE..AT190..JPP |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
4AFE..AT190..JPP |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-06014 |
4AFE..AT190..JPP..RHD..MTM |
3 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90069-02017 | ||||
| 90069-02025 | ||||
| 90079-11001 | ||||
| 90079-11004 | ||||
| 90119-06451 | ||||
| 90119-08932 | ||||
| 90179-08153 | ||||
| 91621-60612 | ||||
| 91621-B0645 | ||||
| 91626-B0620 | ||||
| Linked diagrams | ||||
| 1701 | ||||

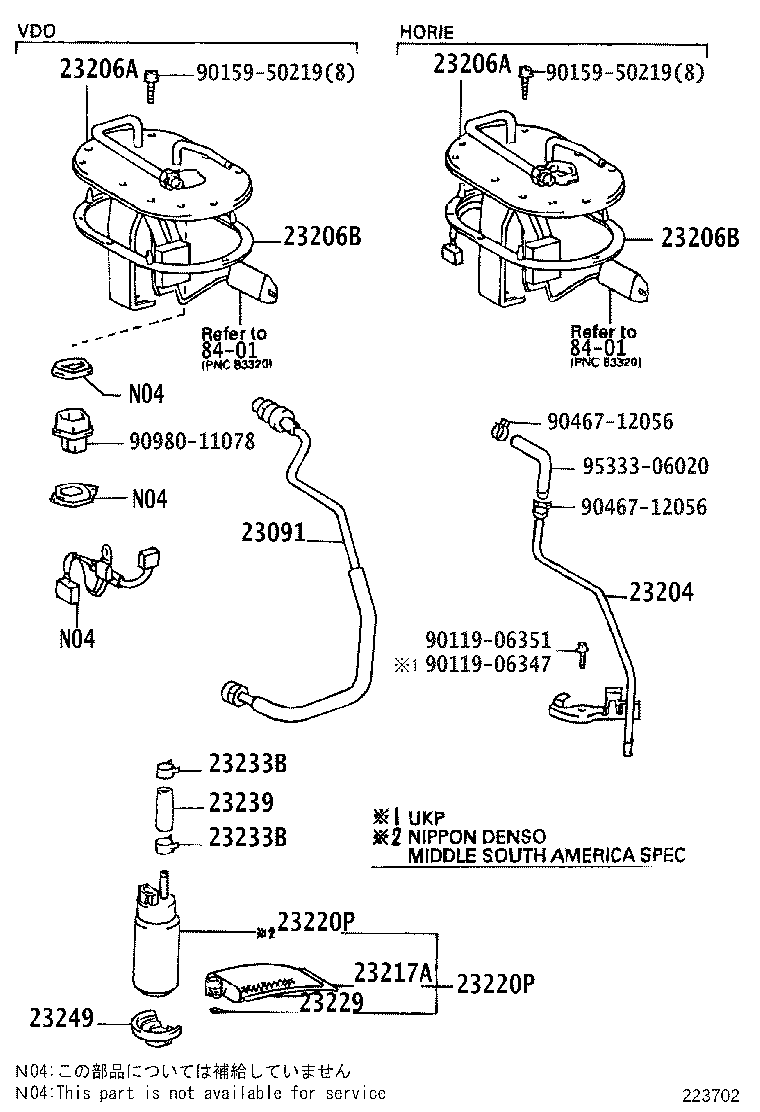

ILLUST NO. 2 OF 2(9202- )4AFE..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-74210 |
4AFE..AT190..JPP |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-74650 |
4AFE..AT190..JPP |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74660 |
4AFE..AT190..JPP |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74660 |
4AFE..AT190..JPP |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-60010 |
4AFE..AT190..JPP |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-60010 |
4AFE..AT190..JPP |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74030 |
4AFE..AT190..JPP NIPPONDENSO |
1 | ||
| 23217-46090 |
4AFE..AT190..JPP NIPPONDENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46010 |
4AFE..AT190..JPP NIPPONDENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46010 |
4AFE..AT190..JPP NIPPONDENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4AFE..AT190..JPP |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4AFE..AT190..JPP |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4AFE..AT190..JPP |
2 | ||
| 23239 - HOSE | ||||
| 23239-63010 |
4AFE..AT190..JPP |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
4AFE..AT190..JPP |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06351 | ||||
| 90159-50219 | ||||
| 90467-12056 | ||||
| 90980-11078 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
